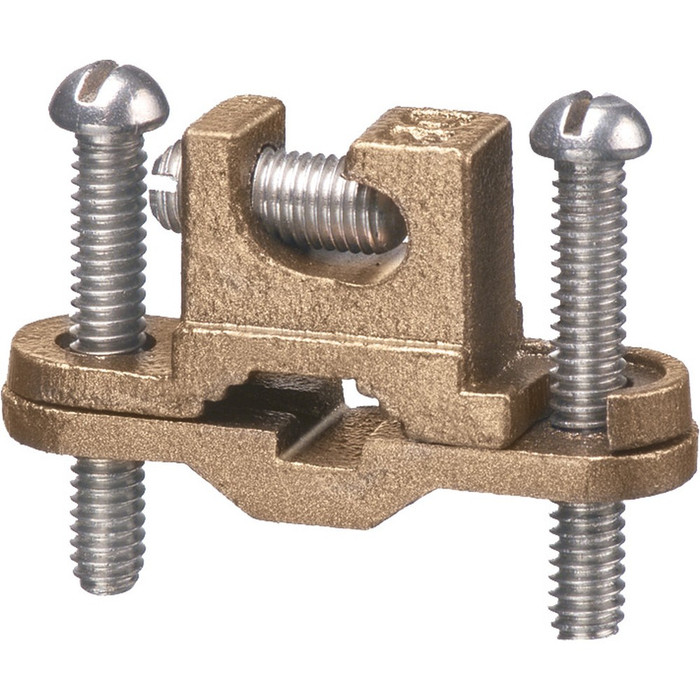

Arlington Industries 717DB Bare Wire Ground Clamp with Open Lug, Solid Bronze, 3/8" to 1" Pipe

Arlington Industries 717DB Bare Wire Ground Clamp with Open Lug, Solid Bronze, 3/8" to 1" Pipe

(No reviews yet) Write a Review

Model: 717DB

In Stock (leaves warehouse same day if ordered before 3pm ET)

$8.82
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Arlington Industries 717DB Bare Wire Ground Clamp with Open Lug, Solid Bronze, 3/8" to 1" Pipe

The Arlington Industries 717DB is a solid bronze bare wire ground clamp with an open lug, designed to create a secure, corrosion-resistant grounding connection between a bare copper grounding conductor and metallic pipe or conduit. Manufactured from solid bronze and secured with stainless steel screws, the 717DB fits pipe diameters from 3/8" to 1" and accepts bare wire in the 10-2 AWG range, giving electricians flexibility when sizing grounding conductors on the job. This rugged, open-lug clamp is built for dependable long-term performance in demanding electrical grounding applications.

Key Features

  • Pipe Range: Fits pipe diameters from 3/8" to 1", providing broad compatibility across common pipe and conduit sizes.
  • Durable Construction: Solid bronze body resists corrosion, making it well-suited for demanding indoor and outdoor grounding installations.
  • Stainless Steel Screws: Corrosion-resistant stainless steel screws firmly secure the grounding conductor to the clamp.
  • Open Lug Design: The open lug accepts bare wire ranging from 10 AWG to 2 AWG, accommodating a wide range of grounding conductor sizes.
  • Bare Wire Ground Clamp: Purpose-built to attach a bare copper grounding conductor to metallic pipe for a solid, code-driven grounding path.
  • Solid Bronze Body: Bronze construction delivers long-term durability and resistance to moisture and corrosion over the life of the installation.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Typical Applications

  • Grounding Conductor Connections to Metallic Pipe or Conduit
  • Electrical Service Entrance Grounding
  • Panelboard and Equipment Grounding Systems
  • Commercial and Residential Electrical Installations
  • Water Pipe and Gas Pipe Grounding Applications

Why Arlington Industries?

Arlington Industries builds the 717DB ground clamp from solid bronze with stainless steel hardware, combining strength and corrosion resistance in a single reliable grounding fitting. The open lug design and 3/8" to 1" pipe range give electrical professionals a versatile, dependable option for securing bare grounding conductors, while the durable materials help ensure long-lasting, code-compliant grounding connections in both new construction and retrofit work.

Manufacturer Resources

Product Specs

list_batch:
ARL-20260918
Product Type:
Ground Clamp
Configuration:
Open Lug
Department:
Electrical
Product Group:
Grounding & Bonding
Product Subgroup:
Grounding & Bonding
Product Material:
Solid Bronze
Product Size:
1/2"
Product Width:
2.23 in
Product Height:
1.5 in
Product Color:
Bronze
Wire Size:
10-2

Arlington Industries 717DB – Frequently Asked Questions

1) What size bare copper grounding conductor does the 717DB accept?
The open lug takes bare wire from 10 AWG through 2 AWG. That range covers the usual grounding electrode conductor sizes an electrician pulls for residential and light commercial service work, so you can size the conductor to the service and still land it in the same clamp.
2) Is a bronze ground clamp OK for a buried or outdoor grounding connection?
The 717DB body is solid bronze and the screws are stainless steel, which is the combination used for damp and outdoor grounding connections because neither part sacrifices itself to corrosion at the joint. Zinc or steel clamps in the same spot lose the connection over time.
3) Can I use the 717DB with insulated or stranded THHN grounding wire?
It is built as a bare wire clamp with an open lug, intended for a bare copper grounding conductor against the pipe. If you are landing insulated conductor, strip it back so bare copper sits in the lug, or choose a clamp specified for insulated wire instead.
4) What does open lug mean on a ground clamp, and when would I want the closed type?
Open lug means the conductor drops into an open channel and is clamped down by the screw, so you can land a wire that is already terminated at the far end without threading it through. A closed or tubular lug requires feeding the wire end through the body, which is fine on new work but awkward on a retrofit where both ends are fixed. The 717DB is the open type.
5) Can one 717DB clamp be used for bonding both water pipe and gas pipe on the same job?
Yes, the clamp is used for grounding conductor connections to metallic pipe or conduit, including water pipe and gas pipe bonding, service entrance grounding, and panelboard or equipment grounding. Each connection needs its own clamp, so count one per bonding point when you order.
