Thomas & Betts 302-TB Armored Cable/Flexible Metal Conduit Fittings

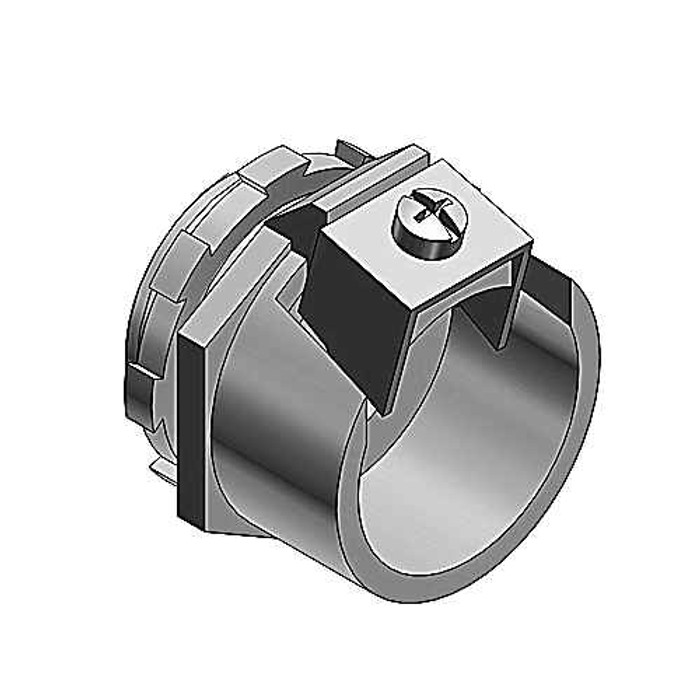

Thomas & Betts Steel Armored Cable Connector 1/8 Inch Straight External Thread with Zinc Plating

(No reviews yet) Write a Review

Model: 302-TB
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$58.99
$7.07
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Thomas & Betts Steel Armored Cable Connector 1/8 Inch Straight External Thread with Zinc Plating

Professional Armored Cable & Flexible Metal Conduit Connection Solution

Thomas & Betts delivers reliable electrical connection performance with this steel armored cable connector featuring 1/8 inch nominal size and straight external thread construction. Designed for use with armored cable and flexible metal conduit, this connector provides secure metallic housing connection with electro zinc plated finish for enhanced corrosion resistance and professional durability in electrical installations.

Professional Features & Benefits

  • Steel Construction: Provides robust mechanical strength and long-lasting performance in demanding electrical applications
  • 1/8 Inch Nominal Size: Accommodates conductor range of 0.670 to 0.920 inch for versatile cable compatibility
  • Straight External Thread Design: Ensures secure mechanical connection and easy installation in standard electrical enclosures
  • Electro Zinc Plated Finish: Delivers superior corrosion protection and maintains electrical conductivity over time
  • UL Listed Standard E23018: Meets rigorous safety and performance requirements for professional electrical installations
  • Metallic Housing Connection: Provides reliable grounding path and electromagnetic shielding for system integrity

Technical Specifications

  • Color: Metallic
  • Conductor Range: 0.670 to 0.920 Inch
  • Connection: Straight
  • Connection Type Screw Connection To Housing: Other
  • Construction Type: External thread
  • Department: Electrical
  • Etim: EC001180 Screw connection for protective metallic hose
  • Inner Dimensions Inches: 4x5x8
  • Inner Quantity: 50
  • Insulation: No
  • Material: Steel
  • Material Housing: Steel
  • Nominal Size In Inch: 1/8 inch
  • Outer Dimensions Inches: 9.7x7.1x10.3
  • Outer Quantity: 100
  • Product Details: Armored Cable/Flexible Metal Conduit Fittings
  • Product Finish: Electro Zinc Plated
  • Product Group: Conduit & Fittings
  • Product Model: Straight
  • Product Subgroup: Electrical Fittings
  • Product Type: Armored Cable/Flexible Metal Conduit Fittings
  • Revolving Thread: N
  • Standard: UL E23018
  • Surface Protection: Zinc coated
  • Unspsc: 39121419 Flex connectors
  • Weight Uom: 12 lbs. per 100

Professional Applications

  • Commercial Building Electrical Systems
  • Industrial Facility Wiring
  • Residential Electrical Installations
  • Data Center Infrastructure
  • Healthcare Facility Electrical
  • Educational Institution Wiring
  • Manufacturing Plant Electrical

Why Choose Thomas & Betts Quality?

Thomas & Betts armored cable connectors deliver proven reliability through UL listed construction and professional-grade steel materials with zinc coating protection. The straight external thread design ensures consistent performance and secure connections in critical electrical applications, backed by decades of electrical industry expertise and commitment to safety standards.

Manufacturer Resources

Spec Sheet

Product Specs

Wire Size:
0.670 to 0.920 Inch
Connection:
Straight
Connection Type Screw Connection To Housing:
Other
Construction Type:
External thread
Etim:
EC001180 Screw connection for protective metallic hose
Inner Dimensions Inches:
4x5x8
Inner Quantity:
50
Insulation:
No
Material Housing:
Steel
Nominal Size In Inch:
1/8 inch
Outer Dimensions Inches:
9.7x7.1x10.3
Outer Quantity:
100
Product Group:
Conduit & Raceway
Revolving Thread:
N
Standards:
UL E23018
Surface Protection:
Zinc coated
Unspsc:
39121419 Flex connectors
Weight Uom:
12 lbs. per 100
Department:
Electrical
Product Subgroup:
Flexible Conduit & Fittings
Product Type:
AC/MC/Flex Connector
Product Model:
Straight
Product Finish:
Electro Zinc Plated
Product Details:
Armored Cable/Flexible Metal Conduit Fittings
Product Color:
Metallic
Product Material:
Steel

Thomas & Betts 302-TB – Frequently Asked Questions

1) How does the 302-TB attach to the box, threaded or snap-in?
It is an external thread design, so the body threads through the knockout and is secured with a locknut on the inside of the enclosure. That differs from a snap-in style such as the Arlington SNAP2IT 380ST, which pushes into the knockout and locks with no locknut. If your hand cannot get inside the box to run a locknut, the snap-in type is the easier install.
2) Does the 302-TB connector include an insulated throat?
No. The 302-TB is a non-insulated fitting. If your spec or inspector calls for an anti-short bushing or an insulated throat on MC terminations, you will need to add a red head bushing or select an insulated-throat connector.
3) What is a snap-in alternative to the Thomas & Betts 302-TB armored cable connector?
The Thomas & Betts 302-TB is a straight steel connector with an external thread body that screws into the enclosure. If you want a snap-in style instead of a threaded one, the Arlington Industries 380ST SNAP2IT is a snap-in MC/AC cable connector for 3/8 inch cable, sold in packs of 100. The 302-TB uses the threaded external-thread construction with a zinc coated steel housing, so it secures with a locknut-style threaded connection rather than snapping into the knockout.
4) Will a steel AC/MC connector hold up in a damp or unheated space?
The body is steel with an electro zinc plated finish for corrosion protection. Zinc plated steel is intended for dry and indoor locations and general commercial interiors; it is not a substitute for a fitting rated for wet or corrosive environments.
5) Does this connector provide a ground path for MC cable?
The fitting is all steel and clamps the metallic armor, so it maintains the metal-to-metal continuity between the cable armor and the enclosure. It is a screw connection for protective metallic hose, used on armored cable and flexible metal conduit.
6) Difference between the Arlington 380ST and 407AST if I am cross-shopping against the 302-TB?
Both Arlington parts are SNAP2IT series cable connectors. The 380ST is listed as a snap-in MC/AC connector at 3/8 inch, while the 407AST is listed for a 3/4 inch knockout with 3/8 inch cable. The Thomas & Betts 302-TB sits apart from both in how it mounts: it is a straight external-thread steel connector with an electro zinc plated finish, accepting cable from 0.670 to 0.920 inch.
7) How many Thomas & Betts 302-TB connectors come in a box?
Packaging runs 50 pieces to the inner carton and 100 to the outer, with the outer weighing 12 lbs per 100 pieces. That is the figure to use when you are estimating a shipment for a rough-in package.
8) For a large MRO buy, which of these connectors ships in bulk quantities?
The Thomas & Betts 302-TB is packed 50 per inner carton and 100 per outer, at 12 lbs per 100 pieces. The Arlington Industries 380ST and 407AST SNAP2IT connectors are each described as packs of 100, so all three support standardizing on hundred-count quantities for a facility or a multi-building rough-in.
