Thomas & Betts 90-Degree Liquid Tight Connector 1/2 Inch Thermoplastic External Thread
Model: TB-LT950P
Thomas & Betts 90-Degree Liquid Tight Connector 1/2 Inch Thermoplastic External ThreadProfessional Liquid Tight Conduit Connection SolutionThomas & Betts delivers reliable conduit connection...
Thomas & Betts
$76.47
$37.20

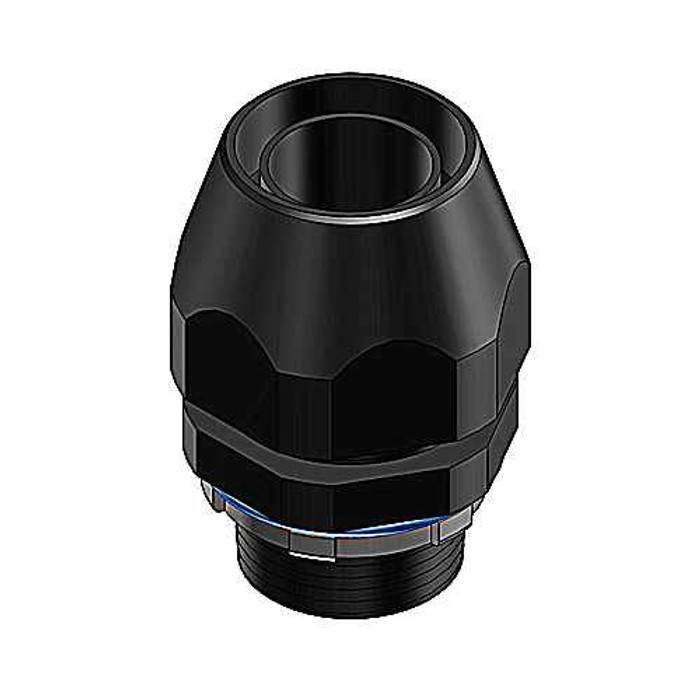

Thomas & Betts 1/2 Inch Liquid Tight Conduit Connector - Straight Thermoplastic with External Thread
Professional Liquid Tight Conduit Connection Solution
Thomas & Betts delivers reliable conduit connection performance with this 1/2 inch liquid tight connector featuring straight thermoplastic construction and external thread design. The bullet-straight configuration provides secure conduit-to-fitting connections with enhanced sealing capabilities, suitable for hazardous locations including Class I Div 2, Class II Div 1 & 2, Groups E, F, G, and Class III applications per N.E.C. Article 501-4, 502-4 and 503-3.
Professional Features & Benefits
- 1/2 Inch Nominal Size: Standard sizing ensures compatibility with common conduit applications and system requirements.
- Thermoplastic Construction: Durable material provides long-lasting performance and resistance to environmental conditions.
- External Thread Design: Secure threading mechanism ensures reliable mechanical connection and proper sealing.
- Smooth Ferrule Profile: Reduces friction during installation to ensure tight conduit-to-fitting seal and enhanced performance.
- Hazardous Location Rated: UL E23018 and CSA certified for Class I, II, and III hazardous environments with multiple group classifications.
- Enhanced Clamping Action: Inner surface teeth bite into conduit or tubing to improve clamping and sealing effectiveness.
- Friction Reducing Design: Outside surface ridges minimize installation effort while maintaining secure connection integrity.
Technical Specifications
- Colour: Black
- Construction Type: External thread
- Department: Electrical
- Etim: EC001178 Screw connection for protective plastic hose
- Inner Dimensions Inches: 8x5x4
- Inner Quantity: 20
- Material: Thermoplastic
- Material Screw Gland: Other
- Material Sealing: Other
- Nominal Size In Inch: 1/2 inch
- Outer Dimensions Inches: 26.5x6.25x5.25
- Outer Quantity: 100
- Product Details: Bullet-Straight
- Product Group: Connectors
- Product Model: Straight
- Product Subgroup: Electrical Connectors
- Product Type: Bullet-Straight
- Revolving Thread: N
- Standard: UL E23018, CSA
- Thread Connection Size: Other
- Thread Length: 14.48mm
- Type Of Connection: Thread
- Unspsc: 39121420 Liquid tight connectors
- Weight Uom: 7.5 lbs. per 100
Professional Applications
- Hazardous Location Installations
- Industrial Electrical Systems
- Commercial Conduit Connections
- Liquid Tight Conduit Runs
- Class I, II, and III Environments
- Professional Electrical Contracting
- Maintenance and Repair Operations
Why Choose Thomas & Betts Quality?
Thomas & Betts liquid tight connectors deliver proven reliability with UL E23018 and CSA certifications, ensuring compliance with hazardous location requirements. The thermoplastic construction and precision-engineered ferrule design provide long-term durability and consistent sealing performance for professional electrical installations.
Manufacturer Resources
Spec Sheet
Product Specs
- Colour:
- Black
- Construction Type:
- External thread
- Etim:
- EC001178 Screw connection for protective plastic hose
- Inner Dimensions Inches:
- 8x5x4
- Inner Quantity:
- 20
- Material Screw Gland:
- Other
- Material Sealing:
- Other
- Nominal Size In Inch:
- 1/2 inch
- Outer Dimensions Inches:
- 26.5x6.25x5.25
- Outer Quantity:
- 100
- Product Group:
- Conduit & Raceway
- Revolving Thread:
- N
- Standards:
- UL E23018, CSA
- Thread Connection Size:
- Other
- Thread Length:
- 14.48mm
- Unspsc:
- 39121420 Liquid tight connectors
- Weight Uom:
- 7.5 lbs. per 100
- Department:
- Electrical
- Product Subgroup:
- Liquidtight Conduit & Fittings
- Product Type:
- Straight Liquidtight Connector
- Product Model:
- Straight
- Product Details:
- Bullet-Straight
- Product Material:
- Thermoplastic
- Type Of Connection (Specs):
- Thread
Thomas & Betts LT50P – Frequently Asked Questions
1) Is the Thomas & Betts LT50P liquidtight connector approved for hazardous locations?
The LT50P carries UL E23018 and CSA listings, and the product data states it is suitable for Class I Div 2, Class II Div 1 and 2, Groups E, F, G, and Class III locations per N.E.C. Articles 501-4, 502-4 and 503-3. That covers most industrial dust and limited-gas areas, but note it is Division 2 only on Class I gas locations, not Div 1.
2) What size conduit does the LT50P connector take?
It is a 1/2 inch trade size straight liquidtight connector, so it mates to 1/2 inch liquidtight flexible conduit and lands in a 1/2 inch knockout with its external male thread.
3) Can a Bridgeport Mighty-Seal 597-DC2 be used in place of the Thomas & Betts LT50P liquid tight connector?
No - they terminate different wiring methods. The LT50P is a straight liquidtight connector for 1/2 inch liquid tight flexible conduit, with a threaded connection and thermoplastic body. The Bridgeport 597-DC2 is a Mighty-Seal 3/4 inch PVC-jacketed MC/TECK cable connector in zinc, intended for jacketed cable rather than flexible conduit, and it is a 3/4 inch trade size rather than 1/2 inch. If your run is liquidtight flexible conduit entering a 1/2 inch knockout, the LT50P is the correct fitting; if you are landing PVC-jacketed MC or TECK cable, the 597-DC2 is the cable connector for that job.
4) Is the Thomas & Betts LT50P metal or plastic?
Thermoplastic, in black. That makes it non-conductive, so where the raceway is relied on for an equipment grounding path you still need to pull a separate ground conductor. Thermoplastic also suits corrosive or washdown areas where a plated steel fitting would rust.
5) How does the LT50P grip and seal the liquidtight conduit?
The ferrule has teeth on the inner surface that bite into the conduit or tubing to improve clamping and sealing, with ridges on the outside face that cut friction so the gland draws up with less effort. The smooth ferrule profile is what lets it pull a tight conduit-to-fitting seal without chewing the jacket.
6) How many Thomas & Betts LT50P connectors come in a box?
They pack 20 to an inner carton and 100 to the outer master carton. The inner carton measures 8x5x4 inches and the master 26.5x6.25x5.25 inches, with the master running 7.5 lbs per 100 pieces.
7) Does the LT50P have a swivel or fixed thread?
Fixed. Revolving thread is specified as N, so the male hub does not rotate independently of the body. Plan the install so you can turn the whole fitting into the knockout, or set the conduit after the connector is locked to the box.
