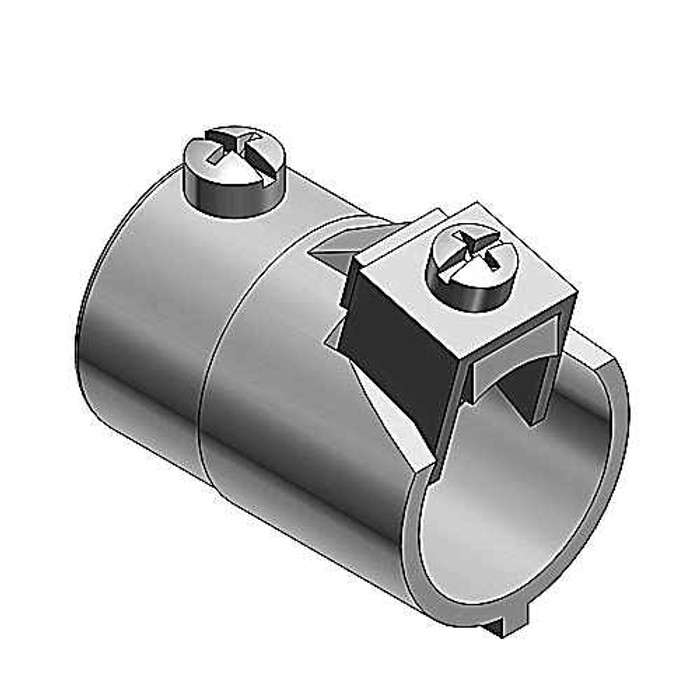

Thomas & Betts 503-TB Armored Cable/Flexible Metal Conduit Fittings

Thomas & Betts 503-TB Armored Cable/Flexible Metal Conduit Fittings, 100 Pack

(No reviews yet) Write a Review

Model: 503-TB
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,909.04
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Armored Cable/Flexible Metal Conduit Fittings

  • Features

    • To couple 1/2 inch flexible metal conduit to 1/2 inch EMT conduit.


503-TB - spec sheet

Manufacturer Resources

Spec Sheet

Product Specs

Etim:
EC000939 Coupler for installation tubes
Inner Dimensions Inches:
4.3x6.5x4.19
Inner Quantity:
10
Material Quality:
Other
Outer Dimensions Inches:
21.5x8.5x3.5
Outer Quantity:
100
Product Group:
Conduit & Raceway
Standards:
UL E23018, CSA
Surface Protection:
Other
Two Piece:
N
Unspsc:
39121434 Electrical metallic tubing EMT connectors
Weight Uom:
23 lbs. per 100
With Inspection Opening And Cover:
N
Department:
Electrical
Product Subgroup:
Flexible Conduit & Fittings
Product Type:
AC/MC/Flex Connector
Product Model:
Conical
Product Finish:
Zinc Plated-Chromate Dipped
Product Details:
Armored Cable/Flexible Metal Conduit Fittings
Product Material:
Metal
Pack size (unit):
100

Thomas & Betts 503-TB – Frequently Asked Questions

1) What does the Thomas & Betts 503-TB coupling actually connect?
The 503-TB is a combination coupling that joins 1/2 inch flexible metal conduit to 1/2 inch EMT. One end takes the flex or armored cable, the other takes the EMT, so you can transition from rigid tubing to flex at a motor, light fixture, or equipment drop without a box.
2) Snap-in MC connector or a flex-to-EMT coupling like the 503-TB, which do I need?
They solve different problems. The 503-TB couples a run of 1/2 inch EMT directly to 1/2 inch flexible metal conduit, no box involved. A snap-in connector like the Arlington SNAP2IT 380ST terminates MC or AC cable into a knockout in a box or enclosure. If your transition happens mid-run between tubing and flex, use the coupling; if the cable lands in a box, use the connector.
3) What is the difference between the Thomas & Betts 503-TB and the Arlington 380ST SNAP2IT connector?
They do two different jobs. The 503-TB is a coupling that joins 1/2 inch flexible metal conduit to 1/2 inch EMT conduit, so it is a conduit-to-conduit transition rather than a box fitting. The Arlington 380ST is a SNAP2IT snap-in MC/AC cable connector sized for 3/8 inch cable, which terminates armored cable into an enclosure knockout. If the run has to continue from flex into EMT, the 503-TB is the piece; if the cable is landing in a panel or box, the snap-in connector is the one that fits.
4) I need to land 3/8 inch MC cable into a 3/4 inch knockout - will the 503-TB work?
No. The 503-TB is built to couple 1/2 inch flexible metal conduit to 1/2 inch EMT and has no knockout termination role. For 3/8 inch MC cable going into a 3/4 inch knockout, the Arlington 407AST SNAP2IT MC cable connector is the item designed for that combination.
5) Is the Thomas & Betts 503-TB UL listed for inspection?
It carries UL file E23018 and is CSA certified, which is what an inspector or a spec writer on an institutional job will be looking for on a flex-to-EMT coupling.
6) Is the 503-TB coupling corrosion protected enough for a damp mechanical room?
The body is metal with a zinc plated, chromate dipped finish, which is the standard corrosion coating for indoor and damp-location steel conduit fittings. It is not a raintight or wet-location fitting, so for direct weather exposure use a fitting rated for that service.
7) How many 503-TB couplings come in a box, and how are they packed?
You get 100 pieces, packed as ten inner cartons of 10. The master carton measures 21.5 x 8.5 x 3.5 inches and the full 100 weighs 23 lbs.
8) Is the 503-TB a one-piece fitting or does it come apart?
One piece. It is not a two-piece assembly and has no inspection opening or cover, so there is nothing to lose on the ladder and no separate gland to assemble before you install it.
