Arrow 16-113A Cylinder Collar ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$25.73

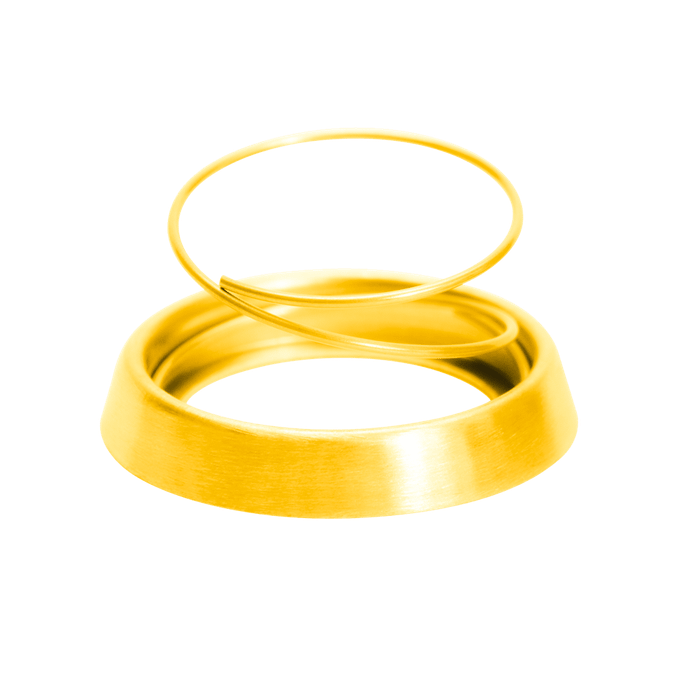

Arrow 16-113A Cylinder Collar and Spring Replacement Part in Bright Brass

Arrow 16-113A Cylinder Collar and Spring Replacement Part in Bright Brass

(No reviews yet) Write a Review

Model: 16-113A 26D

In Stock (leaves warehouse same day if ordered before 3pm ET)

$25.73
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Arrow 16-113A Cylinder Collar and Spring Replacement Part in Bright Brass

The Arrow 16-113A is a genuine manufacturer replacement Cylinder Collar and Spring finished in Bright Brass, designed for use with compatible Arrow commercial mechanical lock cylinders. This replacement part is engineered to restore proper cylinder retention and spring-return function to Arrow locking hardware, maintaining the performance and finish integrity of the original installation. Ideal for commercial applications where Arrow lock cylinders require component-level servicing or refurbishment.

Key Features

  • Genuine Arrow Replacement Part: OEM-quality component sourced directly from Arrow, ensuring fit and function compatibility with Arrow cylinder assemblies.
  • Bright Brass Finish: Matching Bright Brass finish preserves the aesthetic continuity of the original hardware installation.
  • Cylinder Collar Included: Provides the collar component necessary for proper cylinder seating and retention within the lock body.
  • Spring Component Included: Restores correct spring-return action to the cylinder assembly for reliable, smooth operation.
  • Commercial-Grade Application: Designed for commercial mechanical lock hardware, supporting demanding usage environments where dependable lock function is critical.
  • Targeted Repair Solution: Enables component-level repair without full lock replacement, reducing maintenance costs and downtime.

Technical Specifications

  • Department: Door Hardware
  • Product Category: Mechanical Locks
  • Product Group: Parts and Accessories
  • Subcategory: Parts and Accessories
  • Product Subgroup: Parts and Accessories
  • Product Type: Cylinders
  • Parts and Accessories Type: Replacement Parts
  • Commercial/Residential: Commercial
  • Product Model: 16-113A
  • Features: Arrow Parts

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Arrow 16-113A?

Arrow has long been a trusted name in commercial door hardware, and the 16-113A Cylinder Collar and Spring exemplifies the brand's commitment to precise, purpose-built replacement components. By offering component-level parts in matching finishes, Arrow enables facility managers and locksmiths to maintain lock system integrity efficiently. This part is engineered to meet the same standards as the original Arrow hardware it supports, making it the reliable choice for professional servicing of Arrow cylinder assemblies.

Manufacturer Resources

Product Specs

Department:
Door Hardware
Product Category:
Mechanical Locks
Product Group:
Parts and Accessories
Subcategory:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
Cylinders
Parts and Accessories Type:
Replacement Parts
Commercial/Residential:
Commercial
Product Model:
16-113A
Features:
Arrow Parts

Arrow 16-113A 26D – Frequently Asked Questions

1) What exactly comes in the Arrow 16-113A cylinder collar and spring part?
The Arrow 16-113A is a two-piece service part: the cylinder collar that seats and retains the cylinder in the lock body, plus the spring that restores the cylinder's spring-return action. It is a genuine Arrow replacement component, so it is sold to repair an existing Arrow cylinder assembly, not as a complete cylinder. If you need the keyed cylinder itself, order that separately.
2) My Arrow cylinder turns but doesn't spring back. Is the collar and spring kit the fix?
That is the symptom this part addresses. The 16-113A restores cylinder retention and spring-return function to an Arrow lock, which lets you repair at the component level instead of pulling and replacing the whole lock. If the key won't turn or the plug is worn, the problem is in the cylinder itself and a collar and spring won't correct it.
3) Can a Kaba Ilco 1539 or 1599 cylinder be used instead of the Arrow 16-113A?
No, they solve different problems. The Arrow 16-113A is a cylinder collar and spring - a replacement part that restores cylinder seating, retention, and spring-return action inside an Arrow lock body, sold in six finishes including 605 Bright Brass and 626 Satin Chrome. The Kaba Ilco 1539 Series is a key-in-knob / lever universal cylinder and the 1599 Series is a key-in-knob replacement cylinder; both are the keyed cylinder itself. If the cylinder in the Arrow lock is worn or needs rekeying, a replacement cylinder is the right item. If the cylinder is fine but will not sit or spring back correctly, the collar and spring is what is needed.
4) What replaces the whole cylinder in an Arrow interconnected lock rather than just the collar?
The Medeco 1065140 is a 5-pin retrofit cylinder listed for the Arrow JL interconnected lock, as well as Emtek handleset and deadbolt outside cylinder use. That is the part to order when the cylinder body itself is being changed out or upgraded. The Arrow 16-113A covers only the collar and spring that retain the cylinder and return it, offered in finishes from 605 Bright Brass through 613 Satin Bronze Oil-Rubbed - it does not include a keyed cylinder.
5) What finishes does the Arrow 16-113A cylinder collar come in?
Six finishes: 605 bright brass, 606 satin brass, 612 satin bronze, 613 satin bronze oil-rubbed, 625 bright chrome and 626 satin chrome. Match the collar finish to the lock it is going into, since the collar sits on the outside face of the door where the mismatch shows.
6) If my Arrow cylinder itself is bad, what replacement cylinder works with an Arrow lock?
A collar and spring kit won't help a failed cylinder. For an Arrow JL interconnected lock, the Medeco 1065140 is a 5-pin retrofit cylinder built for that application. Note that is a retrofit cylinder and not an Arrow OEM part, so keying and keyway will be Medeco.
7) Is a cylinder collar the same thing as a mortise cylinder?
No, and this is the most common mix-up on this part. The 16-113A is the retaining collar and spring that sit around the cylinder. A mortise cylinder is the keyed lock barrel itself, like the Corbin Russwin 1000 Grade 1 mortise cylinder at 1-1/2 inch length with an A02 straight cam. If you need something keyed, you want a cylinder; if you need the trim ring and spring that hold it in place, you want the 16-113A.
8) If I am standardizing a facility on interchangeable core instead of servicing Arrow cylinders, what should I look at?
Interchangeable core moves the keying into a removable core rather than the cylinder body. BEST offers the 1CB 150 Series interchangeable core cylinder and the 1CDF, a drill-resistant patented interchangeable core 7-pin brass 150 Series core; Schlage offers the 20-057 6-pin FSIC rim cylinder with convertible tailpiece cam and the 20-057-C full size interchangeable core in C keyway, 643E Aged Bronze. Those are a system change. The Arrow 16-113A keeps the existing Arrow mechanical lock cylinder assembly in service by replacing the collar and spring in a matching finish.
9) Is the Arrow 16-113A the same kind of part as an Adams Rite 4024 or 4025 cylinder pull?
No. The Adams Rite 4024 is a cylinder pull with trim plate mounting and the 4025 is a five pin tumbler cylinder pull with through-screws, both designed for use with the Adams Rite MS1847 deadlock/deadlatch - they are pull hardware that carries a cylinder on a narrow stile door. The Arrow 16-113A is an internal collar and spring that seats and retains a cylinder within an Arrow commercial lock body. For a wood door application, Adams Rite lists the 4026 five pin tumbler cylinder pull for the 5017 wood door deadlock/deadlatch.
10) I need a Grade 1 mortise cylinder, not a collar - what are the options?
For a mortise prep, the Adams Rite 4036 is a Grade 1 five-pin mortise cylinder with a 1/2 inch minimum door thickness, and Corbin Russwin offers the 1000 Grade 1 Series mortise cylinder at 1-1/2 inch with an A02 straight cam, the 1070 Grade 1 Series 1-1/4 inch 6-pin mortise housing with A01 cloverleaf cam, and the 1080 Grade 1 Series 1-1/2 inch LFIC 6-pin mortise cylinder with an A01 Schlage L cam for Schlage L9000 mortise locks. Cam style is the deciding detail. The Arrow 16-113A is a collar and spring service part for Arrow cylinder assemblies and does not fill a mortise cylinder requirement.
11) Which cylinder do I order for a Sargent lock, and does the Arrow collar work with it?
For Sargent knob and lever prep, Kaba Ilco lists the 1579 Series knob and lever cylinder specifically for Sargent. The Arrow 16-113A collar and spring is made for Arrow commercial mechanical lock cylinders and matches Arrow hardware finishes; it is not a cross-brand trim part and should not be specified into a Sargent assembly.
12) Is the 16-113A rated for commercial door traffic, or is it a residential part?
It is a commercial door hardware component, intended for Arrow commercial mechanical lock hardware in offices, schools, healthcare, retail, warehouse, multi-tenant residential and government buildings. Facility maintenance teams stock it to keep existing Arrow openings in service.
13) I manage a building with mixed lock finishes. Do I have to order one collar finish at a time?
You order by finish, so each opening gets the collar that matches its lock. Across a mixed property you can cover most existing Arrow hardware from the six available options: bright and satin brass, satin bronze and oil-rubbed satin bronze, and bright and satin chrome. Buying a few of each common finish is the usual way maintenance shops keep a service kit on the truck.
14) What is the equivalent part for a rim cylinder application?
Rim cylinders mount on the inside face of the door and drive a rim device through a tailpiece rather than seating in a lock body behind a collar. Schlage lists the 20-021 6-pin rim cylinder with a vertical tailpiece cam and the 20-022 with a horizontal tailpiece cam, and Corbin Russwin lists the 3070 6-pin rim cylinder housing with a 1-7/8 inch tailpiece. The Arrow 16-113A collar and spring is a component of an Arrow mechanical lock cylinder assembly and has no role in a rim installation.
15) For a keyed deadbolt replacement cylinder, what should I use instead?
Kaba Ilco lists the 1549 Series key-in-deadbolt cylinder, with deadbolt given as its product function, and Medeco offers rim type lazy motion single cylinders for handlesets and deadbolts including the 1075127 5-pin and the 1012040 6-pin lazy motion rim cylinder for Kwikset single cylinder deadbolts. The Arrow 16-113A is the collar and spring that retain a cylinder in an Arrow lock, supplied in six finishes including 612 Satin Bronze and 625 Bright Chrome, so it is a companion to a cylinder rather than a deadbolt cylinder itself.
16) Is there a non-keyed option if I only need to fill the cylinder hole?
Yes - BEST lists the 12E Series dummy rim cylinder with a 1-5/32 inch diameter, which occupies a rim cylinder opening without keyed function. That is a different need from the Arrow 16-113A, which is a functional collar and spring that restores cylinder seating and spring-return action in a working Arrow commercial lock.
