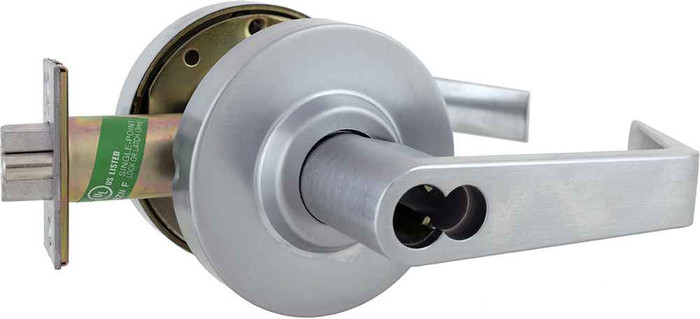

Arrow RLX82SR Grade 2 Storeroom Clutched Sierra Lever, SFIC Less Core, 2-3/4" Backset

Arrow RLX82SR Grade 2 Storeroom Clutched Sierra Lever, SFIC Less Core, 2-3/4" Backset

(No reviews yet) Write a Review

Model: RLX82SR26D-IC 2-3/4 BS
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$187.69
$62.39
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Arrow RLX82SR Grade 2 Storeroom Clutched Sierra Lever, SFIC Less Core, 2-3/4" Backset

Arrow Lock Company RLX Series Lever

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.



Specifications:

  • Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
  • Freewheeling Lever Action: Standard.
  • Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
  • Strike: ANSI 1-1/4" x 4-7/8"
  • Latch: 2-3/4" backset, 1-1/8" front
  • Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
  • Handing: Non-Handed.
  • Case Quantity: 6 per case.
  • Average Case Weight: 26 lbs.
  • Warranty: 10 Years.



Functions:

  • RLX01-SR: Passage
  • RLX08-SR: Single Dummy
  • RLX72-SR: Privacy
  • RLX81-SR: Entrance/Office
  • RLX82-SR: Storeroom
  • RLX87-SR: Classroom
  • RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.



Parts:

  • RLX-201A: Screw pack for chassis, rose, & thru-bolts.



Finishes:

  • 03/605/US3 - Bright Brass
  • 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
  • 26D/626/US26D - Satin Chromium Plated

Manufacturer Resources

Arrow Express Catalog

Product Specs

Subcategory:
Cylindrical Locks
Product Group:
Mechanical Locks
Series:
RLX Series
Grade:
Grade 2
Keyed Function:
Single Cylinder
Standard Latch:
G71 Deadlatch; 2-3/4" Backset
Standard Strike:
306 ASA ANSI Strike, 4-7/8" x 1-1/4"
ANSI/BHMA:
F84
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Keyed:
Yes
Fasteners:
Wood and Machine Screws
Commercial/Residential:
Commercial
Latch Faceplate:
1-1/8" x 2-1/4"
Function Description:
Latchbolt operated by lever either side except when key outside locks outside lever. Inside lever always free. Key outside locks/unlocks outside lever only.
Lock Type:
Cylindrical
Handle Type:
Lever
Lock Function:
Storeroom
Product Attribute:
Cylindrical Locks
Product Model:
RLX82SR
Product Function:
Storeroom
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/4" to 2"
Product Category:
Mechanical Locks
Department:
Door Hardware

Arrow RLX82SR26D-IC 2-3/4 BS – Frequently Asked Questions

1) Does the Arrow RLX82SR storeroom lever come with a cylinder core, or do I have to order one?
The RLX82SR is built less core with a small format interchangeable core prep, so no core ships with it. You supply the SFIC to match your existing master key system, which is the point of ordering it this way. It is a single cylinder lock, keyed outside only.
2) How does a storeroom function lever actually behave on a supply room door?
The outside lever stays locked at all times once the key locks it, so the door latches secure behind anyone who walks out. The key retracts the latch for entry. The inside lever is always free, so egress is never blocked. That is the F84 storeroom function on the RLX82SR.
3) Will the Arrow RLX82SR drop into the existing 2-3/4 inch backset prep and ANSI strike on my commercial door?
Yes, if your door is bored for a standard 2-3/4 inch backset. The RLX82SR ships with a G71 deadlatch at 2-3/4 inch backset, a 1-1/8 x 2-1/4 inch latch faceplate, and a 306 ASA ANSI strike measuring 4-7/8 x 1-1/4 inches. If your frame already has ANSI strike prep, the strike cutout matches.
4) What is an equivalent Grade 2 storeroom lever to the Arrow RLX82SR?
Two close Grade 2 storeroom levers are the Hager 2580 with Withnell lever and the Cal-Royal AG05 storeroom lockset with deadlocking latchbolt. All three are keyed cylindrical storeroom function, so the outside lever stays locked and the key retracts the latch while the inside lever is always free. The Arrow RLX82SR is factory set for 1-3/4 inch doors and covers 1-3/4 inch to 2 inch, while the Hager 2580 and Cal-Royal AG05 both list a 1-3/8 inch to 2 inch and 1-3/8 inch to 1-3/4 inch range respectively, so confirm the door slab thickness before swapping.
5) I need a heavier duty storeroom-style lever than a Grade 2 - what should I look at?
For openings where Grade 2 is not enough, the Dexter C1000 series offers Grade 1 cylindrical clutching levers in keyed functions including Classroom, Classroom Security and Asylum, and the Corbin Russwin CL3100 series is a Grade 1 vandal resistant cylindrical lever line. The Arrow RLX82SR is a BHMA Grade 2 storeroom lockset with a freewheeling clutched lever, so it handles abuse from the lever side but is certified to the Series 4000 Grade 2 level rather than Grade 1.
6) Do I need to know the door handing before ordering this Arrow lever?
No. The RLX82SR is non-handed, so one part number covers left and right hand doors, inswing or outswing. For a property manager stocking spares across a building, that means one SKU instead of two.
7) What does the clutched or freewheeling lever on the Arrow RLX Series do for abuse resistance?
When the outside lever is locked, it rotates freely instead of transmitting force into the chassis. Someone hanging on the lever or yanking it does not load the internal lock mechanism, which is why the RLX gets specified for tenant and back-of-house doors that take abuse.
8) Is the Arrow RLX82SR rated for commercial use, and what grade is it?
It is a commercial lockset certified to BHMA A156.2, Series 4000, Grade 2, and UL Listed. Grade 2 suits offices, multi-family, and light to moderate commercial traffic. For high-abuse openings such as school corridors or public restrooms, a Grade 1 cylindrical such as the Corbin Russwin CL3100 Series is the heavier option.
9) What other Grade 2 storeroom levers could I use instead of the Arrow RLX82SR?
Two Grade 2 storeroom cylindrical levers worth comparing: the Hager 2580 with the Withnell lever, and the Cal-Royal AG05, which uses a deadlocking latchbolt. Both are Grade 2 storeroom function like the Arrow. The difference from the RLX82SR is the core arrangement, since the Arrow is supplied less core for small format interchangeable cylinders to fit an existing key system.
10) I need matching levers on non-keyed doors in the same corridor. What other RLX functions use the Sierra lever?
The Sierra lever trim runs across the whole RLX line, so you can match the look door to door: RLX01-SR passage, RLX72-SR privacy, RLX81-SR entrance/office, RLX87-SR classroom, and RLX08-SR single dummy for rigid pull trim on one face only. Same finish family, same lever design.
11) The door does not need to lock - what is the non-keyed alternative to the RLX82SR?
If the opening only needs a latch with no locking, choose a passage lever instead. The Falcon B101 is a Grade 2 non-handed cylindrical passage lever, the Hager 2510 is a Grade 2 passage lever with the Withnell design, and the Accentra 4601LN is a Grade 2 passage lever with Augusta trim. The Arrow RLX82SR is keyed with a single cylinder and storeroom function, where the outside lever is locked at all times and the key retracts the latch, so it is not the right pick for a hall or closet door.
12) What do I order to match the RLX82SR on an office door that needs to be lockable from inside?
For an office door where staff need to lock and unlock the outside lever without a key, use an entrance/office function instead of storeroom. The Falcon B511CP6D is a Grade 2 cylindrical entrance/office lever, the Hager 2525 is a Grade 2 commercial entry lever, and the Cal-Royal AG00 is a Grade 2 entrance lever with a 2-3/8 inch backset. The Arrow RLX82SR is storeroom only, with the outside lever always locked, and uses a 2-3/4 inch backset G71 deadlatch.
13) Is a Kwikset or Callan lever a substitute for the Arrow RLX82SR?
They sit at a different grade level. The Arrow RLX82SR is a BHMA Grade 2 commercial cylindrical lockset. The Kwikset 200BRNL Breton and 300BRNL Breton are Grade 3 passage and privacy levers, the Callan Asheville is a Grade 3 passage lever, and the Cal-Royal AUS00 is a Grade 3 entrance/office lever. For a commercial storeroom door carrying traffic, stay with the Grade 2 cylindrical storeroom lockset.
14) Is a keyless pushbutton lever an option instead of the keyed Arrow RLX82SR?
Yes, if you want to stop issuing keys. The Lockey 2835 is a mechanical pushbutton keyless lever lock fitting 1-3/16 inch to 2 inch doors, the Lockey 1150 is a heavy duty mechanical keypad lever set fitting 1-1/8 inch to 2 inch doors, and the Delaney LP250 is a Grade 2 electronic keypad leverlock. The Arrow RLX82SR is a keyed single cylinder storeroom lockset, so it keys into an existing master system rather than using a code.
15) Do I need an electrified lever instead of the Arrow RLX82SR for an access control door?
If the opening is tied to a card reader or fire alarm release, you need an electrified lock. The Corbin Russwin CL33903 is a Grade 1 fail safe electrified cylindrical lever operating on 12VAC/DC for doors 1-3/4 inch to 2 inch thick. The Arrow RLX82SR is a mechanical Grade 2 cylindrical storeroom lockset operated by key and lever only, with no electrical option, so it suits a door that is secured by key alone.
16) What mounting hardware and screws come with the Arrow RLX82SR?
It installs with wood and machine screws and uses removable through bolts on the chassis. If you need the fastener set on its own, for a refit where screws have gone missing, the RLX-201A screw pack covers chassis, rose, and thru-bolts.
17) What matching trim can I put on the inactive leaf next to an RLX82SR?
A dummy trim is the right item for a leaf that needs a pull only. The BEST 7KC single dummy trim is a Grade 2 non-keyed cylindrical lever trim, the BEST 9K 1DT is the Grade 1 heavy duty version, and the Accentra 455LN Augusta is a Grade 1 single dummy cylindrical lever. Within the Arrow RLX line, the RLX08-SR is the single dummy providing rigid trim for one side of the door only, used as a pull or to match the active trim, and it will match the Sierra lever design of the RLX82SR.
