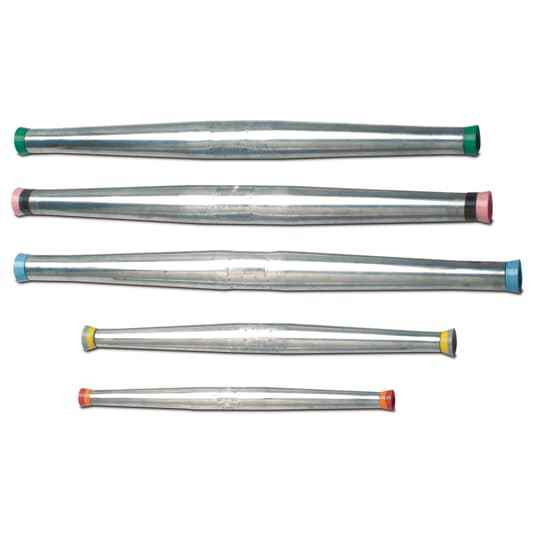

AUTO TENSION SPLICE 1/0 YEL 2/0 GRY
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- E Number Finland :
- 5041004
- Handle Type:
- None
- Product Group:
- Wire & Cable Management
- Product Type:
- Automatic Tension Splice
- Selling Unit Of Measure:
- each
- Type2:
- Splices or splice plates
- Department:
- Electrical
- Product Subgroup:
- Splices
Blackburn ATS1020 – Frequently Asked Questions
1) What conductor sizes does the Blackburn ATS1020 automatic tension splice take?
The ATS1020 is built for 1/0 and 2/0 conductors, with the 1/0 end color coded yellow and the 2/0 end gray. The color coding is how you confirm in the bucket that you are pushing the right size into the right end, so a 1/0 run goes into the yellow side and a 2/0 run into the gray.
2) Can I use the ATS1020 to splice a 1/0 conductor to a 2/0 conductor?
Yes. The ATS1020 is a two size splice, 1/0 on the yellow end and 2/0 on the gray end, so it is made for joining those two sizes in one connection rather than requiring a matched pair. If both of your conductors are the same size, you want a splice rated for that single size on both ends instead.
3) Do I need a crimping tool or press to install a Blackburn ATS1020 splice?
No press or crimp die is needed. An automatic tension splice is a push in device: the conductor is inserted and internal jaws grip harder as the line is pulled into tension, which is why it is used on overhead line and drop work where dragging a hydraulic crimper up is impractical. The ATS1020 is that style of splice.
4) Is the ATS1020 sold individually or in a box quantity?
It is sold each, so one splice per unit ordered. Line crews restocking a truck should order by the count of connections they expect to make.
5) What is the manufacturer part number and country of origin for this Blackburn splice?
Blackburn part number ATS1020, manufactured in Mexico. Distributors and utility purchasing groups quoting against a spec should reference ATS1020 directly, since the 1/0 to 2/0 pairing is what separates it from the adjacent sizes in the ATS range.
