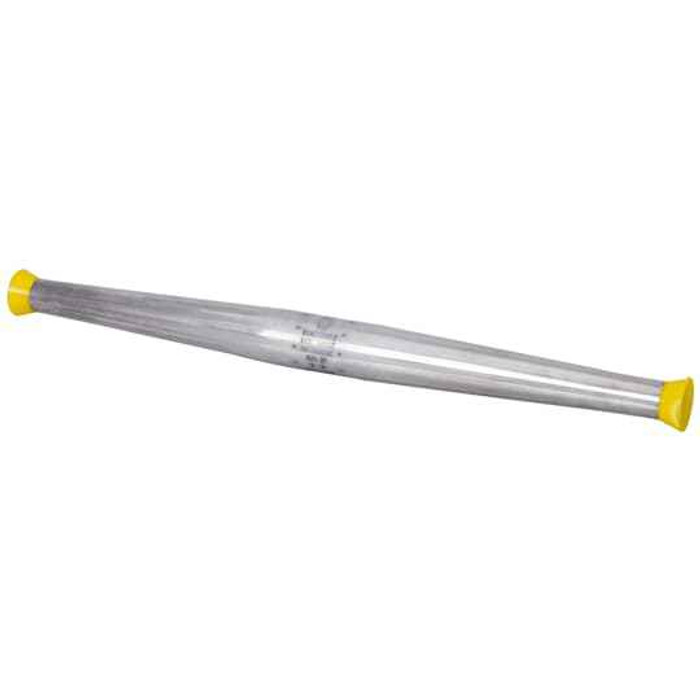

AUTO TENSION SPLICE 1/0 YEL
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Handle Type:
- None
- Product Group:
- Wire & Cable Management
- Product Type:
- Automatic Tension Splice
- Replacement Product Id New :
- 7TAA267130R0002
- Selling Unit Of Measure:
- each
- Type2:
- Splices or splice plates
- Department:
- Electrical
- Product Subgroup:
- Splices
Blackburn ATS10 – Frequently Asked Questions
1) What conductor size does the Blackburn ATS10 automatic tension splice take?
The ATS10 is sized for 1/0 conductor, and the yellow body is the color code that identifies that size in the automatic splice line. One splice joins two 1/0 conductor ends. If your run is a different gauge, you need the matching size in the series, not this one, since automatic splices grip only the conductor range they are built for.
2) Do I need a crimping tool or compression die to install the Blackburn ATS10 splice?
No. It's an automatic tension splice, so the conductor is pushed into each end and internal jaws grip and hold it under tension, no crimp tool, die, or compression press involved. That is the reason crews use this style on overhead conductor work where hauling a hydraulic crimper up the pole isn't practical.
3) Blackburn ATS10 has been superseded - what's the current part number?
The replacement part number on record for the ATS10 is 7TAA267130R0002. It's the same 1/0 automatic tension splice under the current numbering, so quote either number when matching to a spec or a bill of material that still calls out ATS10.
4) Is an automatic splice the right choice, or should I use a compression sleeve for a 1/0 conductor?
An automatic tension splice like the ATS10 is the choice when you want a full-tension conductor joint made in the field by hand, with no tooling. A compression sleeve gives you the same tension joint but requires the correct die set and a hydraulic or battery crimper, and it's the usual pick when the joint is being made on the ground or in a shop where the tooling is already staged. For a mid-span or energized-line repair on 1/0, the automatic wins on labor.
5) Is the Blackburn ATS10 sold as a single piece or in a bag?
It's sold each, one splice per unit, so order one per conductor joint you're making. For a two-conductor repair that's two pieces.
6) Where is the Blackburn ATS10 splice made? I need country of origin for a government job.
Country of origin on the ATS10 is Mexico (MX). That's the figure to put on a Buy American or trade-compliance submittal for this line item.
