AUTO TENSION SPLICE GUYSTRAND 7/16
Manufacturer Resources
Product Specs
- Country Of Origin:
- China (CN)
- Product Group:
- Wire & Cable Management
- Product Type:
- Steel Strand Automatic Splices
- Selling Unit Of Measure:
- each
- Standards:
- ASTM A 474, A 475
- Type2:
- Splices or splice plates
- Department:
- Electrical
- Product Subgroup:
- Splices
Blackburn ATSG716 – Frequently Asked Questions
1) What is the Blackburn ATSG716 automatic splice used for?

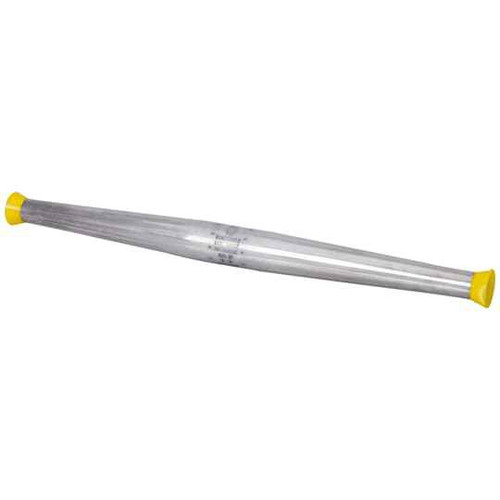

The ATSG716 is an automatic tension splice for 7/16 inch guy strand. You push the two strand ends into opposite ends of the splice body and internal jaws grip and hold under tension, so no bolts, crimping tool or die set is needed to join or repair a guy wire run.
2) Will this splice work on the galvanized guy wire my utility spec calls out?
The ATSG716 is built to ASTM A 474 and A 475, the standards covering aluminum-coated and zinc-coated steel strand used for guying. If your drawing calls for 7/16 inch strand under either of those specs, this splice matches it.
3) Do I need a special tool to install the Blackburn ATSG716?
No tool is required to make the connection. It is an automatic splice, so the strand ends are inserted and the internal wedges set themselves as load comes on the guy. Plan on cutting the strand square and cleaning it before insertion.
4) Can I use an automatic splice instead of preformed grips or bolted clamps on a guy run?
For joining two lengths of 7/16 inch strand in line, the ATSG716 does the job with no bolts to torque and no re-tightening later. Preformed grips and bolted strand clamps are still the choice where the spec requires a re-usable or field-adjustable termination, since an automatic splice sets permanently once loaded.
5) Is the ATSG716 sold individually or in a bag?
It is sold each, so one splice per unit ordered. Order one per strand joint you intend to make, and count an extra if a dead-end also needs terminating.
