B-Line 3018 TCS Eaton series u...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$968.29

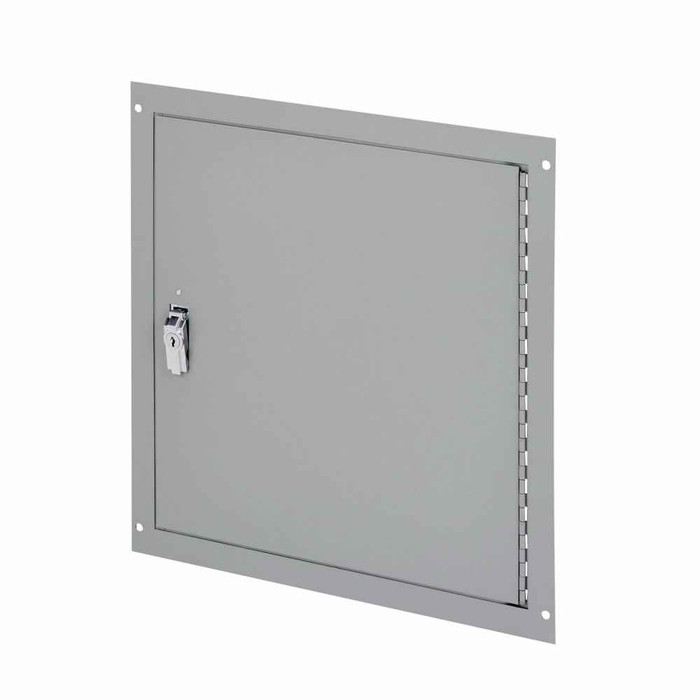

B-Line 3018 TCS Eaton series utility cabinets, NEMA 1, ANSI 61 gray painted, Protects against contact with enclosed equipment, Steel, Utility cabinets, Type 1 telephone termination cabinet/surface mount, 14 gauge

B-Line 3018 TCS Eaton series utility cabinets, NEMA 1, ANSI 61 gray painted, Protects against contact with enclosed equipment, Steel, Utility cabinets, Type 1 telephone termination cabinet/surface mount, 14 gauge

(No reviews yet) Write a Review

Model: 3018 TCS
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$968.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series utility cabinets, NEMA 1, ANSI 61 gray painted, Protects against contact with enclosed equipment, Steel, Utility cabinets, Type 1 telephone termination cabinet/surface mount, 14 gauge

Manufacturer Resources

Product Specs

Application:
Protects against contact with enclosed equipment
Certifications:
UL Listed
Degree Of Protection:
NEMA 1
Finish Color:
ANSI 61 gray painted
Mounting Method:
Surface
Product Category:
Utility cabinets
Product Height:
25 in
Product Length Depth:
25 in
Product Weight:
14.2 lb
Product Width:
14 in
Department:
Electrical
Product Type:
Type 1 telephone termination cabinet
Product Details:
Type 1 telephone termination cabinet
Product Material:
Steel

B-LINE 3018 TCS – Frequently Asked Questions

1) Can the B-Line 3018 TCS telephone termination cabinet be used outdoors or in a wash-down area?
No. The 3018 TCS is a NEMA 1 enclosure, which is an indoor-only rating. It guards against contact with the enclosed equipment and keeps out falling dirt, but it is not sealed against rain, hose-down, dust, or corrosive atmospheres. For an exterior wall, a damp mechanical room, or a parking structure, you need a NEMA 3R or 4 rated cabinet instead.
2) What are the actual dimensions of the B-Line 3018 TCS phone cabinet, and will it fit between studs?
The cabinet measures 25 inches in height, 14 inches in width, and 25 inches in length/depth, and it weighs 14.2 lb. It is a surface mount cabinet, so it hangs on the face of the wall rather than dropping into a stud bay. A 14 inch dimension will not fit cleanly between studs on 16 inch centers as a flush box anyway, so plan on mounting it to the finished wall surface with backing behind it.
3) Is the Eaton B-Line 3018 TCS cabinet UL Listed for a commercial telecom room?
Yes, the 3018 TCS carries a UL Listing, and it is a Type 1 telephone termination cabinet built for indoor service. That combination is what most spec writers and inspectors look for on a telecom backboard or riser closet installation in a commercial building.
4) What is the B-Line 3018 TCS made of and how durable is the finish?
Construction is 14 gauge steel with an ANSI 61 gray painted finish. Fourteen gauge is a heavier body than the light-gauge sheet used on residential-grade boxes, so it holds its shape when terminal blocks and cable get loaded into it. ANSI 61 gray is the standard industrial enclosure color, so it will match existing panels and gear already in most electrical and telecom rooms.
5) Is this cabinet a good choice for housing a panel or breakers, or only for phone terminations?
It is specified as a telephone termination cabinet in the B-Line utility cabinet line, intended to enclose terminal hardware and protect people from contact with the equipment inside. It is not sold as a loadcenter or a panelboard enclosure, so if you are landing branch circuits or breakers you want a rated panel enclosure rather than this utility cabinet.
6) What part number do I order for the B-Line telephone termination cabinet, and who makes it?
Order it as Eaton B-Line 3018 TCS. That is the manufacturer part number, and it identifies the 14 gauge steel NEMA 1 telephone termination cabinet in the Eaton B-Line utility cabinet series. There is a single configuration, so there is no finish or size suffix to specify.
