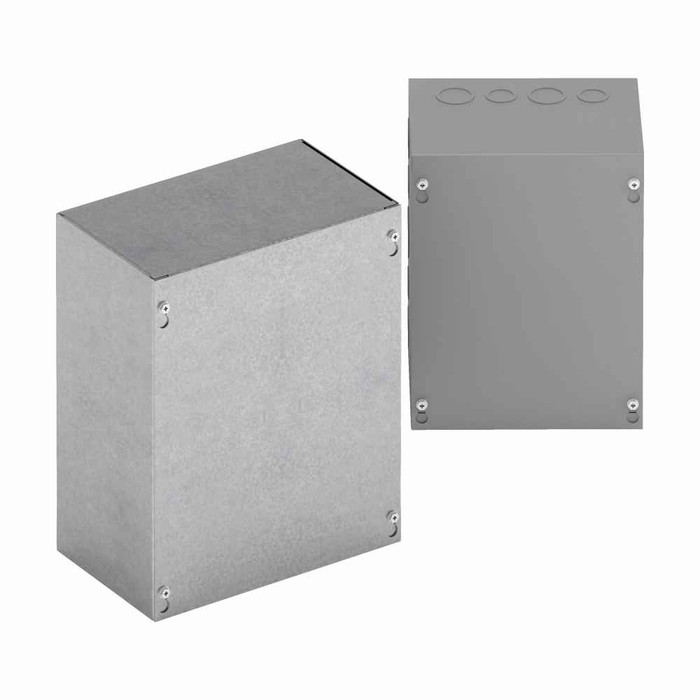

Eaton B-Line series Type 1 junction boxes
Manufacturer Resources
Product Specs
- Certifications:
- UL 50
- Country Of Origin:
- United States
- Cover Type:
- Screw
- Finish Color:
- Unfinished
- Mounting Hole Details:
- Thru holes
- Nema Rating:
- 1
- Product Height:
- 36 IN
- Product Length Depth:
- 6 IN
- Product Weight:
- 84.5 LB
- Product Width:
- 30 IN
- Special Features:
- Keyhole slots on cover, plated screws
- Wall Thickness:
- 12 gauge
- Department:
- Electrical
- Product Model:
- SCGV NK enclosure
- Product Color:
- Grey
- Mounting Method:
- Surface
- Product Style:
- Medium single door
- Product Material:
- Galvanized steel
B-LINE 36306 SCGV NK – Frequently Asked Questions
1) Can the B-Line 36306 SCGV NK junction box be installed outdoors or in a washdown area?
No. The 36306 SCGV NK is a NEMA Type 1 enclosure, which means indoor use only, in dry locations where the only job is keeping personnel out of live parts and keeping falling dirt off the wiring. Rain, hose-down, dust-tight or oily environments call for a Type 3R, 4, 4X or 12 box instead.
2) What are the box dimensions on the B-Line 36306 SCGV NK, and does the model number tell me the size?
It measures 36 in. height, 30 in. width and 6 in. length/depth. The 36306 designation follows the box height-width-depth convention, so 36 x 30 x 6. Lay out your wall space and conduit entries against that 6 inch depth before committing, since it is a shallow box for a cabinet of that face size.
3) Does this Eaton B-Line junction box come with conduit knockouts?
No. The NK in 36306 SCGV NK means no knockouts, so the 12 gauge galvanized steel walls come solid and you punch your own entries where the run actually lands. That is the usual choice for field-fit installs, but it does mean you need a knockout punch or hole saw rated for 12 gauge steel on site.
4) How does this 36 x 30 x 6 junction box mount to the wall?
Surface mount, through thru holes in the back of the enclosure. There is no flush or recessed trim arrangement here, so it sits proud on the wall or strut. At 84.5 lb empty, anchor into structure or a strut frame rather than drywall anchors.
5) Is the B-Line 36306 SCGV NK UL listed, and will it pass inspection on a commercial job?
It carries UL 50, the standard for enclosures for electrical equipment, and is rated NEMA Type 1. That is what an inspector looks for on an indoor surface-mounted pull or junction box. It is also made in the US, which matters if the spec carries a domestic-content requirement.
6) How does the cover come off on the B-Line 36306 junction box, and can one electrician handle it?
Screw cover, with plated screws and keyhole slots on the cover so you can back the screws part way out and lift the cover free rather than fully removing every fastener. Useful on a 36 x 30 face. The complete unit weighs 84.5 lb, so plan on two people for the lift and set even though one person can pull the cover.
7) Is a screw-cover box like the 36306 SCGV NK right for a panel I need to get into often?
Not really. A screw cover is meant for pull boxes, splice points and wireway junctions you open occasionally. Every entry means backing out plated screws, even with the keyhole slots that speed up the last step. If the box houses controls or terminals accessed routinely, a hinged-door enclosure is the better call and the 36306 SCGV NK is better kept for the splice.
