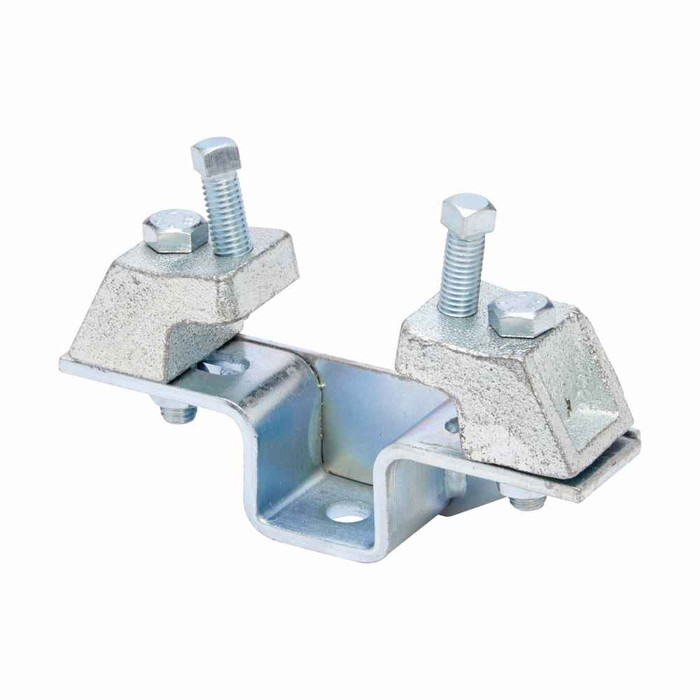

B602BZN
Manufacturer Resources
Product Specs
- Beam Flange Width:
- 5.25 in
- Beam Thickness:
- .875 in
- Certifications:
- cULus Listed
- Load Capacity:
- 1200 lb
- Product Height:
- 3.75 in
- Product Length Depth:
- 8.5 in
- Product Weight:
- 12 lb
- Product Width:
- 1.75 in
- Special Features:
- Used with (B451), (B213) support,(B213) beam clamp
- Department:
- Electrical
- Product Group:
- Clamps & Supports
- Product Subgroup:
- Clamps
- Product Type:
- Beam clamp with gusset assembly
- Product Details:
- Beam clamp with gusset assembly
- Product Material:
- Malleable iron
B-LINE B602BZN – Frequently Asked Questions
1) What size beam flange will the B-Line B602BZN beam clamp fit?
The B602BZN takes flanges up to 5.25 inches wide and up to .875 inch thick. Measure the flange on your beam at the point you plan to hang from, not at the web, since flange thickness tapers on some rolled shapes. Anything wider or thicker than those two numbers needs a larger clamp.
2) What other B-Line parts do I need to order with the B602BZN to finish the hang?
The B602BZN is used with B451 and B213 support, and with the B213 beam clamp. The clamp itself is the attachment to the steel; the rod, channel, and the mating support pieces are separate line items. Plan the order as an assembly so the crew is not waiting on a support piece after the clamps land.
3) Is the B-Line B602BZN listed for electrical support work?
It is cULus Listed, which covers it for both US and Canadian installations. That matters on inspected commercial and institutional jobs where the AHJ wants listed support hardware on conduit and tray runs rather than field-fabricated brackets.
4) Is the B602BZN a plain beam clamp or does it include the gusset?
It ships as a beam clamp with gusset assembly, so the gusset is part of the item rather than a separate piece to buy. The gusset is what lets the clamp take side load instead of pure straight-down pull, which is the reason people specify this style over a simple C-clamp.
5) Can I use a beam clamp like the B602BZN instead of drilling the structural steel?
That is the point of it. A clamp of this type grips the flange, so nothing gets drilled or welded into the structure, which is usually what the structural engineer prefers and what keeps a retrofit from needing sign-off on modified steel. The trade-off is you are limited by what the flange measures: up to 5.25 inches wide and .875 inch thick, and 1200 lb of rated load.
6) What is the B-Line B602BZN made of, and will it hold up in a parking garage or mechanical room?
Body material is malleable iron, which is the standard for heavy beam clamps because it tolerates the bolt clamping force without cracking the way gray iron can. For damp or corrosive environments, match the finish to the exposure the same way you would for the rest of the strut hardware on the run.
7) How much room does the B602BZN take up on the beam, and how heavy is it to set overhead?
Overall it measures 8.5 x 3.75 x 1.75 inches and weighs 12 lb per clamp. That weight is worth knowing before a ceiling crew commits to setting a long row of them by hand off a lift, and the 8.5 inch dimension is the one to check against adjacent duct or pipe crowding the beam.
