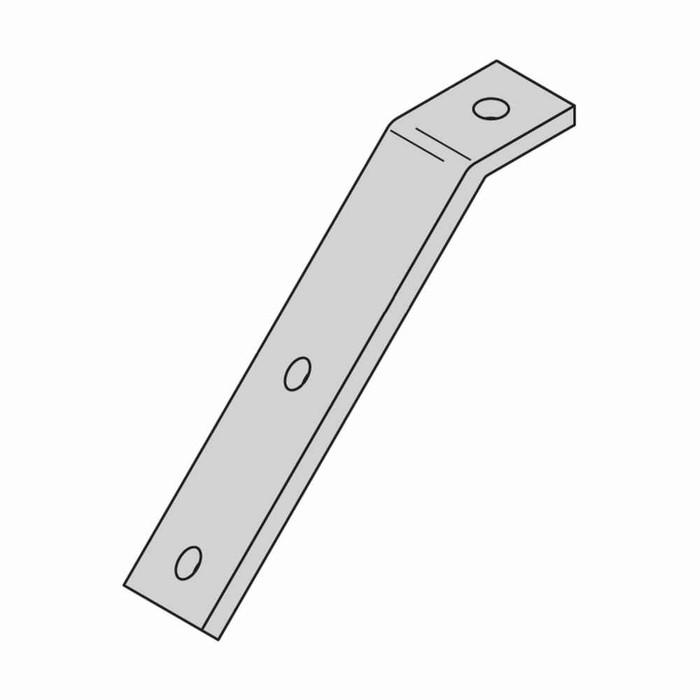

Eaton auxiliary support brace, Steel, ATR Size: 5/8"-11, Hole diameter: 11/16", Yellow zinc, Single diagonal brace
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Product Height:
- .38 in
- Product Length Depth:
- 10.5 in
- Product Weight:
- 1.84 lb
- Product Width:
- 1.75 in
- Department:
- Electrical
- Product Model:
- Single diagonal brace
- Product Finish:
- Yellow zinc chromate
- Product Size:
- ATR Size 5/8 in - 11, hole diameter 11/16 in
- Product Material:
- Steel
B-LINE SB309BYZ – Frequently Asked Questions
1) What does a single diagonal brace like the B-Line SB309BYZ actually do on a trapeze or rod hanger?
It is an auxiliary support brace: one leg ties to the 5/8 inch-11 threaded rod, the other angles back to structure, so the hanger is triangulated against lateral sway and swing. A vertical rod alone carries gravity load only. Use a single diagonal where you need bracing in one direction; if you need resistance both ways, plan on a second brace opposed to the first.
2) How long is the B-Line single diagonal support brace, and how much does it weigh?
It measures 10.5 inches in length, 1.75 inches wide and .38 inches thick, weighing 1.84 lb. That length sets how far off the rod you can pick up the diagonal, so lay it out before you drill the deck anchor.
3) Is the yellow zinc finish on this B-Line brace okay for outdoor or damp locations?
The brace is steel with a yellow zinc chromate finish. That is a plated coating intended for dry indoor service, typical of interior mechanical and electrical rooms. For exterior, wash-down, or corrosive areas, specify a hot-dip galvanized or stainless brace instead.
4) Does the B-Line SB309BYZ brace come with the rod, nuts, or anchors?
You are buying the steel brace only, model SB309BYZ. The 5/8 inch-11 all-thread rod, the nuts and washers at the 11/16 inch hole, and whatever anchor or beam clamp you land the other end on all get ordered separately.
