Spec Sheet
Product Specs
- Circuit Breaker Position 1:
- Non-ground fault
- Feed Type:
- Top
- Number Of Circuits:
- 6
- Receptacle Center:
- NEMA 5-20R2GFI
- Receptacle Left:
- NEMA 14-50R
- Receptacle Right:
- NEMA TT-30R
- Department:
- Electrical
- Product Type:
- Unmetered
- Product Length:
- 6.8 IN
- Product Details:
- Unmetered
- Mounting Method:
- Pedestal
- Product Height:
- 52 IN
- Product Weight:
- 41 LB
- Product Width:
- 9.5 IN
B-LINE CHU1N7N4NPX – Frequently Asked Questions
1) What receptacles are on the Eaton B-Line CHU1N7N4NPX RV pedestal?
Three outlets, one on each face. Left is a NEMA 14-50R (50 amp), right is a NEMA TT-30R (30 amp travel trailer), and the center carries a NEMA 5-20R2GFI duplex, which is the GFCI-protected 20 amp convenience pair. That combination covers big rigs, 30 amp trailers, and a plug-in for tools or lights at the same site.
2) Is the CHU1N7N4NPX pedestal metered or unmetered?
Unmetered. The CHU1N7N4NPX is built as a power outlet pedestal only, with no meter socket in the enclosure, so it suits campgrounds, marinas, and job sites billed by the site rather than by the individual stall. If your utility or park requires per-site kWh billing, you need a metered pedestal instead.

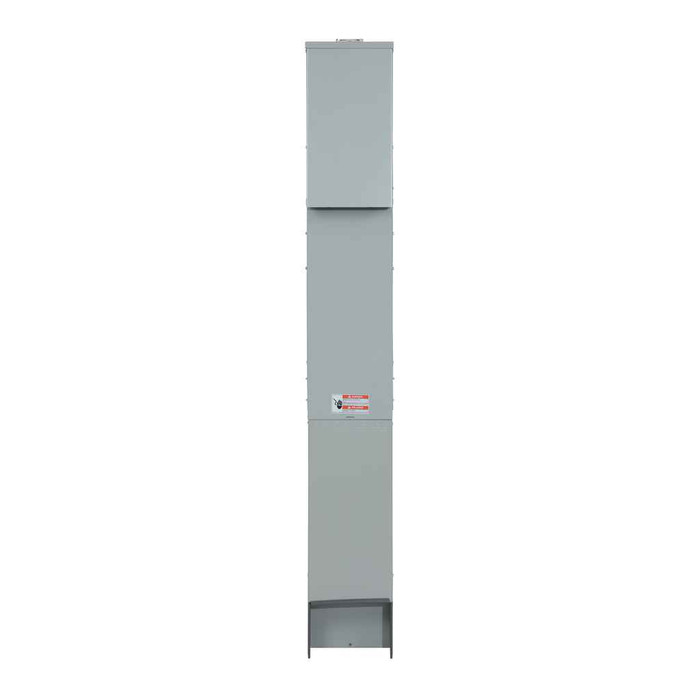

3) How does this pedestal get mounted, and does it need a concrete pad?
It is a pedestal-mount unit, meaning the enclosure sits on its own integral post set at the site rather than bolting to a wall or a panelboard. The body stands 52 inches tall and measures 9.5 by 6.8 inches in the other two dimensions, so plan the set depth and conductor stub-up accordingly. Service conductors land top feed.
4) Is the 50 amp breaker on this pedestal GFCI protected?
No. Circuit breaker position 1 is non-ground-fault, so that breaker is standard thermal-magnetic protection only. Ground fault protection on this unit comes from the center NEMA 5-20R2GFI duplex, which is GFCI at the receptacle. If your jurisdiction or park spec calls for GFCI breaker protection on the large RV circuits, specify a pedestal configured with GFCI breakers.
5) Is the feed top or bottom on the Eaton CHU1N7N4NPX?
Top feed. Conductors enter at the top of the enclosure, which matters if you were planning an underground lateral coming up inside the pedestal base to a bottom-fed gutter. Confirm your conduit routing and gutter space before you set the post.
6) How much does the CHU1N7N4NPX pedestal weigh for handling and shipping?
41 pounds. At 52 inches tall it is a one-person carry but an awkward one, so most crews stage it at the site and set it after the conduit and grounding electrode are in.
