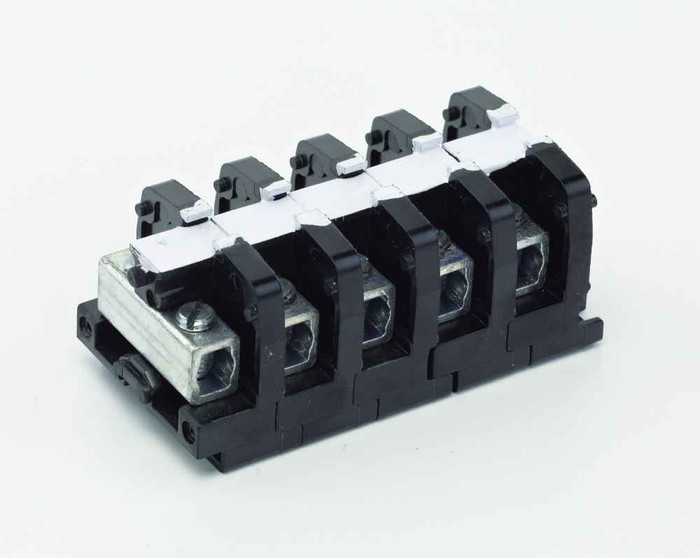

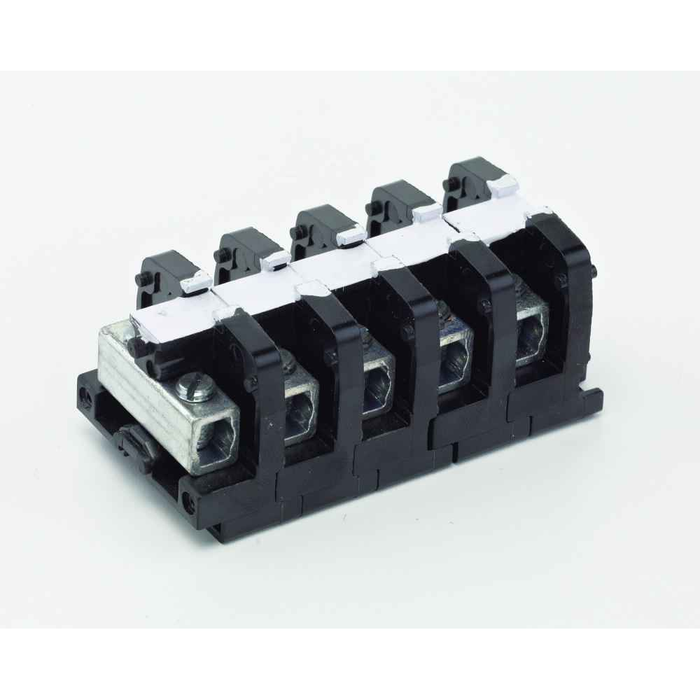

Eaton B-Line series accessories, NEMA 12, Type 12-AW-14, Channel mount, Console accessories, #18-#4 heavy-duty flat base terminal block
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Degree Of Protection:
- NEMA 12
- Product Category:
- Console accessories
- Product Height:
- .43 in
- Product Length Depth:
- .56 in
- Product Weight:
- .224 lb
- Product Width:
- .56 in
- Department:
- Electrical
- Product Type:
- Type 12-AW-14
- Product Details:
- Type 12-AW-14
B-LINE FT6005 – Frequently Asked Questions
1) What wire sizes does the Eaton B-Line FT6005 terminal block accept?
The FT6005 is a heavy-duty flat base terminal block rated for #18 through #4 conductors, so it covers everything from small control wiring up to a #4 feeder tap in the same block.
2) How does the FT6005 terminal block mount inside an enclosure or console?
It is a channel mount, flat base block, so it seats on mounting channel rather than bolting directly to a subpanel face. If your console or enclosure interior is set up for DIN-style or direct screw mounting only, you will need channel run in first.
3) Is the B-Line FT6005 terminal block suitable for a NEMA 12 industrial enclosure?
Yes. The FT6005 is specified to NEMA 12, which is the dust, dirt, and dripping non-corrosive liquid rating used for indoor industrial panels and consoles. It is also UL Listed.
4) What is the exact part number to order for the B-Line Type 12-AW-14 terminal block?
Order it as Eaton B-Line FT6005. The catalogue designation is Type 12-AW-14 and it ships as a single block weighing .224 lb.
5) Can I use the FT6005 for both control wiring and larger power taps in the same panel?
That is what the #18 to #4 range is for. Rather than stocking separate small-signal and feeder blocks, one heavy-duty flat base block covers both, which is useful for MRO standardization across consoles and control cabinets in the same facility.
