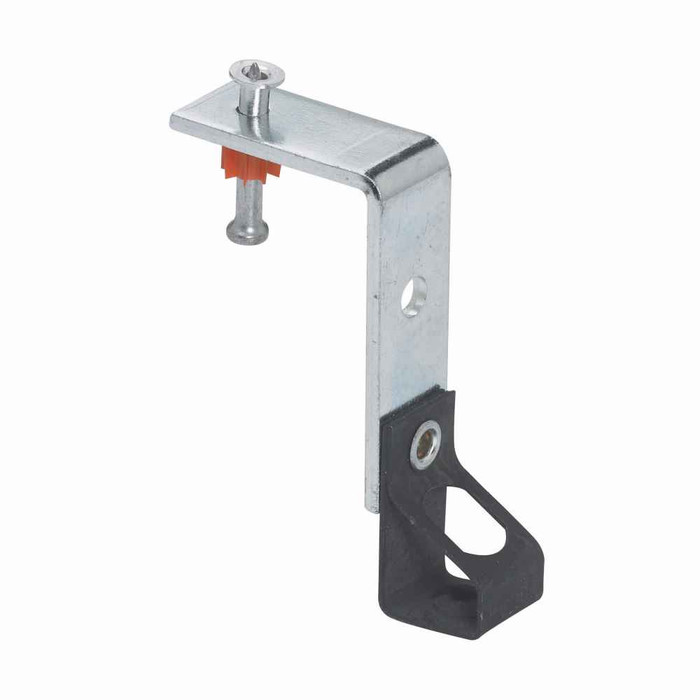

Eaton B-Line series all threaded rod and drop wire supports, Hangers, 1" Height, 1" Length, 1" Width, 0.1lbs, Drive pin fasteners, 0.25" threaded rod size, 30 lbs load capacity, With threaded impressions
Manufacturer Resources
Product Specs
- Certifications:
- UL/CUL listed
- Load Capacity:
- 3 lbs
- Product Category:
- Hangers
- Product Height:
- 1 in
- Product Length Depth:
- 1 in
- Product Weight:
- .1 lb
- Product Width:
- 1 in
- Department:
- Electrical
- Product Group:
- Fasteners
- Product Subgroup:
- Other Fasteners
- Product Type:
- Drive pin fasteners
- Product Details:
- Drive pin fasteners
- Product Style:
- With threaded impressions
B-LINE BH4-PNA – Frequently Asked Questions
1) What size threaded rod does the B-Line BH4-PNA hanger accept?
The BH4-PNA takes 1/4 inch threaded rod. It is one of the Eaton B-Line all threaded rod and drop wire supports, with threaded impressions rather than a nut-and-washer arrangement, so the rod threads straight into the fastener body.
2) Is the Eaton B-Line BH4-PNA hanger UL listed for electrical work?
Yes, the BH4-PNA carries a UL/CUL listing, which is what an institutional or MRO spec typically calls for when hanging conduit, boxes or fixtures from threaded rod or drop wire in a commercial building.
3) How does a drive pin hanger like the BH4-PNA install compared to an anchor and threaded rod?
It is a drive pin fastener, so it is driven into the structure with a powder-actuated or hammer-driven pin instead of being drilled and anchored. That makes it a fast repetitive hang for long runs of drop wire or 1/4 inch rod. If your substrate will not take a driven pin, or the spec calls for a removable mechanical anchor, use a drilled anchor with a rod coupling instead.
4) What part number do I order for the B-Line 1/4 inch drive pin rod hanger?
Order Eaton B-Line model BH4-PNA. It is a single-model item, so there is no finish or size option to specify, and the 1/4 inch rod capacity is fixed.
5) Can I use the B-Line BH4-PNA for drop wire as well as threaded rod?
Yes. It belongs to Eaton B-Line's all threaded rod and drop wire support line, so it covers both hanging methods on the same fastener, which is useful when a job mixes wire-hung fixtures with rod-hung conduit.
