B-Line Eaton series beam clamp...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$18,163.58

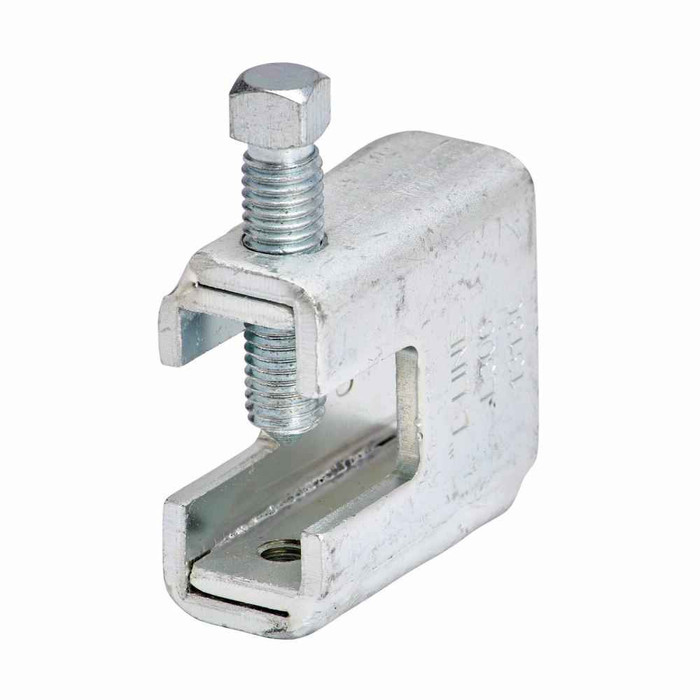

B-Line Eaton series beam clamps, 1500 lb, Steel, Safety factor of 5, setscrew included, Beam clamp, 1/2”-13 screw size, 7/8” flange width, Hot-dipped

B-Line Eaton series beam clamps, 1500 lb, Steel, Safety factor of 5, setscrew included, Beam clamp, 1/2”-13 screw size, 7/8” flange width, Hot-dipped

(No reviews yet) Write a Review

Model: B309HDG
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$18,163.58
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series beam clamps, 1500 lb, Steel, Safety factor of 5, setscrew included, Beam clamp, 1/2”-13 screw size, 7/8” flange width, Hot-dipped galvanized

Manufacturer Resources

Product Specs

Beam Flange Width:
.875 in
Certifications:
cULus Listed
Load Capacity:
1500 lb
Product Height:
2.5625 in
Product Length Depth:
2.5 in
Product Weight:
1.33 lb
Product Width:
.467 in
Set Screw Size:
1/2”-13
Special Features:
Safety factor of 5, setscrew included
Department:
Electrical
Product Group:
Clamps & Supports
Product Subgroup:
Clamps
Product Type:
Beam clamp
Product Details:
Beam clamp
Product Material:
Steel

B-LINE B309HDG – Frequently Asked Questions

1) How much weight can the B-Line B309HDG beam clamp hold?
Rated load is 1500 lb, with a safety factor of 5 built into that rating. That covers typical threaded rod drops for conduit, cable tray, and pipe runs off a structural beam. The clamp itself weighs 1.33 lb.
2) Is the B309HDG beam clamp OK for outdoor or damp locations?
It is hot-dipped galvanized steel, so it is suited to exterior runs, parking structures, and damp or corrosive interior areas where a plain-finish clamp would rust at the threads.
3) What thread does the rod screw into on the B309HDG beam clamp?
The setscrew size is 1/2-13, and it ships with the clamp. Order your drop rod, nuts, and any hanger hardware separately to match.
4) Do I need to drill or weld the beam to install this clamp?
No. The B309HDG clamps over the beam flange and is secured with its setscrew, so the structural steel stays untouched. That is the usual reason it gets specified over a welded or drilled attachment on a retrofit.
5) How much room does the B309HDG beam clamp take up on the beam?
Stated dimensions are 2.5625 in height, 2.5 in length/depth, and .467 in width. That narrow body matters when you are spacing multiple clamps along a flange or working in a tight ceiling plenum.
