B-Line B308ZN Eaton series bea...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$173.57
$145.88

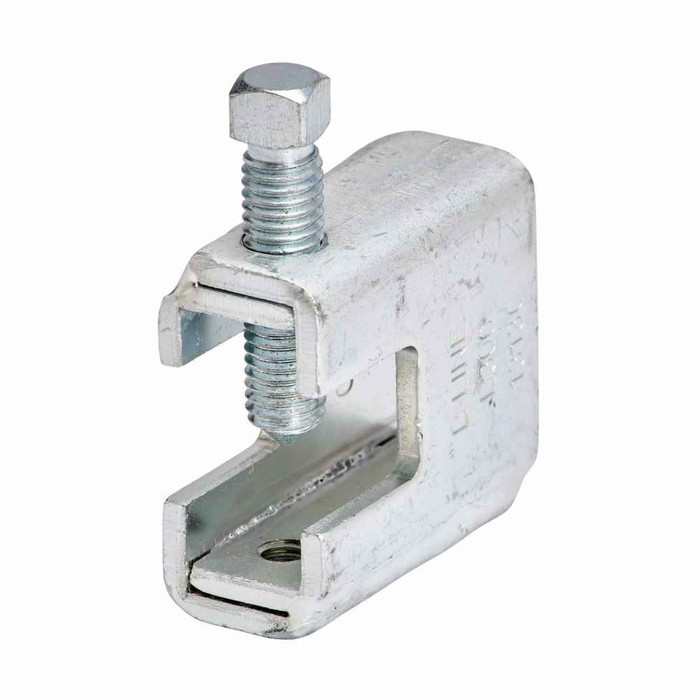

B-Line B308ZN Eaton series beam clamps, 1500 lb, Steel, Safety factor of 5, setscrew included, Beam clamp, 1/2"-13 thread/rod size, 1/2”-13 screw size, 7/8” flange width, Electro-plated zinc

B-Line B308ZN Eaton series beam clamps, 1500 lb, Steel, Safety factor of 5, setscrew included, Beam clamp, 1/2"-13 thread/rod size, 1/2”-13 screw size, 7/8” flange width, Electro-plated zinc

(No reviews yet) Write a Review

Model: B308ZN
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$173.57
$145.88
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series beam clamps, 1500 lb, Steel, Safety factor of 5, setscrew included, Beam clamp, 1/2"-13 thread/rod size, 1/2”-13 screw size, 7/8” flange width, Electro-plated zinc

Manufacturer Resources

Product Specs

Beam Flange Width:
.875 in
Certifications:
cULus Listed
Load Capacity:
1500 lb
Product Height:
2.5625 in
Product Length Depth:
2.5 in
Product Weight:
1.33 lb
Product Width:
.467 in
Set Screw Size:
1/2”-13
Special Features:
Safety factor of 5, setscrew included
Thread Rod Size:
1/2"-13
Department:
Electrical
Product Group:
Clamps & Supports
Product Subgroup:
Clamps
Product Type:
Beam clamp
Product Details:
Beam clamp
Product Material:
Steel

B-LINE B308ZN – Frequently Asked Questions

1) What size threaded rod does the B-Line B308ZN beam clamp take?
The B308ZN takes 1/2 inch-13 threaded rod. The setscrew that locks it to the beam is also 1/2 inch-13 and comes with the clamp, so you supply the rod and the hanger below it, nothing else on the clamp itself.
2) Is this beam clamp listed for electrical support work?
The B308ZN is cULus Listed, which is what an inspector looks for when the clamp is carrying conduit or cable support in a commercial building. It is a steel clamp with an electro-plated zinc finish.
3) Can I use a zinc-plated beam clamp outdoors or in a wet area?
Electro-plated zinc over steel is a dry, indoor-protected finish. For a parking deck, rooftop, cooling tower or any washdown or corrosive area, specify a hot-dip galvanized or stainless beam clamp instead. Indoors, in conditioned or normal mechanical spaces, the zinc plating is what most conduit and pipe support runs use.
4) Do I need to drill or weld the steel to hang rod from a beam?
No. A beam clamp like the B308ZN grips the flange and is locked with the included 1/2 inch-13 setscrew, so nothing gets drilled, welded or coated-through. That is why it is the standard way to pick up conduit and pipe hangers off structural steel in an existing building.
5) How much room does the B308ZN need around the beam?
The clamp body measures 2.5625 x 2.5 x .467 inches and weighs 1.33 lb. It is a compact single-jaw clamp, so it works where flanges are tight against deck or adjacent runs, but check the 2.5625 inch dimension against your clearance above the flange before you order a case.
