B-Line B307ZN Eaton series bea...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$165.85
$137.40

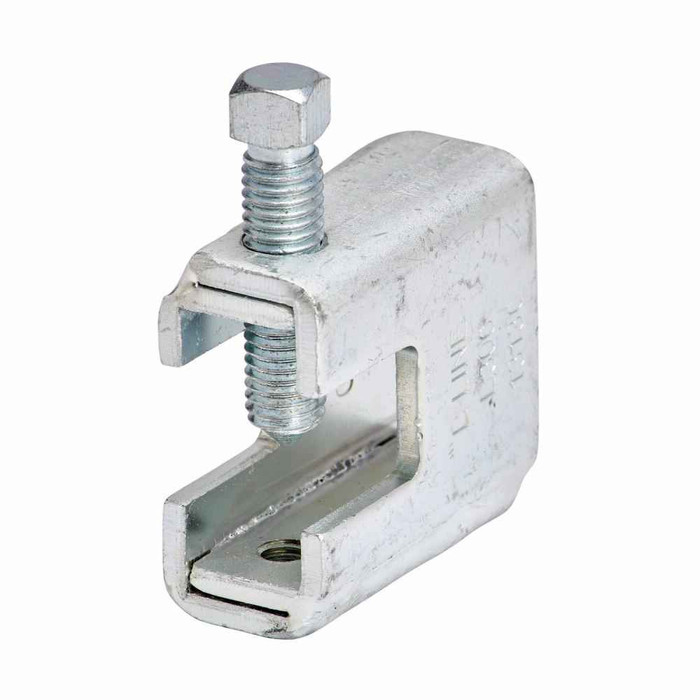

B-Line B307ZN Eaton series beam clamps, 1100 lb, Steel, Safety factor of 5, setscrew included, Beam clamp, 1/2"-13 thread/rod size, 1/2”-13 screw size, 7/8” flange width, Electro-plated zinc

B-Line B307ZN Eaton series beam clamps, 1100 lb, Steel, Safety factor of 5, setscrew included, Beam clamp, 1/2"-13 thread/rod size, 1/2”-13 screw size, 7/8” flange width, Electro-plated zinc

(No reviews yet) Write a Review

Model: B307ZN
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$165.85
$137.40
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series beam clamps, 1100 lb, Steel, Safety factor of 5, setscrew included, Beam clamp, 1/2"-13 thread/rod size, 1/2”-13 screw size, 7/8” flange width, Electro-plated zinc

Manufacturer Resources

Product Specs

Beam Flange Width:
.875 in
Certifications:
cULus Listed
Load Capacity:
1100 lb
Product Height:
2.4375 in
Product Length Depth:
2.5 in
Product Weight:
.97 lb
Product Width:
.467 in
Set Screw Size:
1/2”-13
Special Features:
Safety factor of 5, setscrew included
Thread Rod Size:
1/2"-13
Department:
Electrical
Product Group:
Clamps & Supports
Product Subgroup:
Clamps
Product Type:
Beam clamp
Product Details:
Beam clamp
Product Material:
Steel

B-LINE B307ZN – Frequently Asked Questions

1) Can a zinc plated beam clamp like the B307ZN be used outdoors or in a wet area?
The B307ZN is steel with an electro-plated zinc finish, which is a mild indoor corrosion coating. It suits dry indoor structural steel, mechanical rooms and ceiling plenums. For exterior, wash-down or corrosive environments, specify a hot dip galvanized or stainless beam clamp instead.
2) Do I have to buy the setscrew separately for the B307ZN?
No. The 1/2"-13 setscrew ships with the clamp. What you supply is the 1/2"-13 threaded rod, the hanger nuts, and whatever the rod terminates in at the bottom.
3) How much clearance do I need above the ceiling for the B307ZN beam clamp?
The clamp body measures 2.4375 in high, 2.5 in length/depth and .467 in wide, and it weighs .97 lb. Add rod projection and the nut above it when you are checking tight plenum space. The narrow .467 in body lets it sit close alongside adjacent hangers on the same flange.
