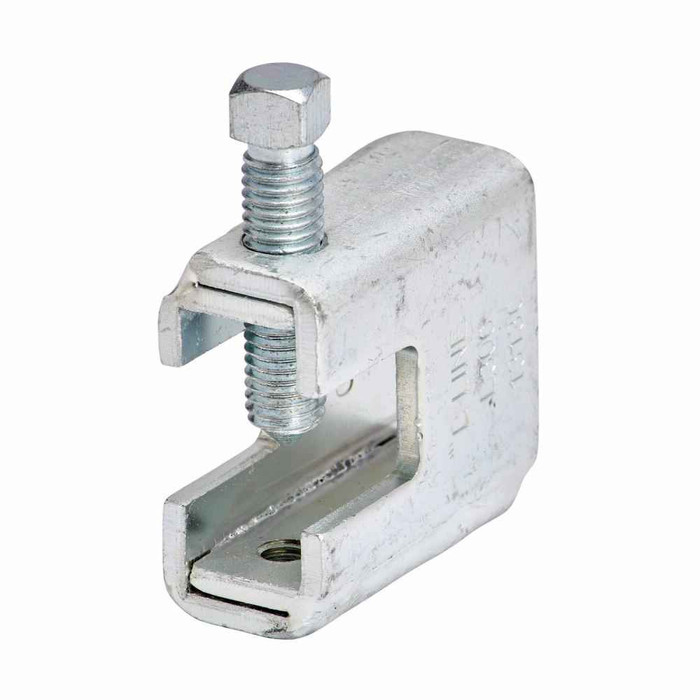

B-Line Eaton series beam clamp...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$16,154.21
B-Line Eaton series beam clamps, 600 lb, Steel, Safety factor of 5, setcrew included, Beam clamp, 3/8”-16 thread/rod size, 3/8" screw size, 7/8” flang

B-Line Eaton series beam clamps, 600 lb, Steel, Safety factor of 5, setcrew included, Beam clamp, 3/8”-16 thread/rod size, 3/8" screw size, 7/8” flang

(No reviews yet) Write a Review

Model: B305HDG
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$16,154.21
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series beam clamps, 600 lb, Steel, Safety factor of 5, setcrew included, Beam clamp, 3/8”-16 thread/rod size, 3/8" screw size, 7/8” flange width, Hot-dipped galvanized

Manufacturer Resources

Product Specs

Beam Flange Width:
.875 in
Certifications:
cULus Listed
Load Capacity:
600 lb
Product Height:
2.3125 in
Product Length Depth:
2.5 in
Product Weight:
.72 lb
Product Width:
1.125 in
Set Screw Size:
3/8"
Special Features:
Safety factor of 5, setcrew included
Thread Rod Size:
3/8”-16
Department:
Electrical
Product Group:
Clamps & Supports
Product Subgroup:
Clamps
Product Type:
Beam clamp
Product Details:
Beam clamp
Product Material:
Steel

B-LINE B305HDG – Frequently Asked Questions

1) What size hanger rod threads into this Eaton B-Line beam clamp?
It takes 3/8 inch-16 threaded rod. That is the tapped size in the clamp body, so standard 3/8-16 all-thread rod threads straight in with no adapter. If your run is already hung on 1/2-13 rod, this is not the clamp for it.
2) Is this beam clamp suitable for outdoor or damp locations like a parking garage or rooftop?
Yes. The B305HDG is steel with a hot-dipped galvanized finish, which is the finish specified for exterior, unheated, and wash-down environments where a plain or electro-plated clamp would rust. Parking structures, loading docks, rooftop conduit runs, and exterior canopies are the usual applications.
3) Is the Eaton B-Line B305HDG beam clamp UL listed for electrical support?
It is cULus Listed, so it carries both the US and Canadian listing marks. For an inspector reviewing conduit or cable tray support on a commercial or institutional job, that listing is the line item they look for, and it covers work on either side of the border.
4) Do I need to buy the set screw separately for this beam clamp?
No, the 3/8 inch set screw ships with the clamp. What you still need to supply is the 3/8-16 threaded rod and whatever hanger, strap, or tray fitting lands on the bottom of the rod. The clamp itself is the beam-to-rod connection and nothing more.
5) How much clearance do I need around the beam flange to install this clamp?
The clamp body measures 2.5 x 2.3125 x 1.125 inches, so plan on roughly that envelope of working room at the flange edge to seat it and reach the set screw. In tight ceiling cavities or where ductwork crowds the beam, check that footprint before ordering a quantity. Each clamp weighs .72 lb, which matters when you are estimating a few hundred of them for a job.
6) Should I use a beam clamp or drill and anchor into the structure for hanging conduit?
A beam clamp is the choice when you have exposed structural steel, because it grips the flange with a set screw and leaves the steel undrilled, which keeps the structural engineer and the building owner happy. Drilled anchors are for concrete deck or where no steel is accessible. The B305HDG handles the steel-flange case at 600 lb on 3/8-16 rod.
7) What is the exact part number to order for the galvanized 3/8 inch B-Line beam clamp?
Order Eaton B-Line model B305HDG. The HDG suffix is the hot-dipped galvanized version, which is the distinction to watch for if you are standardizing an exterior job and do not want a plated clamp slipped into the shipment.
