B-Line Eaton series conduit su...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$750.33

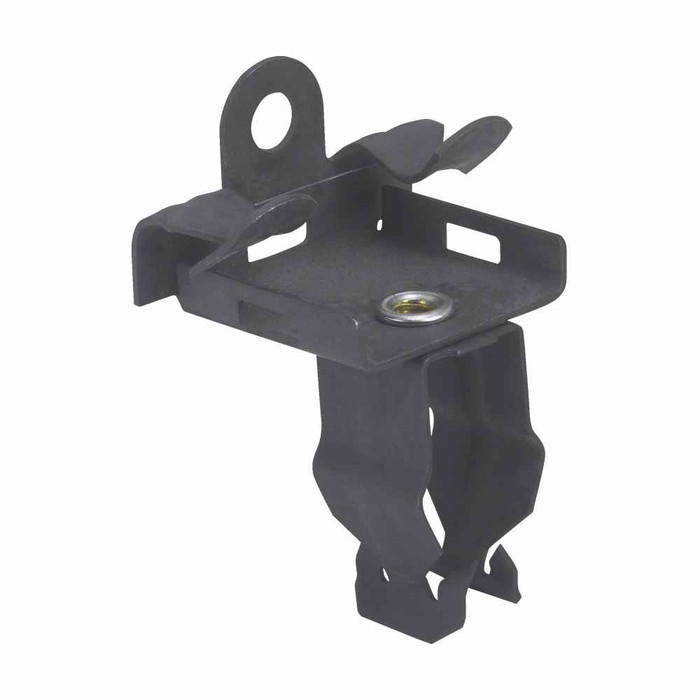

B-Line Eaton series conduit support fasteners, Beams, Flange, 1" Height, 1" Length, 1" Width, 0.085lbs, 0.5" EMT, Push-type conduit to beam fasteners,

B-Line Eaton series conduit support fasteners, Beams, Flange, 1" Height, 1" Length, 1" Width, 0.085lbs, 0.5" EMT, Push-type conduit to beam fasteners,

(No reviews yet) Write a Review

Model: BP-8-U-5-8
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$750.33
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series conduit support fasteners, Beams, Flange, 1" Height, 1" Length, 1" Width, 0.085lbs, 0.5" EMT, Push-type conduit to beam fasteners, .31" Min mount size, .5" Max mount size

Manufacturer Resources

Product Specs

Application:
Quickly attaches conduit to beams
Certifications:
UL/CUL listed
Mounting Dimensions Max:
0.5
Mounting Dimensions Min:
0.31
Mounting Method:
Flange
Product Category:
Beams
Product Height:
1 in
Product Length Depth:
1 in
Product Weight:
.085 lb
Product Width:
1 in
Department:
Electrical
Product Group:
Conduit & Fittings
Product Subgroup:
Conduit Accessories
Product Type:
Push-type conduit to beam fasteners
Product Size:
0.5 inch EMT
Product Details:
Push-type conduit to beam fasteners

B-LINE BP-8-U-5-8 – Frequently Asked Questions

1) What size conduit does the B-Line BP-8-U-5-8 beam clamp hold?
The BP-8-U-5-8 push-type fastener is sized for 1/2 inch EMT. It snaps the conduit to the beam flange without strut, straps or screws. For other trade sizes you need a different BP series number, since each one is dedicated to a single conduit size.
2) Can I install this B-Line conduit clip without drilling or welding the steel?
Yes, that is the point of it. The BP-8-U-5-8 is a push-on clip that hooks over the beam flange by hand, so no holes are drilled in the structural steel and nothing is welded. That matters where drilling structural members is not allowed by the job spec.
3) Is the B-Line BP-8 series beam fastener UL listed for electrical work?
The BP-8-U-5-8 conduit-to-beam fastener is UL and cUL listed, which is what inspectors and institutional specs typically ask for on conduit support hardware in the United States and Canada.
4) Will this clip work on threaded rigid or IMC instead of 1/2 inch EMT?
No. The clip is dimensioned for 1/2 inch EMT, and rigid and IMC in the same trade size have a larger outside diameter, so the conduit will not snap into the saddle. Use a support rated for that conduit type rather than forcing this one.
5) Do I need any other hardware to support EMT with these beam clips?
Nothing else is required at the support point. The fastener does both jobs, clamping to the beam flange and holding the conduit, so there is no strut channel, pipe strap, bolt or anchor to buy. You order by conduit size and flange thickness only.
