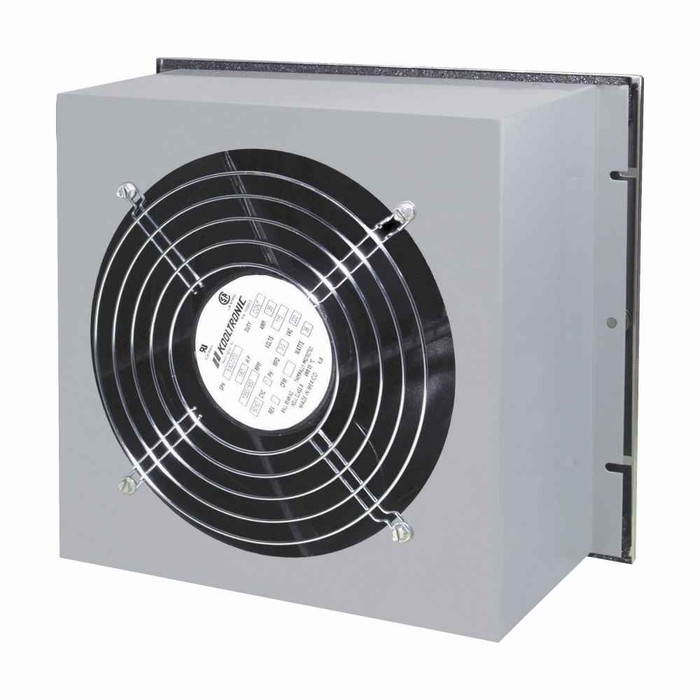

Eaton B-Line series filter fan, NEMA 1, Includes high airflow with low noise operations, Steel, NEMA 1 box fan, Versatile mounting, Filter fans
Manufacturer Resources
Product Specs
- Application:
- Includes high airflow with low noise operations
- Certifications:
- UL Listed
- Degree Of Protection:
- NEMA 1
- Product Category:
- Filter fans
- Product Height:
- 7.63 in
- Product Length Depth:
- 7.12 in
- Product Weight:
- 4 lb
- Product Width:
- 8.87 in
- Department:
- Electrical
- Product Group:
- Racks & Frames
- Product Subgroup:
- Racks
- Product Type:
- L-shaped rack mounting angles
- Product Details:
- L-shaped rack mounting angles
- Product Style:
- NEMA 1 box fan
- Product Material:
- Steel
- Product Length:
- 7.12 in
- Product Length:
- 7.12 in
B-LINE KP60 – Frequently Asked Questions
1) What cutout size do I need for the Eaton B-Line KP60 filter fan?
Plan your enclosure opening around the fan's overall footprint: the KP60 measures 8.87 x 7.63 x 7.12 inches (width x height x length/depth). The cutout itself is smaller than the outer frame, so lay the unit against the door panel and mark from the housing before you cut. At 4 lb it is light enough to mount on a standard sheet steel enclosure door without extra bracing.
2) Can I use the B-Line KP60 filter fan on an outdoor or washdown enclosure?
No. The KP60 is rated NEMA 1, which is indoor use only, protecting against incidental contact and falling dirt. It offers no protection against rain, hose-down, dust ingress or corrosive environments. For an outdoor NEMA 3R or a washdown NEMA 4/4X cabinet you need a fan assembly rated to match that enclosure, or the enclosure loses its rating the moment you cut the opening.
3) Is the Eaton B-Line KP60 filter fan UL Listed for use in a control panel?
Yes, the KP60 carries a UL Listing. That matters on institutional and municipal work where the panel build has to be inspected and everything penetrating the enclosure needs a listing behind it. The enclosure rating it suits is NEMA 1, indoor.
4) Will a filter fan quiet enough for an occupied office area work in a network closet?
That is the case the KP60 is built for. It is specified for high airflow with low noise operation, so it moves air through a NEMA 1 enclosure without the whine that gets complaints in an occupied space. The steel box fan style mounts in a cut opening in the enclosure door.
5) What part number do I order for the B-Line steel NEMA 1 filter fan?
Order model KP60 from Eaton's B-Line series. That single model number covers the steel NEMA 1 box fan; there are no finish or size options to specify alongside it.
6) Do I need an exhaust grille as well, or does the KP60 handle both intake and exhaust?
One fan alone will not ventilate a sealed enclosure. The KP60 pushes filtered air in; you still need a matching exit path, normally a filtered exhaust grille mounted low on the opposite side or the other end of the cabinet, so the air crosses the components rather than short-cycling. Keep the exhaust grille to the same NEMA 1 indoor rating as the fan.
7) What is the KP60 filter fan housing made of?
Steel. That is a difference worth knowing if you are used to plastic-housed filter fans: steel stands up better to knocks in a mechanical room or a shop-floor panel, and it lets you keep the assembly consistent with a steel enclosure door. Finish it into an indoor, NEMA 1 environment.
