B-Line Eaton series Flex tray ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$2,854.71

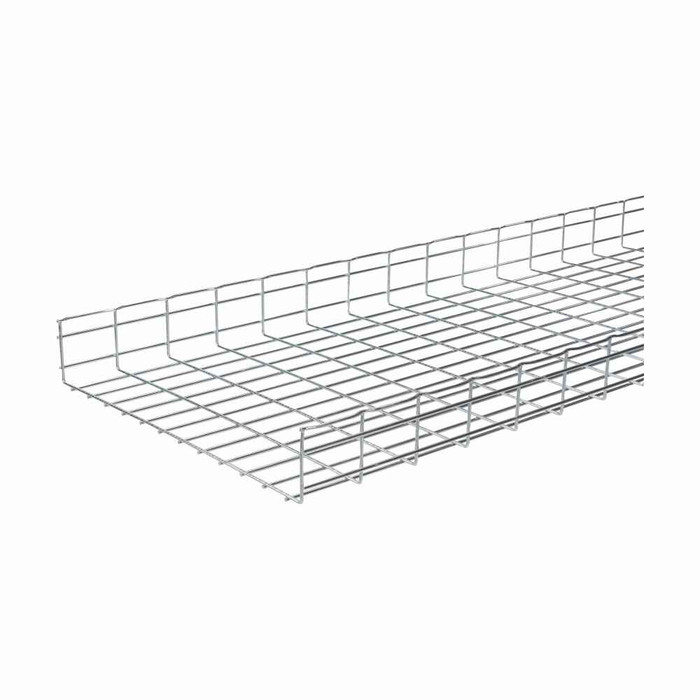

B-Line Eaton series Flex tray wire basket tray, Food preparation and wash down areas applications, Stainless steel, Steel, 63.5" actual area inside tr

B-Line Eaton series Flex tray wire basket tray, Food preparation and wash down areas applications, Stainless steel, Steel, 63.5" actual area inside tr

(No reviews yet) Write a Review

Model: FT4X16X10SS
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,854.71
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series Flex tray wire basket tray, Food preparation and wash down areas applications, Stainless steel, Steel, 63.5" actual area inside tray, 4" deep flex tray

Manufacturer Resources

Product Specs

Application:
Food preparation and wash down areas applications
Certifications:
CE
Product Height:
4.38 in
Product Length Depth:
118.312 in
Product Weight:
20.45 lb
Product Width:
16 in
Special Features:
63.5" area inside tray
Department:
Electrical
Product Type:
4" deep flextray
Product Finish:
Stainless steel
Product Details:
4" deep flextray
Product Material:
Steel

B-LINE FT4X16X10SS – Frequently Asked Questions

1) Is the B-Line FT4X16X10SS flex tray suitable for a food prep or wash down area?
That's exactly what the FT4X16X10SS is built for. Eaton B-Line lists it for food preparation and wash down area applications, and it is stainless steel finished, so it holds up to the repeated sanitation washdowns those rooms get. Open wire basket construction also drains and dries rather than trapping water the way a solid-bottom tray does.
2) What are the actual dimensions of the FT4X16X10SS wire basket tray?
The tray is 16 inches wide, 4.38 inches high, and 118.312 inches in stated length. It is catalogued as a 4 inch deep flextray, with 63.5 inches of actual area inside the tray for cable fill. Shipping weight of the section is 20.45 lb, light enough for one installer to set on trapeze hangers.
3) Is a 16 inch wide by 4 inch deep basket tray enough for my cable run?
Fill capacity is what decides it, and this section states 63.5 inches of actual area inside the tray across a 16 inch width and 4 inch depth. Total your cable outside diameters and cross-sectional areas against that figure plus whatever fill percentage your spec or inspector requires. If the bundle runs over, step up to a wider or deeper flextray section rather than stacking cable above the side wire.
4) Is this B-Line flex tray solid stainless or stainless-coated steel?
The material is listed as steel with a stainless steel finish. For corrosive or high-sanitation rooms that is the version you want over plain pre-galvanized wire basket, which will show rust at cut ends after repeated washdown.
5) What is the exact part number to order this 16 inch stainless flex tray?
Order Eaton B-Line part number FT4X16X10SS. That number encodes the 4 inch depth, 16 inch width, and SS stainless finish, which is how the adjacent widths and depths in the FT series are distinguished from each other.
6) Why choose wire basket tray over solid bottom cable tray in a commercial kitchen?
Open wire basket like this 4 inch deep flextray drains and air dries, which matters in food prep and wash down rooms where solid-bottom tray collects standing water and cleaning chemicals. It also field-cuts and bends to route around ductwork without fittings. Solid bottom or ventilated trough is the better call where you need physical shielding of the cable or a debris barrier over open food surfaces.
7) Does the B-Line FT4X16X10SS flextray carry any certification marking?
CE is the certification listed for this flextray section. That is the marking to cite if your submittal package asks for it.
