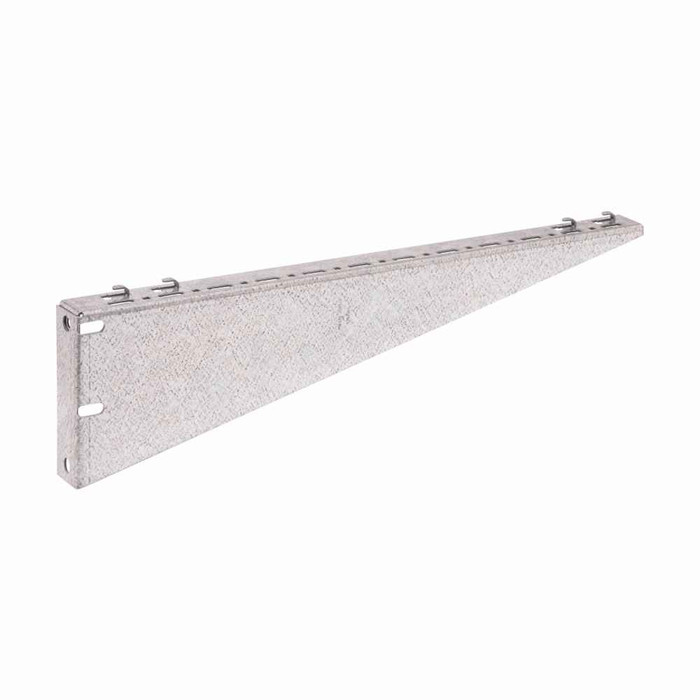

Eaton B-Line series Flextray wire basket tray, 16" width, Steel, Pre-galvanized, Shelf brackets
Manufacturer Resources
Product Specs
- Certifications:
- UL Classified
- Compliances:
- CSA
- Product Height:
- 3.44 in
- Product Length Depth:
- 17 in
- Product Weight:
- 1.7 lb
- Product Width:
- 16 in
- Department:
- Electrical
- Product Group:
- Mounting Hardware
- Product Subgroup:
- Brackets
- Product Type:
- Shelf brackets
- Product Finish:
- Pre-galvanized
- Product Details:
- Shelf brackets
- Product Material:
- Steel
B-LINE FTB16CS – Frequently Asked Questions
1) What size Flextray does the B-Line FTB16CS shelf bracket support?
The Eaton B-Line FTB16CS is sized for 16 inch wide Flextray wire basket tray. Its stated width is 16 inches, with a length/depth of 17 inches and a height of 3.44 inches. If your basket tray run is a different width, you need the bracket built for that width instead, not this one.
2) Is the FTB16CS bracket suitable for an indoor data center or an outdoor run?
The finish is pre-galvanized steel, which is a mill-galvanized coating intended for dry indoor environments such as data centers, telecom rooms and interior building spaces. For exterior runs, wash-down areas or corrosive environments, specify a hot-dip galvanized or stainless Flextray bracket instead.
3) Does the Eaton B-Line FTB16CS carry any listings for an electrical inspection?
It is UL Classified and CSA compliant. That is usually what an inspector or a spec writer wants to see on cable tray support hardware for a commercial or institutional job.
4) What is the exact part number to order this 16 inch Flextray shelf bracket?
Order Eaton B-Line part number FTB16CS. It is a single model, steel with a pre-galvanized finish, for 16 inch Flextray basket tray.
5) Does the FTB16CS come with mounting hardware or tray attachment clamps?
The FTB16CS is supplied as the shelf bracket itself. Anchors into the wall or strut, plus any tray-to-bracket hold-down hardware, are ordered separately to suit your substrate and your Flextray section.
6) Can I use a wall-mounted shelf bracket instead of trapeze hangers for basket tray?
A shelf bracket like the FTB16CS carries the tray off a wall or a strut channel on the wall, which keeps the ceiling clear and gives open access to the top of the tray for pulling cable. Trapeze hangers are the choice when the run is out in the middle of a room away from any wall, or where you want to stack multiple tiers from threaded rod. For a 16 inch wide Flextray run along a wall line, the bracket is the simpler support.
7) How heavy is each Flextray bracket, and do I need to account for that in my wall support layout?
Each FTB16CS bracket weighs 1.7 lb, so the brackets themselves add very little to the load on the wall. The controlling factor in your layout is the cable fill weight and your bracket spacing, not the hardware weight. The 17 inch depth is what determines how far the tray sits off the wall face.
