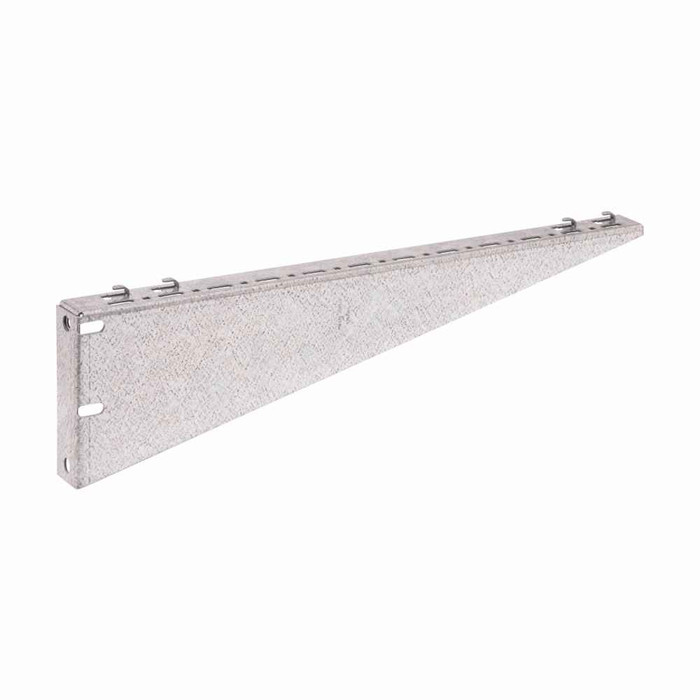

Eaton B-Line series Flextray wire basket tray, 6" width, Steel, Pre-galvanized finish, Shelf brackets
Manufacturer Resources
Product Specs
- Certifications:
- UL Classified
- Compliances:
- CSA
- Product Height:
- 2.66 in
- Product Length Depth:
- 7.16 in
- Product Weight:
- .5 lb
- Product Width:
- 6 in
- Department:
- Electrical
- Product Group:
- Mounting Hardware
- Product Subgroup:
- Brackets
- Product Type:
- Shelf brackets
- Product Finish:
- Pre-galvanized
- Product Details:
- Shelf brackets
- Product Material:
- Steel
B-LINE FTB06CS – Frequently Asked Questions
1) What size Flextray wire basket does the B-Line FTB06CS shelf bracket support?
The FTB06CS is sized for 6 inch wide Eaton B-Line Flextray wire basket tray. Bracket dimensions are 6 in width, 7.16 in length/depth and 2.66 in height, so the tray sits within the 6 inch span and the 7.16 inch depth carries it clear of the wall or strut face.
2) Is the B-Line FTB06CS bracket acceptable for a job that requires UL and Canadian listed cable tray support?
The FTB06CS shelf bracket is UL Classified and CSA compliant, so it can go into runs on both US and Canadian specified projects. That covers the bracket itself; the tray sections and any splices you pair with it carry their own listings.
3) Will a pre-galvanized Flextray bracket hold up in a damp mechanical room or parking garage?
Pre-galvanized steel is a dry to mildly humid indoor finish. It handles conditioned interiors, telecom rooms and covered mechanical spaces fine, but for washdown areas, exterior runs or corrosive process environments you want a hot-dip galvanized or stainless Flextray bracket instead. The FTB06CS is steel with a pre-galvanized finish.
4) Can I use a wall shelf bracket instead of trapeze hangers for a 6 inch wire basket tray run?
Wall brackets like the FTB06CS cantilever the tray off a wall or strut, which keeps the run tight to the structure and leaves the ceiling free. Trapeze hangers are the better choice when the run is out in open space away from a wall, when you need to stack multiple tiers, or when the tray is wider than the bracket will carry. For a single 6 inch basket following a wall, the bracket is the simpler and faster install.
5) What is the exact part number to order the 6 inch Flextray wall bracket?
Specify Eaton B-Line FTB06CS. That is the 6 inch pre-galvanized steel shelf bracket in the Flextray line, and it is the single model on the part, so there is no finish or size suffix to pick.
