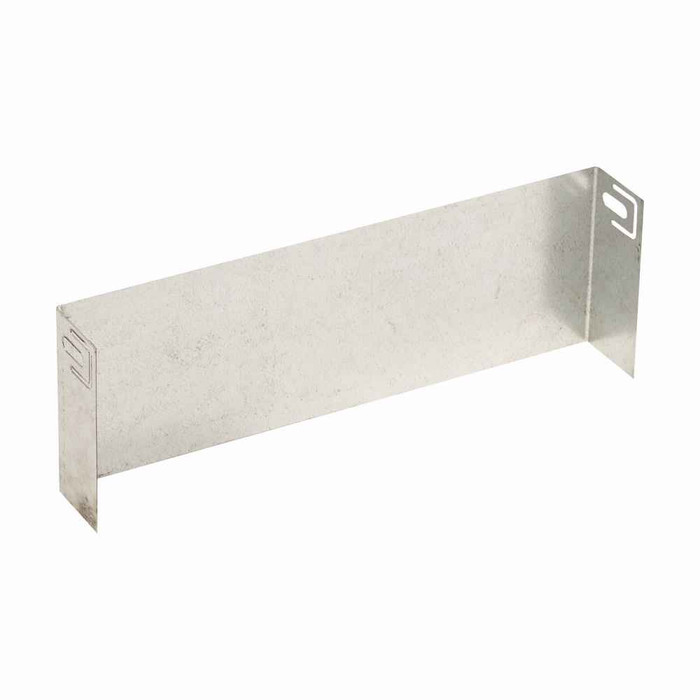

Eaton B-Line series Flextray wire basket tray, 4" X 6", Steel, Stainless steel type 316, Blind ends
Manufacturer Resources
Product Specs
- Certifications:
- UL Classified
- Compliances:
- CSA
- Product Height:
- 4 in
- Product Length Depth:
- 4 in
- Product Weight:
- .098 lb
- Product Width:
- 6 in
- Department:
- Electrical
- Product Type:
- Blind ends
- Product Finish:
- Stainless steel type 316
- Product Details:
- Blind ends
- Product Material:
- Steel
B-LINE FT BE 4X6 SS6 – Frequently Asked Questions
1) What size Flextray does the B-Line FT BE 4X6 SS6 blind end fit?
The Eaton B-Line Flextray blind end, part number FT BE 4X6 SS6, is sized for a 4 inch deep by 6 inch wide wire basket tray run. It is a cap for the cut end of that tray section, not a tray section itself. If your basket run is a different depth or width, you need the blind end matching that profile.
2) Is the FT BE 4X6 SS6 blind end suitable for a corrosive or washdown area?
It is steel with a Type 316 stainless finish, which is the grade specified for chloride exposure, food and beverage washdown, coastal, and chemical process areas. Pair it with Type 316 stainless Flextray sections so you are not mixing dissimilar finishes in the same run.
3) Is the Eaton B-Line Flextray blind end UL listed or CSA compliant for an inspected install?
It is UL Classified and carries CSA compliance. That is what an inspector or a spec engineer on a hospital, data center, or industrial job usually wants to see documented for cable tray accessories.
4) What does a wire basket tray blind end actually do on the job?
A blind end caps the exposed cut end of a wire basket tray run. Field cutting basket tray leaves sharp wire stubs; the blind end covers them so cable is not damaged during pulls and so nobody gets cut servicing the run. It also finishes the end of a run that stops short of a wall or enclosure.
5) How many blind ends should I order for a basket tray run?
One per exposed cut end. A run that terminates in open air at both ends takes two; a run that dead ends into a wall, panel, or enclosure at one side takes one. FT BE 4X6 SS6 covers a single 4 x 6 profile end.
6) Can I use a Type 316 stainless blind end on a galvanized or zinc plated Flextray run?
It will physically cap a 4 x 6 basket profile, but mixing a Type 316 stainless cap onto a zinc or pre-galvanized run gives you a dissimilar metal contact point and defeats the reason you would spec 316 in the first place. Match the finish across the run, or spec the blind end in the same finish family as your tray.
7) Do I need tools or extra hardware to install the FT BE 4X6 SS6 blind end?
The blind end is a light accessory, weighing about .098 lb, that attaches over the cut end of the 4 x 6 basket tray. Plan on your standard Flextray fasteners or clips for the attachment; the cap itself is the item being ordered here.
