B-Line Eaton series hanging sy...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$74.27
$32.79
B-Line Eaton series hanging system, KwikWire accessory features, Assembly only, no more sawing, filing, fixing nuts, Bolt 3⁄8-16 thread termination, 3

B-Line Eaton series hanging system, KwikWire accessory features, Assembly only, no more sawing, filing, fixing nuts, Bolt 3⁄8-16 thread termination, 3

(No reviews yet) Write a Review

Model: BKB38-094-240
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$74.27
$32.79
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series hanging system, KwikWire accessory features, Assembly only, no more sawing, filing, fixing nuts, Bolt 3⁄8-16 thread termination, 3/32" wire max, 240" wire length

Manufacturer Resources

Product Specs

Application:
Install without drilling into existing structure
Certifications:
cULus Listed
Product Diameter:
.09375 in
Product Height:
240 in
Product Weight:
6.272 lb
Special Features:
Asembly only ,no more sawing, filing,fixing nuts
Wire Diameter Max:
.093 in
Wire Length:
240 in
Department:
Electrical
Product Group:
Fasteners
Product Subgroup:
Washers / Nuts / Bolts / Screws
Product Type:
Bolt 3⁄8-16 thread termination
Product Model:
KwikWire accessory features
Product Details:
Bolt 3⁄8-16 thread termination

B-LINE BKB38-094-240 – Frequently Asked Questions

1) What does the Eaton B-Line KwikWire BKB38-094-240 kit actually terminate into at the structure end?
It ends in a 3/8-16 threaded bolt termination, so it lands on any 3/8-16 tapped insert, beam clamp, or threaded connection point already in the structure. That thread size is the common 3/8 inch UNC electrical hanging thread, so it mates with standard 3/8-16 hardware without adapters.
2) Is the KwikWire BKB38-094-240 hanging system listed for electrical use?
It is cULus Listed, so it is recognized for both US and Canadian installations. That matters on institutional and commercial jobs where inspectors want a listed support assembly rather than field-fabricated hanging hardware.

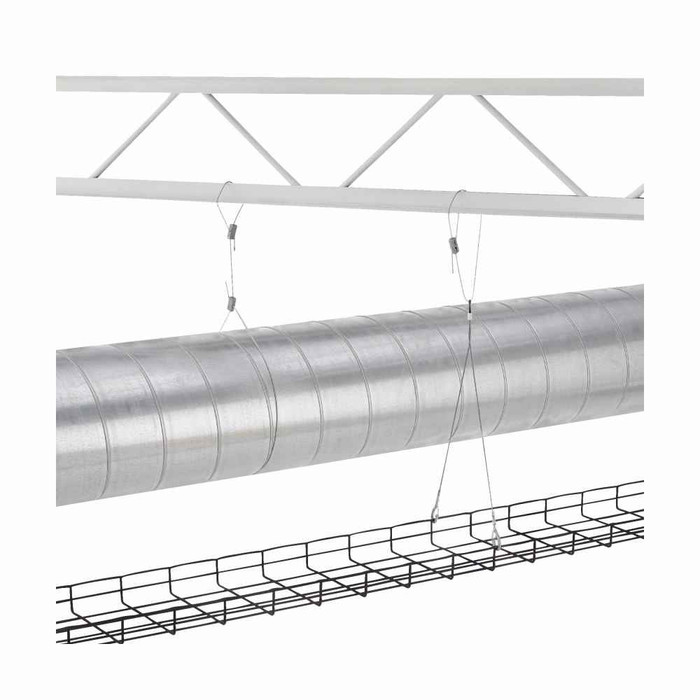

3) Can I hang light fixtures or cable tray with KwikWire without drilling the deck?
Yes, that is the point of it. The KwikWire assembly is made to install without drilling into the existing structure, so you attach to existing steel or an existing 3/8-16 connection point instead of anchoring fresh holes in concrete or deck. Useful in tenant retrofits and in buildings where drilling the structure needs approval.
4) My drop is only 4 feet. Is a 240 inch KwikWire the wrong part?
It will work, since the excess wire is simply cut off after the gripper is set, but you are paying for and discarding about 16 feet of cable on every hanger. For short drops repeated across a job, order a shorter wire length in the same 3/8-16 bolt termination style and keep the 240 inch version for high bays and open deck.
