Eaton B-Line series hanging system, KwikWire wire rope kit, Y Toggle termination, 80" wire length
Manufacturer Resources
Product Specs
- Certifications:
- cULus Listed
- Product Diameter:
- .0625 in
- Product Height:
- 80 in
- Product Weight:
- 1.392 lb
- Special Features:
- Includes Assembly and BKC100 clip
- Wire Length:
- 80 in
- Department:
- Electrical
- Product Type:
- Y Toggle termination
- Product Model:
- KwikWire wire rope
- Product Size:
- 18 inch leg
- Product Details:
- Y Toggle termination
B-LINE BKYT18-063-80K – Frequently Asked Questions
1) How far below the structure will an 80 inch KwikWire Y toggle kit drop my fixture?
The wire rope is 80 inches overall, so the maximum drop is a bit under 80 inches once you account for the anchor at the top and the 18 inch Y legs at the bottom. KwikWire is a locking-grip system, so you pull the wire through to any shorter length you need and trim the tail. Treat 80 inches as the ceiling height limit, not a fixed dimension.
2) Why would I use a Y toggle wire rope hanger instead of a single straight drop wire?

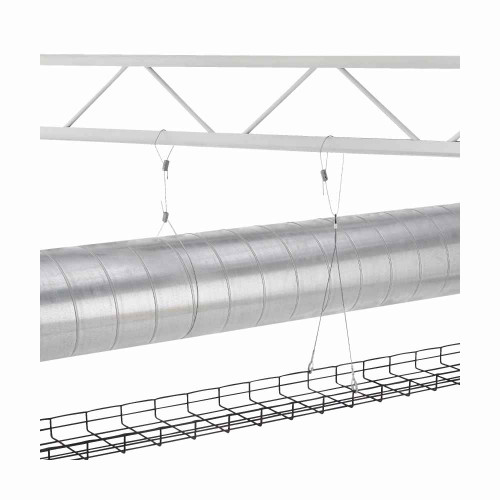

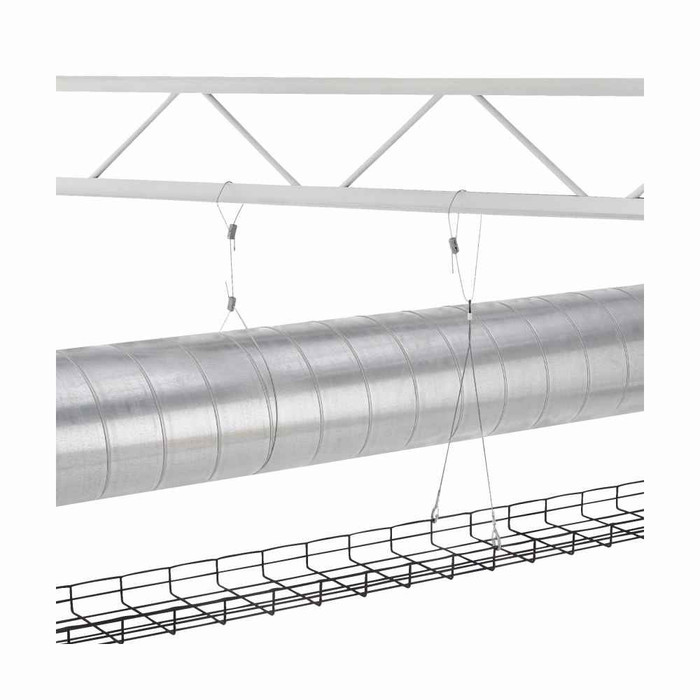

A Y termination splits into two legs (18 inches each here) so one drop wire picks up two points on the load. That is what you want on a linear fixture, cable tray, or duct run that would spin or tilt on a single-point hang. If the item you are hanging has one central hanging point and no rotation concern, a straight single-leg KwikWire drop is simpler.
3) Do I need to order anything else to hang a fixture with this KwikWire kit?
The wire, the Y toggle end and the BKC100 clip come in the kit. What is not in the box is the structural attachment at the top, which depends on what you are anchoring to: a beam clamp for steel, a toggle or anchor for concrete deck, or a hook. Specify that separately to suit the structure.
4) How much does one KwikWire Y toggle kit weigh for a freight or takeoff count?
Each BKYT18-063-80K kit weighs 1.392 lb complete with the wire, Y toggle and BKC100 clip. Multiply that out for a fixture-count takeoff on a large lighting or tray package.
