Eaton B-Line series hanging system, KwikWire wire rope, Y Toggle termination, 40" wire length, 12" leg
Manufacturer Resources
Product Specs
- Certifications:
- cULus Listed
- Product Diameter:
- .0625 in
- Product Height:
- 40 in
- Product Weight:
- .992 lb
- Special Features:
- Includes Assembly and BKC100 clip
- Wire Length:
- 40 in
- Department:
- Electrical
- Product Type:
- Y Toggle termination
- Product Model:
- KwikWire wire rope
- Product Size:
- 12 inch leg
- Product Details:
- Y Toggle termination
B-LINE BKYT12-063-40K – Frequently Asked Questions
1) What does the 40 inch wire length and 12 inch leg mean on the B-Line KwikWire BKYT12-063-40K Y toggle kit?
The BKYT12-063-40K is a two-legged (Y) hanger. The main wire rope run is 40 inches, and each branch leg off the Y is 12 inches. So you get 40 inches of drop from the structure before the wire splits into the two 12 inch legs that pick up the fixture or tray at two points. Plan your drop height around the 40 inch main run, since the legs are fixed at 12 inches.
2) Is the B-Line KwikWire hanging system listed for use in electrical installations?
Yes. The KwikWire Y toggle assembly is cULus Listed, which is what an electrical inspector or facility spec will typically ask for on a suspended support system for lighting, cable tray or similar electrical loads.
3) Does the B-Line BKYT12-063-40K come with everything needed to hang, or do I have to order clips separately?
The kit ships complete with the assembly and a BKC100 clip, so you have the attachment hardware in the box along with the wire rope and Y termination. What it does not include is the anchor into your structure, so you still need the appropriate concrete anchor, beam clamp or deck fastener for the building you are attaching to.
4) What is a Y toggle termination on a wire rope hanger and when would I use it instead of a single leg?

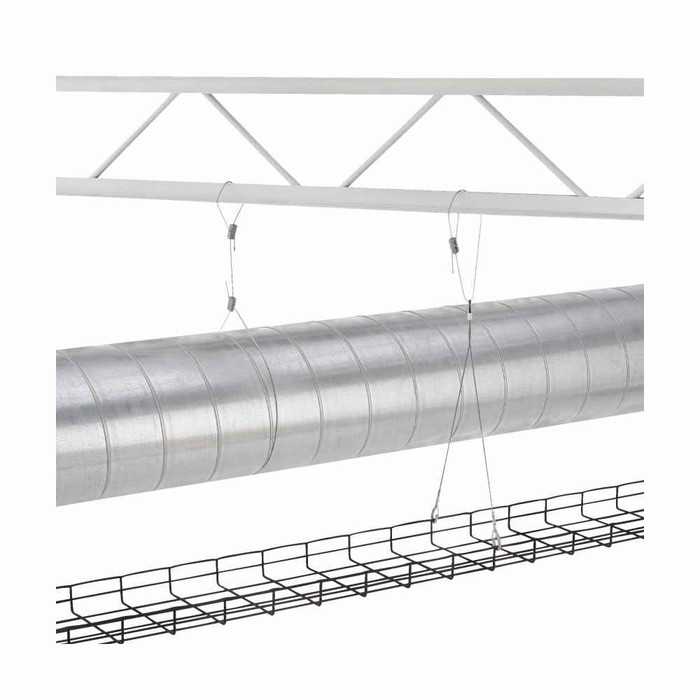

A Y toggle splits one drop into two legs, so a single anchor point in the deck supports two pick-up points on the load. Electricians use it to hang linear lighting, cable tray or raceway level off one attachment instead of setting two separate anchors. If you are hanging a single-point load such as a small pendant or a box, a straight single-leg KwikWire drop is the simpler choice. The toggle end is what lets you feed the wire through a slot or hole and let it fall crosswise to bear.
5) I need to hang fixtures lower than 40 inches below the deck. Can I shorten this KwikWire assembly on site?
The KwikWire system grips the rope at whatever length you pull through, so a shorter drop than 40 inches is just a matter of taking up the slack at the gripper and trimming the tail. You cannot go longer than the 40 inch rope supplied, and the 12 inch Y legs are fixed. For deeper drops, order a longer wire length in the same KwikWire family rather than splicing this one.
6) What is the exact part number to order the 40 inch, 12 inch leg B-Line KwikWire Y toggle hanger?
Order Eaton B-Line part BKYT12-063-40K. Reading the number: BKYT is the KwikWire Y toggle, 12 is the leg length in inches, 063 is the .0625 inch rope diameter, and 40 is the wire length in inches. Handy if you are matching a drawing callout or standardizing a hanger across a building.
7) How much does one B-Line KwikWire Y toggle hanger kit weigh?
Each kit weighs .992 lb. That matters when you are pricing out a freight order of several hundred hangers for a lighting package, and it is a negligible dead load added to the supported assembly.
