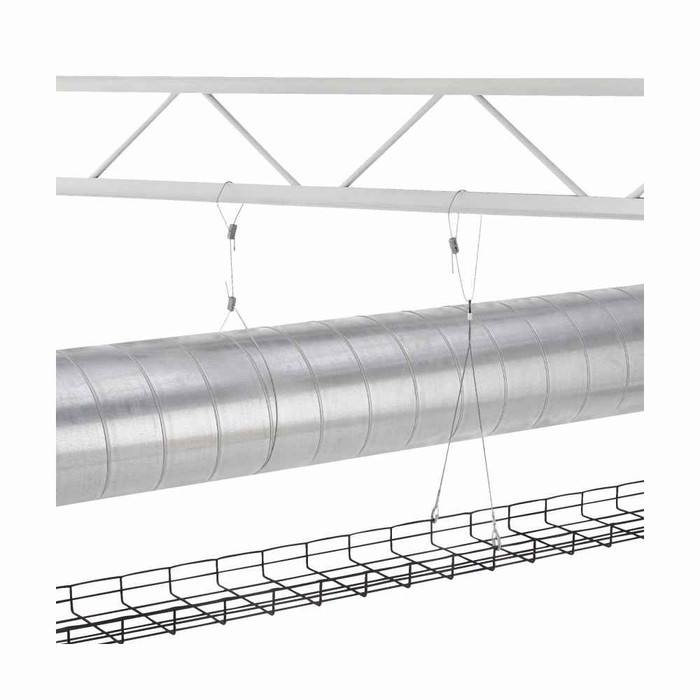

Eaton B-Line series hanging system, KwikWire wire rope, Y Toggle termination, 40" wire length, 30" leg
Manufacturer Resources
Product Specs
- Certifications:
- cULus Listed
- Product Diameter:
- .0625 in
- Product Height:
- 40 in
- Product Weight:
- 1.328 lb
- Wire Length:
- 40 in
- Department:
- Electrical
- Product Type:
- Y Toggle termination
- Product Model:
- KwikWire wire rope
- Product Size:
- 30 inch leg
- Product Details:
- Y Toggle termination
B-LINE BKYT30-063-40 – Frequently Asked Questions
1) Is this B-Line KwikWire hanger listed for electrical work in a commercial building?
Yes, the KwikWire Y Toggle hanger is cULus Listed, so it carries both US and Canadian listings. That is the line an electrical inspector or an institutional spec looks for when fixtures, cable tray or raceway are being suspended on wire rope rather than rigid rod.
2) How much drop do I get from a 40 inch KwikWire wire rope hanger?
The rope is 40 inches overall with a 30 inch leg on the Y, so your usable vertical drop is limited by that 40 inch length minus whatever the legs consume once they spread. For deeper plenums you need a longer wire length in the same KwikWire family rather than trying to stretch this one, since the wire is factory terminated and not field lengthened.
3) Does the toggle end mean I can hang this from a hollow deck or a drilled hole overhead?
The termination is a toggle, which is the anchor style that passes through a drilled hole and then flips to bear on the far side of the material, so it suits hollow structure and prepared holes rather than a beam clamp or a threaded insert. If your structure is exposed steel bar joist or you need to clamp to a flange, a different KwikWire termination style is the right pick.
4) What part number do I order for the 40 inch, 30 inch leg Y toggle KwikWire?
Order Eaton B-Line BKYT30-063-40. The number reads back the configuration: Y toggle, 30 inch leg, .0625 inch rope, 40 inch wire length. Adjacent KwikWire numbers change the leg or wire length, so confirm both figures against your plenum depth and fixture spacing before you commit to a quantity.
5) How heavy is a single B-Line Y toggle KwikWire assembly for shipping and takeoff counts?
Each assembly weighs 1.328 lb. If you are pricing out a run of fixtures and buying one hanger per drop point, that figure is what to multiply for your takeoff and freight estimate.
