B-Line Eaton series open rack...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$296.46
$293.45
B-Line Eaton series open racks, 11 Gauge steel, Plates, and #12-24 mounting hardware, Mounting spaces: 6, Flat black powder coat, 23" Equipment rack

B-Line Eaton series open racks, 11 Gauge steel, Plates, and #12-24 mounting hardware, Mounting spaces: 6, Flat black powder coat, 23" Equipment rack

(No reviews yet) Write a Review

Model: SB576A06FB
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$296.46
$293.45
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series open frame racks, 11 Gauge steel, (2) Plates, and #12-24 mounting hardware, Mounting spaces: 6, Flat black powder coat, 23" Equipment rack to 19" panel mount adapter plate

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Product Height:
10.44 in
Product Length Depth:
2 in
Product Weight:
2.2 lb
Product Width:
.13 in
Department:
Electrical
Product Model:
23" equipment rack to 19" panel mount adapter plate
Product Finish:
Flat black powder coat
Product Material:
Steel

B-LINE SB576A06FB – Frequently Asked Questions

1) What does the B-Line SB576A06FB adapter plate actually do?

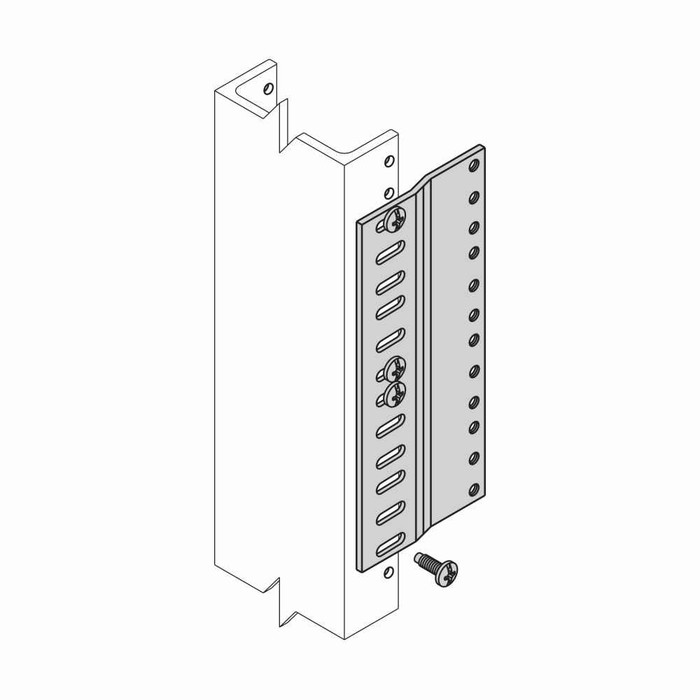

It adapts a 23 inch equipment rack to hold standard 19 inch rack-mount panels. You get a set of two plates plus #12-24 mounting hardware, giving 6 rack mounting spaces of usable panel height. It is not a rack itself, it is the reducer kit that lets 19 inch gear live in a 23 inch open frame.
2) Will this fit a standard 19 inch two-post rack?
No. The SB576A06FB plate set is made to reduce a 23 inch (telecom width) rack down to 19 inch panel spacing. On a rack whose rails are already 19 inch on centers there is nothing to adapt, and the plates will not line up.
3) What screw size do the B-Line SB576A06FB plates use?
#12-24 threads, and the mounting hardware is supplied with the plates. That is the standard tapped-rail thread for telecom and open frame racks, so the panels you mount will also want #12-24 screws.
4) Do I need one plate or two to convert a 23 inch rack?
Two, and both come in the kit. One plate mounts to each rack rail so the pair creates the 19 inch mounting width. Ordering one SB576A06FB covers both sides of a 6-space section.
5) Is the B-Line 23 to 19 inch adapter plate heavy gauge enough for switch gear?
The plates are 11 gauge steel, the same gauge used for the Eaton B-Line open frame rack rails themselves, finished in flat black powder coat. Total kit weight is 2.2 lb.
6) Will the black finish match my existing Eaton B-Line open frame rack?
Flat black powder coat, the same finish B-Line uses on its black open frame racks, so it blends on a black rack in an exposed telecom room. If your frame is a different color, the plates will still fit but will not match visually.
