B-Line Eaton series open rack...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$296.46
$293.45
B-Line Eaton series open racks, 11 Gauge steel, Plates, and #12-24 mounting hardware, Mounting spaces: 6, Telco gray powder coat, 23" Equipment rack

B-Line Eaton series open racks, 11 Gauge steel, Plates, and #12-24 mounting hardware, Mounting spaces: 6, Telco gray powder coat, 23" Equipment rack

(No reviews yet) Write a Review

Model: SB576A06TG
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$296.46
$293.45
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series open frame racks, 11 Gauge steel, (2) Plates, and #12-24 mounting hardware, Mounting spaces: 6, Telco gray powder coat, 23" Equipment rack to 19" panel mount adapter plate

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Product Height:
10.44 in
Product Length Depth:
2 in
Product Weight:
2.2 lb
Product Width:
.13 in
Department:
Electrical
Product Model:
23" equipment rack to 19" panel mount adapter plate
Product Finish:
Telco gray powder coat
Product Material:
Steel
Product Length:
2 in

B-LINE SB576A06TG – Frequently Asked Questions

1) What does the Eaton B-Line SB576A06TG adapter plate actually do?

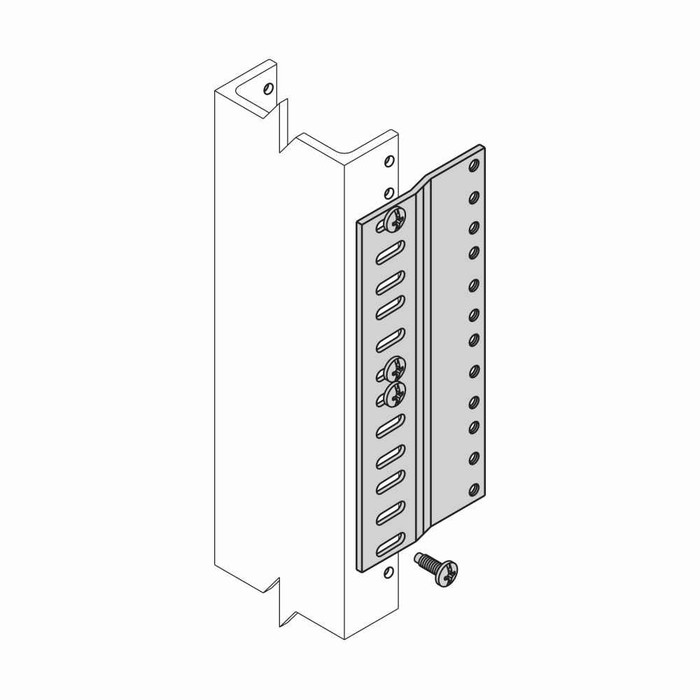

It adapts a 23 inch equipment rack to accept 19 inch panels. The SB576A06TG is a panel mount adapter plate, not a rack itself. You get two plates (one per rack rail) plus #12-24 mounting hardware, and they give you 6 mounting spaces of 19 inch panel width inside a 23 inch telco frame.
2) Will the SB576A06TG plates work in a standard 19 inch rack?
No. These plates are made to sit in a 23 inch telco-width rack and bring the mounting rails in to 19 inch spacing. In a rack that is already 19 inch there is nothing to adapt, and the plates have no place to bolt. Use them only on 23 inch open frame racks.
3) How much rack space does the B-Line SB576A06TG adapter plate cover?
Six mounting spaces, which is 6U of usable 19 inch panel height. Each plate measures 10.44 inches on its long dimension, so figure roughly that much vertical run per pair. If you need more than 6U converted, you order more sets.
4) What screw thread do the B-Line 23 inch to 19 inch adapter plates use?
#12-24 mounting hardware ships with the plates. That is the same thread B-Line uses on its open frame racks, so your panel screws and the plate-to-rail screws stay on one size. If your gear came with 10-32 screws, you will need #12-24 in their place.
5) Do I need one SB576A06TG or two to mount a 19 inch panel?
One order covers it. The SB576A06TG ships as a set of two plates, one for each side of the rack, plus the #12-24 hardware. A 19 inch panel needs both sides supported, so a single set handles 6U of panel on one rack.
6) Are the B-Line SB576A06TG adapter plates heavy enough gauge for loaded equipment?
They are 11 gauge steel, the same gauge as the B-Line open frame racks they mount into, so the panel load transfers into the rack uprights rather than into a thin bracket. Each plate weighs 2.2 lb.
7) Will the telco gray adapter plates match my existing B-Line open frame rack?
Finish is telco gray powder coat, the standard B-Line open rack color, so a mixed-age installation reads as one assembly. If your frames are black, the gray plates will stand out against them.
8) How much depth do the SB576A06TG plates add inside the rack?
Stated dimensions are 10.44 in, 2 in and .13 in, the .13 in being the plate stock thickness and the 2 in the flange. They sit flush against the rack rail rather than pushing your panels forward any meaningful distance, so cable management behind the panel is unaffected.
