B-Line Eaton series open rack...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$325.69
B-Line Eaton series open racks, 11 Gauge steel, Plates, and #12-24 mounting hardware, Mounting spaces: 7, Telco gray powder coat, 23" Equipment rack

B-Line Eaton series open racks, 11 Gauge steel, Plates, and #12-24 mounting hardware, Mounting spaces: 7, Telco gray powder coat, 23" Equipment rack

(No reviews yet) Write a Review

Model: SB576A07TG
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$325.69
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series open frame racks, 11 Gauge steel, (2) Plates, and #12-24 mounting hardware, Mounting spaces: 7, Telco gray powder coat, 23" Equipment rack to 19" panel mount adapter plate

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Product Height:
12.19 in
Product Length Depth:
2 in
Product Weight:
2.5 lb
Product Width:
.13 in
Department:
Electrical
Product Model:
23" equipment rack to 19" panel mount adapter plate
Product Finish:
Telco gray powder coat
Product Material:
Steel
Product Length:
2 in

B-LINE SB576A07TG – Frequently Asked Questions

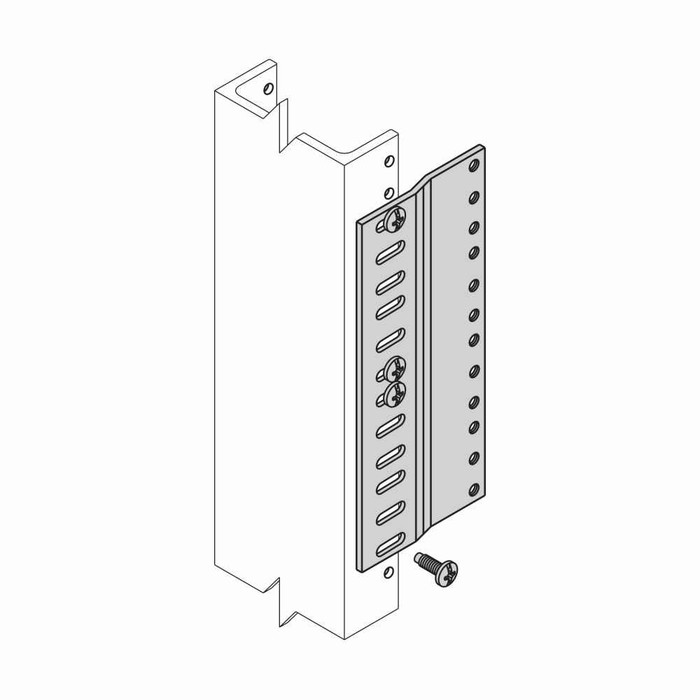

1) What does the Eaton B-Line SB576A07TG adapter plate actually do?
It adapts a 23 inch equipment rack to accept 19 inch panels. The part is a pair of plates that mount to the 23 inch rails and present a 19 inch mounting pattern, giving you 7 mounting spaces of usable panel height. If your gear is 19 inch EIA and your frame is a 23 inch telco rack, this is the piece that bridges them.
2) How much rack height do these 23 inch to 19 inch adapter plates give me?
Seven mounting spaces, which is 7 rack units of 19 inch panel space. Each plate measures 12.19 inches on its long dimension. Anything taller than 7U needs a second set of plates or a different adapter.
3) Does the SB576A07TG come with the screws to mount equipment?
Yes, #12-24 mounting hardware ships with the plates, and the set includes two plates (one for each side of the rack). #12-24 is the standard thread on B-Line telco racks, so the same screws work for fastening the plates to the rails and hanging panels on them.
4) Can I use the SB576A07TG the other way around, to put 23 inch panels in a 19 inch rack?
No. The plates go the narrow direction only: they mount inside a 23 inch equipment rack and reduce the opening to a 19 inch panel pattern. A 23 inch panel will not fit a 19 inch frame, and no adapter widens the frame itself.
5) What color are the B-Line 19 inch adapter plates, and will they match my existing telco rack?
Telco gray powder coat, the standard B-Line open frame rack finish. If your existing racks and cable management are B-Line telco gray, these plates match without a repaint.
6) What part number should I order for a 7U 23 to 19 inch rack adapter from B-Line?
SB576A07TG. That single model number covers the pair of plates, the #12-24 hardware, the 7 mounting spaces, and the telco gray finish, so there are no suffixes or handing to specify.
