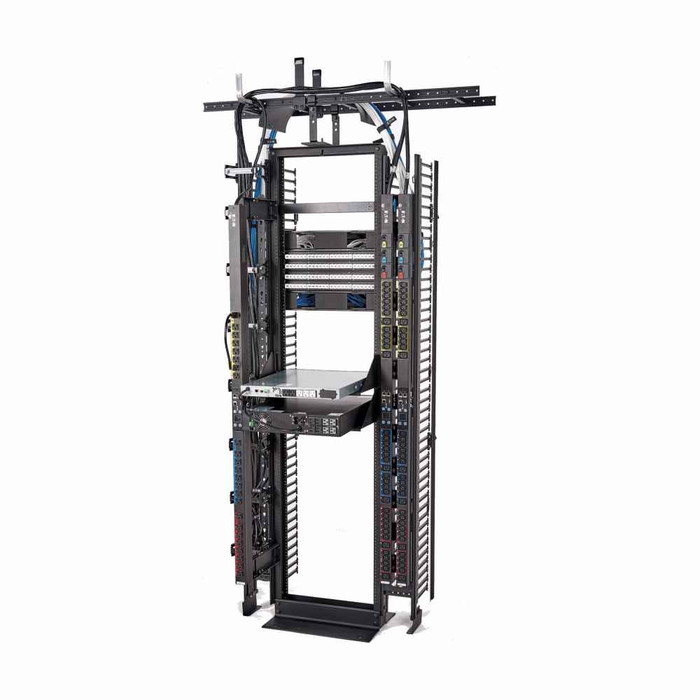

Eaton B-Line series open frame racks, Flat black powder coat finish, Shelf and sliding keyboard drawer
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Product Height:
- 4.75 in
- Product Length Depth:
- 15 in
- Product Weight:
- 13.5 lb
- Product Width:
- 19 in
- Department:
- Electrical
- Product Model:
- Shelf and sliding keyboard drawer
- Product Finish:
- Flat black powder coat
- Product Material:
- Aluminum
B-LINE SB7441915FB – Frequently Asked Questions
1) Will the B-Line SB7441915FB shelf fit a standard 19-inch equipment rack?
Yes. The Eaton B-Line shelf with sliding keyboard drawer is 19 inches wide, which is the standard rack-mount width for open frame relay racks and enclosures. Depth is 15 inches and the mounting height is 4.75 inches, so plan on three rack spaces of clearance at 1.75 inches each.
2) How much depth do I need behind the rack rails for this keyboard shelf?
The shelf projects 15 inches back from the mounting rails, so you need at least that much clear depth in the rack bay, plus room for the drawer to slide forward in front of the rails. On a two-post open frame rack with no rear frame, the 15 inch depth is unobstructed; in a cabinet, check that cabling or a rear-mounted PDU is not inside that 15 inch envelope.
3) Is the B-Line SB7441915FB rack shelf steel or aluminum?
Aluminum, finished in flat black powder coat. At 13.5 pounds it is light enough for one person to hang on the rails while starting the mounting screws, and the powder coat gives a matte black appearance that matches black-finished open frame racks and cabinets.
4) Do I need a fixed shelf or a shelf with a sliding keyboard drawer in a network rack?
Pick the sliding keyboard drawer version, model SB7441915FB, when the rack has a local console: the top surface holds a monitor or KVM while the drawer pulls out for a keyboard and pushes back flush when you are done, so nothing sits in the aisle. A plain fixed shelf is the better choice if you only need a platform for a non-rackmount switch, media converter, or UPS and never type at the rack.
5) Will this black shelf match my existing black B-Line open frame racks?
It is finished in flat black powder coat, the same finish B-Line uses across its black open frame rack line, so it reads as a matte non-reflective black rather than a gloss. If your existing racks are the black powder coat version, the shelf will blend; if they are clear aluminum or grey, it will contrast.
