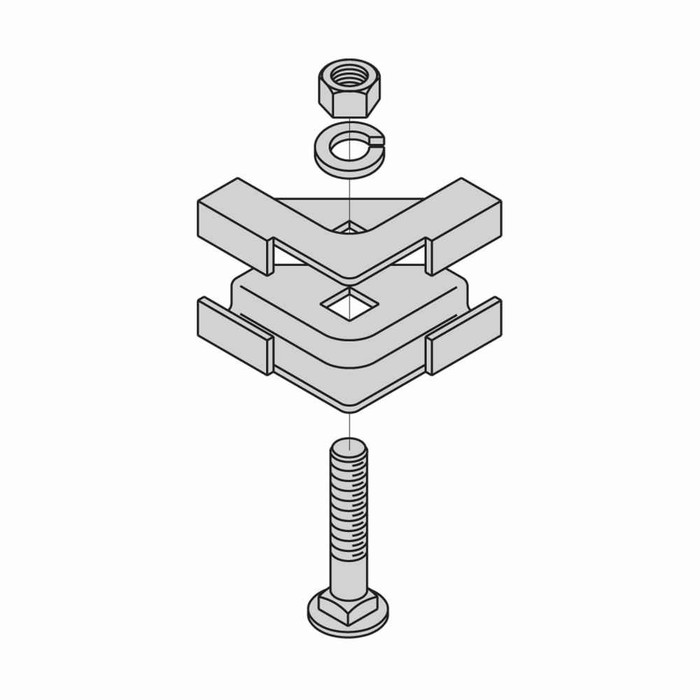

Eaton B-Line series runway splice, Used to connect runway stringers 0° to 90° angle, includes one (1) clamp and hardware, Runway adjustable junction splice clamp, ASTM A570 structural steel, Black zinc
Manufacturer Resources
Product Specs
- Application:
- Used to connect runway stringers 0 ° to 90 ° angle
- Certifications:
- UL Listed
- Material Details:
- Black zinc ASTM A570 steel
- Product Height:
- 2 in
- Product Length Depth:
- 1.5 in
- Product Weight:
- .7 lb
- Product Width:
- .62 in
- Special Features:
- includes one (1) clamp and hardware
- Department:
- Electrical
- Product Group:
- Clamps & Supports
- Product Subgroup:
- Clamps
- Product Type:
- Runway adjustable junction splice clamp
- Product Details:
- Runway adjustable junction splice clamp
B-LINE SB2103A2BZ – Frequently Asked Questions
1) Can the B-Line SB2103A2BZ runway splice join cable runway stringers at an angle, or only in a straight line?
The SB2103A2BZ adjustable junction splice clamp connects runway stringers anywhere from 0 degrees to 90 degrees, so it handles straight in-line splices, corners, and any intermediate angle where a runway branches off. That is what the "adjustable junction" in the name refers to: you set the angle at install rather than ordering a fixed elbow.
2) What comes in the box with the B-Line SB2103A2BZ splice kit, or do I need to buy bolts separately?
Each SB2103A2BZ is supplied as one clamp plus its mounting hardware, so no separate bolt pack is needed for the clamp itself. Note it is one clamp per unit, so count the number of stringer junctions in your runway layout and order accordingly rather than assuming a pair per joint.
3) Is the B-Line runway splice clamp UL Listed for a data center or telecom room install?
Yes, the SB2103A2BZ carries a UL Listed marking, which is generally what an inspector or a spec writer wants to see on cable runway support hardware in a commercial equipment room.
4) What is the B-Line SB2103A2BZ splice clamp made of, and will the black zinc finish hold up indoors?
It is ASTM A570 structural steel with a black zinc finish. A570 is a hot-rolled carbon structural steel, so the clamp carries load rather than just spacing parts, and the black zinc gives corrosion protection plus a finish that matches typical black runway and ladder rack in a telecom or equipment room.
5) What is the correct part number to order for a B-Line adjustable runway junction splice in black zinc?
Order Eaton B-Line model SB2103A2BZ. That single model number covers the adjustable junction splice clamp in black zinc; there are no finish or size options to specify with it.
