You may also like
B-Line Eaton series runway splice, Used to connect runway stringers 0° to 90° angle, includes one clamp and hardware, Runway adjustable junction spli
Model: BLN-SB2103A2BZ
Eaton B-Line series runway splice, Used to connect runway stringers 0° to 90° angle, includes one (1) clamp and hardware, Runway adjustable junction splice clamp, ASTM A570 structural steel, Black...
B-LINE
$168.79
$140.79
B-Line Eaton series runway splice, Used to connect runway stringers 0° to 90° angle, Runway mitering reended, Runway adjustable junction splice clamp,
Model: BLN-SB167YZ
Eaton B-Line series runway splice, Used to connect runway stringers 0° to 90° angle, Runway mitering recommended, Runway adjustable junction splice clamp, ASTM A570 structural steel, Yellow zinc
B-LINE
$104.24
$64.46
B-Line Eaton series runway splice, Used to connect runway stringers 0° to 90° angle, Runway adjustable junction splice clamp, ASTM A570 structural ste
Model: BLN-SB2103A2YZ
Eaton B-Line series runway splice, Used to connect runway stringers 0° to 90° angle, Runway adjustable junction splice clamp, ASTM A570 structural steel, Yellow zinc finish
B-LINE
$168.79
$140.79
B-Line Eaton series runway splice, Used to connect runway stringers, kit includes two clamps and hardware, Cable runway butt-splice clamp and kit, AST
Model: BLN-SB2107BZ
Eaton B-Line series runway splice, Used to connect runway stringers, kit includes two clamps and hardware, Cable runway butt-splice clamp and kit, ASTM A570 structural steel, Black zinc
B-LINE
$89.57
$47.50
B-Line Eaton series runway splice, Used to connect runway stringers, kit includes two clamps and hardware, Cable runway butt-splice clamp and kit, ste
Model: BLN-SB21072BZ
Eaton B-Line series runway splice, Used to connect runway stringers, kit includes two clamps and hardware, Cable runway butt-splice clamp and kit, steel, Black zinc
B-LINE
$90.67
$47.50

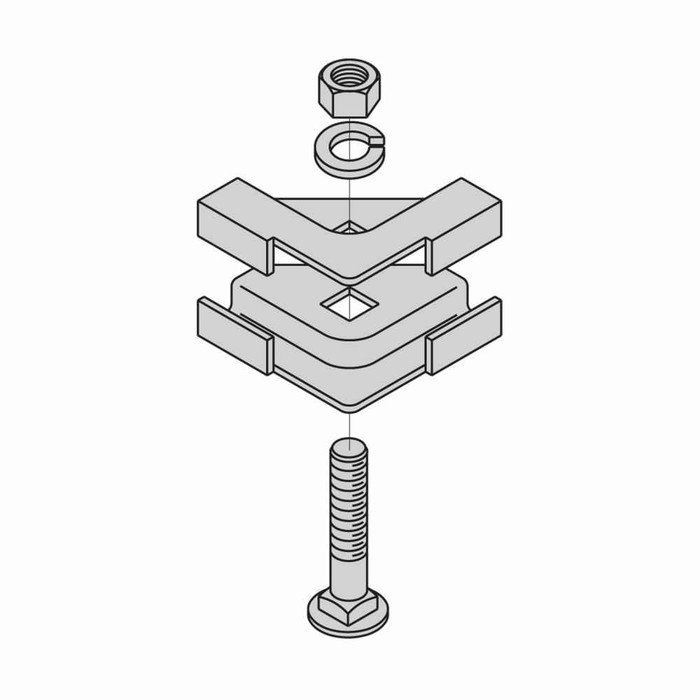

Eaton B-Line series runway splice, Used to connect runway stringers 0° to 90° angle, kit includes two (2) clamps and hardware, Runway adjustable junction splice clamp, ASTM A570 structural steel, Black zinc
Manufacturer Resources
Product Specs
- Application:
- Used to connect runway stringers 0 ° to 90 ° angle
- Certifications:
- UL Listed
- Material Details:
- Black zinc ASTM A570 steel
- Product Height:
- 1.5 in
- Product Length Depth:
- 1.5 in
- Product Weight:
- .7 lb
- Product Width:
- .62 in
- Special Features:
- kit includes two (2) clamps and hardware
- Department:
- Electrical
- Product Group:
- Clamps & Supports
- Product Subgroup:
- Clamps
- Product Type:
- Runway adjustable junction splice clamp
- Product Details:
- Runway adjustable junction splice clamp
- Product Length:
- 1.5 in
B-LINE SB2103ABZ – Frequently Asked Questions
1) Can the B-Line SB2103ABZ runway splice join two cable runway stringers at an angle, or only in a straight line?
It is an adjustable junction splice clamp, so it connects runway stringers anywhere from 0 degrees to 90 degrees. That covers a straight inline splice, a 90 degree tee or corner, and any off-angle turn in between, which is why it gets used where a runway has to break around a column or change direction over a row of racks.
2) Does the SB2103ABZ runway splice come with bolts, or do I have to supply my own hardware?
The kit ships as two clamps plus the mounting hardware, so a single ordered kit makes one complete junction. No separate fastener order is needed for the splice itself.
3) Is the B-Line SB2103ABZ splice clamp UL Listed for a data center or telecom room install?
Yes, the runway splice clamp is UL Listed, which is typically what an inspector or a facility spec is looking for on cable runway support hardware in a telecom or equipment room.
4) What is the SB2103ABZ runway clamp made of, and will the finish hold up indoors?
Black zinc plated ASTM A570 structural steel. A570 is a hot rolled carbon structural sheet steel, and the black zinc plating matches the typical black finish on cable runway, so the junction does not stand out against the stringers. The plating is a standard indoor finish, not a hot dip galvanized exterior coating.
5) How many SB2103ABZ kits do I need for a runway that turns a corner?
A cable runway has two stringers, so a corner or tee where both stringers meet the adjoining run takes two kits, one per stringer side. Each kit contains two clamps and the hardware for one connection point.
6) What is the part number for the B-Line adjustable runway junction splice?
Order it as Eaton B-Line SB2103ABZ. The ABZ suffix is the black zinc finish on the ASTM A570 steel clamp.
