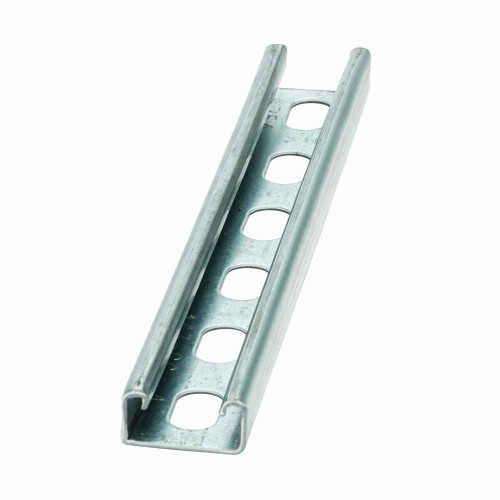

B-Line Eaton series strut chan...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$3,608.90
B-Line Eaton series strut channel, .81" channel height, 120" channel length, 1.62" channel width, Steel, 14 Gauge, SH hole pattern, B54 channel type,

B-Line Eaton series strut channel, .81" channel height, 120" channel length, 1.62" channel width, Steel, 14 Gauge, SH hole pattern, B54 channel type,

(No reviews yet) Write a Review

Model: B54SH-120YZN
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,608.90
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut channel, .81" channel height, 120" channel length, 1.62" channel width, Steel, 14 Gauge, SH hole pattern, B54 channel type, Yellow zinc chromate

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Channel Type:
B54
Hole Pattern:
SH
Material Gauge:
14 Gauge
Product Height:
.81 in
Product Length Depth:
120 in
Product Weight:
9.1 lb
Product Width:
1.62 in
Department:
Electrical
Product Finish:
Yellow zinc chromate
Product Material:
Steel

B-LINE B54SH-120YZN – Frequently Asked Questions

1) Is yellow zinc chromate strut OK for outdoor or damp areas?
Yellow zinc chromate is an indoor, dry-location finish. It handles normal interior humidity in mechanical rooms, ceilings and electrical rooms, but for exterior runs, parking structures, wash-down areas or coastal sites you want hot dip galvanized or stainless strut instead. Note the finish is on the steel channel itself, 14 gauge steel.
2) What does the SH hole pattern mean on B-Line B54 strut channel?
SH is the slotted-hole back pattern: the back of the channel is punched along its length so you can bolt the strut directly to studs, beams or concrete anchors, or run threaded rod through it, without field drilling. If you want a solid unpunched back for a cleaner run or maximum section strength, you would order the plain B54 rather than the SH version.
3) What is the exact part number to order this B-Line strut channel by?
Order it as Eaton B-Line B54SH-120YZN. That breaks down as B54 channel type, SH slotted back, 120 inch length, YZN for yellow zinc. If you need a different length or an unpunched back, the part number changes accordingly.
4) Can I cut B54 strut to length in the field?
Yes, it is 14 gauge steel and cuts with a bandsaw, chop saw with a metal blade, or portaband. Once you cut it, the exposed edge loses the yellow zinc chromate coating, so touch it up with cold galvanizing or zinc paint if the run is anywhere with moisture. File the burr off the lips or channel nuts will bind at the cut end.
