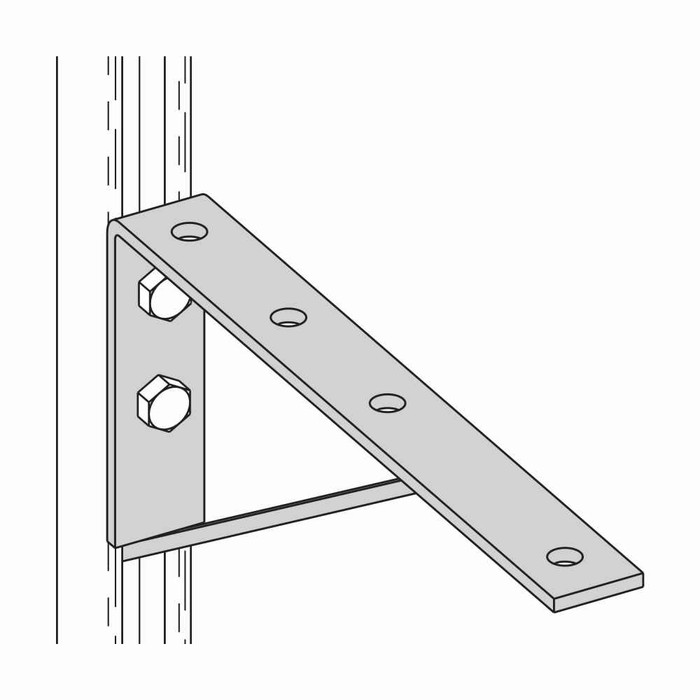

Eaton B-Line series strut fittings and accessories, 6" Height, 14.5" Length, 1.62" Width, 2.95lbs, Steel, Bracket, Uniform load capacity 900 lbs, Electro-plated
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Product Height:
- 6 in
- Product Length Depth:
- 14.5 in
- Product Weight:
- 2.95 lb
- Product Width:
- 1.62 in
- Special Features:
- 4 holes 9/16 in diameter,(2) 9/16 In diameter
- Department:
- Electrical
- Product Group:
- Mounting Hardware
- Product Subgroup:
- Brackets
- Product Type:
- Bracket
- Product Finish:
- Electro-plated
- Product Details:
- Bracket
- Product Material:
- Steel
B-LINE B289-14ZN – Frequently Asked Questions
1) What size bolts do the holes in the B-Line B289-14ZN strut bracket take?
The bracket is drilled with 9/16 inch diameter holes, four in one pattern plus a set of two more, all 9/16 inch. That size takes standard 1/2 inch strut hardware (a 1/2 inch bolt through a 9/16 inch hole), so you can bolt it up with the same channel nuts and hex head bolts you are already using on the run.
2) How much weight can the B-Line B289 bracket hold?
900 pounds uniform load. That is the rating Eaton publishes for the B289-14ZN, and it is a uniform load figure, not a point load at the end of the arm, so spread the weight across the bracket rather than hanging it all off the tip.
3) Is the B-Line B289 bracket okay for a damp or outdoor location?
Keep it indoors and dry. The B289-14ZN is steel with an electro-plated (zinc) finish, which is a light coating meant for dry interior use. For exterior, damp, or corrosive areas, step up to a hot dip galvanized or stainless strut fitting instead.
4) What part number do I order for the 14.5 inch B-Line strut bracket?
B289-14ZN is the number, Eaton B-Line series. The ZN suffix is the electro-plated zinc finish. One configuration, so there is no length or finish option to specify on the order.
5) How heavy is the B-Line B289-14ZN bracket to handle overhead?
2.95 lbs each. Light enough for one person to hold in position on a ladder while starting the channel nuts, which matters when you are setting a row of them along an overhead run.
