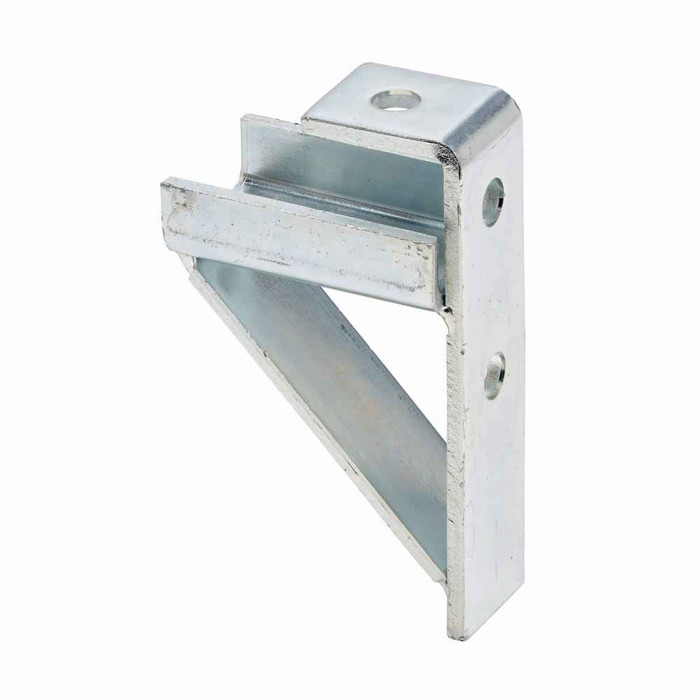

Eaton B-Line series strut fittings and accessories, 6.37" Height, 3.75" Length, 1.62" Width, 2.10lbs, Steel, Bracket, Uniform load capacity 900 Lbs, Fits channel type B22 and B24, DURA GREEN
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- For Channel Type:
- Fits channel type B22 & B24
- Product Height:
- 6.37 in
- Product Length Depth:
- 3.75 in
- Product Weight:
- 2.1 lb
- Product Width:
- 1.62 in
- Special Features:
- 3 holes,(2) 9/16 in diameter (vertical)
- Department:
- Electrical
- Product Group:
- Mounting Hardware
- Product Subgroup:
- Brackets
- Product Type:
- Bracket
- Product Finish:
- DURA GREEN
- Product Details:
- Bracket
- Product Material:
- Steel
B-LINE B194GRN – Frequently Asked Questions
1) What are the dimensions and weight of the B-Line B194GRN bracket?
6.37 inches height, 3.75 inches length/depth, 1.62 inches width, and 2.1 lb. The 1.62 inch width is the figure to check first, since it has to sit inside or against the strut face without fouling adjacent hangers on a tight rack.
2) Is the DURA GREEN finish on this B-Line bracket suitable for damp or corrosive areas?
The B194GRN is steel with a DURA GREEN finish, Eaton B-Line's coated corrosion-resistant option rather than plain zinc plate. For a mechanical room, parking structure, or wash-down adjacent area, that coating is the reason to pick this version over a plain plated fitting. Match the fitting finish to the channel finish so you are not mixing coatings on the same run.
3) Do channel nuts and bolts come with the B-Line B194GRN bracket?
No. The B194GRN is the bracket only. Order 1/2 inch strut channel nuts with springs and matching hex bolts separately, and order them in the same corrosion-resistant finish family as the bracket if the location calls for it.
4) Can I use this B-Line strut bracket to hang conduit or pipe supports off a wall?
That is what it is for. The B194GRN is a steel angle-type strut fitting that ties a length of B22 or B24 channel to a structure or to another piece of channel, so you build the trapeze or wall support and then hang conduit clamps, pipe straps, or equipment from the channel itself. The bracket does not clamp the conduit directly.
