B-Line B194SS6 Eaton series st...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,222.90

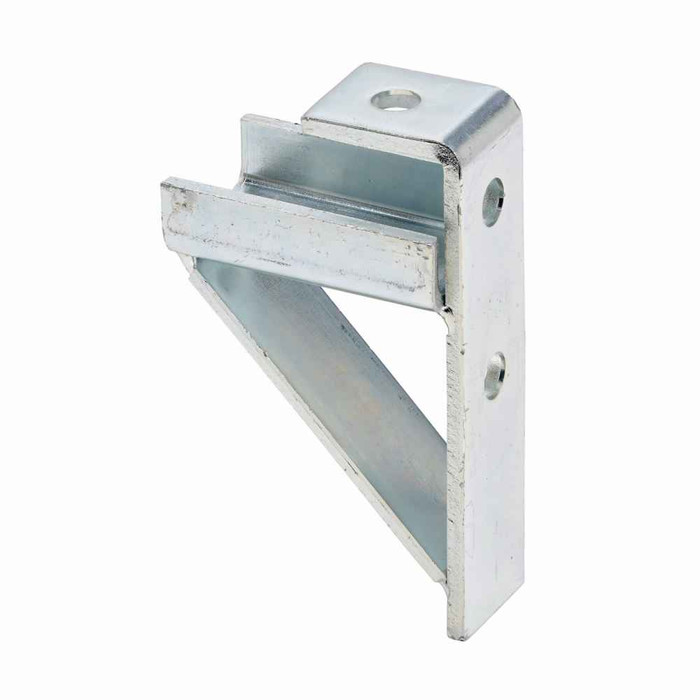

B-Line B194SS6 Eaton series strut fittings and accessories, 6.37" Height, 3.75" Length, 1.62" Width, 2.10lbs, Steel, Bracket, Load rating 6300 in-lbs, Fits channel type B22 and B24, Stainless steel type 316

B-Line B194SS6 Eaton series strut fittings and accessories, 6.37" Height, 3.75" Length, 1.62" Width, 2.10lbs, Steel, Bracket, Load rating 6300 in-lbs, Fits channel type B22 and B24, Stainless steel type 316

(No reviews yet) Write a Review

Model: B194SS6
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,222.90
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut fittings and accessories, 6.37" Height, 3.75" Length, 1.62" Width, 2.10lbs, Steel, Bracket, Load rating 6300 in-lbs, Fits channel type B22 and B24, Stainless steel type 316

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
For Channel Type:
Fits channel type B22 & B24
Product Height:
6.37 in
Product Length Depth:
3.75 in
Product Weight:
2.1 lb
Product Width:
1.62 in
Special Features:
3 holes,(2) 9/16 in diameter (vertical)
Department:
Electrical
Product Group:
Mounting Hardware
Product Subgroup:
Brackets
Product Type:
Bracket
Product Finish:
Stainless steel type 316
Product Details:
Bracket
Product Material:
Steel
Product Length:
3.75 in

B-LINE B194SS6 – Frequently Asked Questions

1) Will the B-Line B194SS6 bracket fit 1-5/8 inch strut channel?
The B194SS6 is built for Eaton B-Line channel types B22 and B24, so it mounts to those profiles. If your run is a different B-Line channel series, check the channel stamp before ordering, because the fitting is dimensioned for the B22/B24 face.
2) Is the B194SS6 strut bracket suitable for outdoor or washdown use?
It is finished in stainless steel type 316, which is the grade specified for coastal, chemical, and washdown environments where standard plated steel corrodes. That makes it usable outdoors, in wastewater plants, and in food processing areas without added coating.
3) What load can the B194SS6 bracket take?
The bracket carries a 6300 in-lbs load rating. That is a moment rating, so the safe hanging weight drops as the load moves further out from the channel face. Divide 6300 by the arm length in inches to get the allowable load at that distance.
4) How many bolt holes does the B194SS6 bracket have and what size?
Three holes total, two of them 9/16 inch diameter on the vertical leg. The 9/16 inch openings take 1/2 inch strut hardware, so pair it with 1/2 inch channel nuts and bolts.
5) What are the dimensions and weight of the B194SS6 bracket?
It measures 6.37 inches height, 3.75 inches length/depth, and 1.62 inches width, and weighs 2.1 lb. The 1.62 inch width is what lets it sit flat on standard 1-5/8 inch strut face without overhang.
6) Do I need to order channel nuts separately for the B194SS6?
Yes. The B194SS6 ships as the bracket alone, so the channel nuts, bolts, and washers for the two 9/16 inch vertical holes are a separate line. In a 316 stainless installation, match the hardware to 316 as well, or galvanic mismatch will undo the corrosion resistance you paid for.
7) What is the correct part number to order this Eaton B-Line stainless bracket?
Order it as B194SS6 from Eaton B-Line. The SS6 suffix is the type 316 stainless version; a plain B194 is the standard carbon steel fitting and is not the same part for corrosive locations.
