B-Line B195ZN Eaton series str...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$298.54
Image coming soon

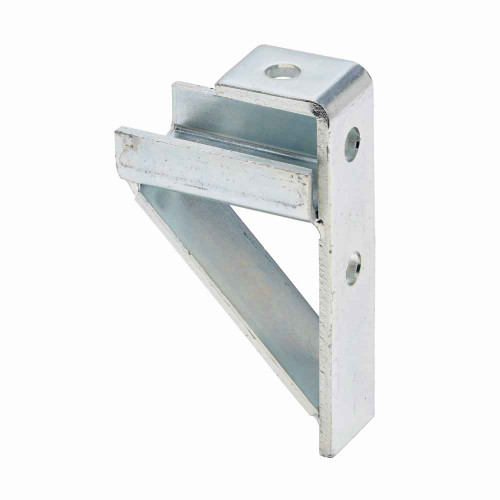

B-Line B195ZN Eaton series strut fittings and accessories, 3.87" Height, 3.75" Length, 1.62" Width, 1.74lbs, Steel, Bracket, Load rating 2500 in-lbs, Fits channel type B42, Electro-plated

(No reviews yet) Write a Review

Model: B195ZN

In Stock (leaves warehouse same day if ordered before 3pm ET)

$298.54
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut fittings and accessories, 3.87" Height, 3.75" Length, 1.62" Width, 1.74lbs, Steel, Bracket, Load rating 2500 in-lbs, Fits channel type B42, Electro-plated

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
For Channel Type:
Fits channel type B42
Product Height:
3.87 in
Product Length Depth:
3.75 in
Product Weight:
1.74 lb
Product Width:
1.62 in
Special Features:
3 holes,(2) 9/16 in diameter (vertical)
Department:
Electrical
Product Group:
Mounting Hardware
Product Subgroup:
Brackets
Product Type:
Bracket
Product Finish:
Electro-plated
Product Details:
Bracket
Product Material:
Steel

B-LINE B195ZN – Frequently Asked Questions

1) Will the B-Line B195ZN bracket fit B42 strut channel?
Yes. The B195ZN is built for channel type B42, so it lands on that profile without shimming or drilling. If your run is a different Eaton B-Line channel section, check the fitting called out for that section instead, because strut fittings are matched to the channel series they bolt to.
2) How many bolt holes does the B195ZN bracket have, and what size?
Three holes, two of them 9/16 inch diameter on the vertical leg. The 9/16 inch holes take 1/2 inch strut bolts or threaded rod hardware, which is the standard fastener size for that hole pattern.
3) What are the dimensions and weight of the B195ZN bracket?
It measures 3.87 inches high, 3.75 inches long/deep, and 1.62 inches wide, and weighs 1.74 lb. The 1.62 inch width means it sits inside the flange width of standard 1-5/8 inch strut, so it will not overhang the channel.
4) Is the electro-plated finish on the B195ZN okay for outdoor or wet locations?
The B195ZN is steel with an electro-plated finish, which is a zinc plating meant for dry indoor service. For exterior, damp, or corrosive areas, specify a hot-dip galvanized or stainless fitting rather than plated steel.
5) Do I get the bolts and channel nuts with the B195ZN bracket?
The B195ZN ships as the bracket alone. Strut nuts, bolts, and washers are ordered separately, and the vertical holes are 9/16 inch, so size that hardware at 1/2 inch.
6) What is the Eaton part number for this B-Line strut bracket?
Order it as B195ZN. That is the Eaton B-Line catalog number and the manufacturer part number, the ZN suffix denoting the electro-plated zinc finish.
