B-Line Eaton series strut fitt...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$26,384.90

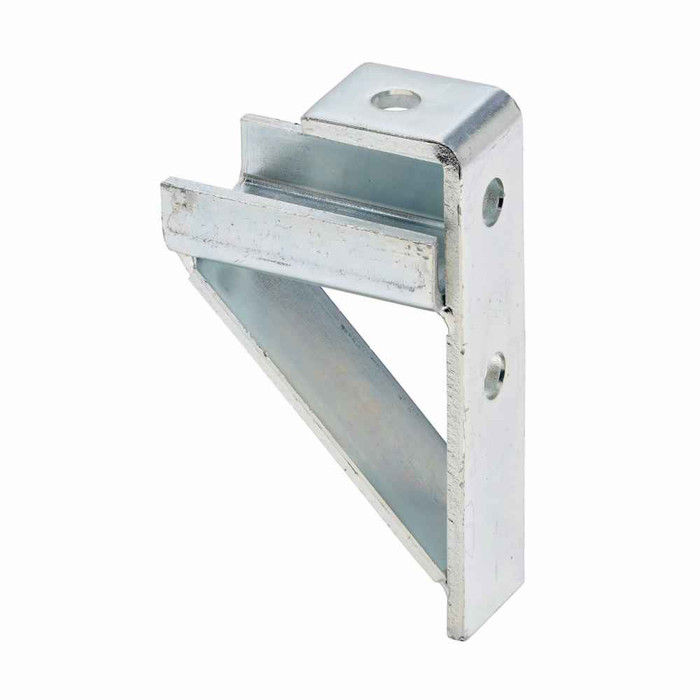

B-Line Eaton series strut fittings and accessories, 6.37" Height, 3.75" Length, 1.62" Width, 2.10lbs, Steel, Bracket, Load rating 6300 in-lbs, Fits ch

B-Line Eaton series strut fittings and accessories, 6.37" Height, 3.75" Length, 1.62" Width, 2.10lbs, Steel, Bracket, Load rating 6300 in-lbs, Fits ch

(No reviews yet) Write a Review

Model: B194ZN
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$26,384.90
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut fittings and accessories, 6.37" Height, 3.75" Length, 1.62" Width, 2.10lbs, Steel, Bracket, Load rating 6300 in-lbs, Fits channel type B22 and B24, Electro-plated

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
For Channel Type:
Fits channel type B22 & B24
Product Height:
6.37 in
Product Length Depth:
3.75 in
Product Weight:
2.1 lb
Product Width:
1.62 in
Special Features:
3 holes,(2) 9/16 in diameter (vertical)
Department:
Electrical
Product Group:
Mounting Hardware
Product Subgroup:
Brackets
Product Type:
Bracket
Product Finish:
Electro-plated
Product Details:
Bracket
Product Material:
Steel

B-LINE B194ZN – Frequently Asked Questions

1) Will the B-Line B194ZN bracket fit 1-5/8 inch strut channel?
The B194ZN is built for Eaton B-Line channel types B22 and B24. Those are the channel profiles it is dimensioned to, so if your run is B22 or B24 strut it bolts up as intended. On other channel series you would need to verify the profile matches before committing.
2) How many mounting holes does the B194ZN bracket have and what size are they?
Three holes total, two of them 9/16 inch diameter on the vertical leg. That 9/16 inch hole takes standard 1/2 inch strut hardware, so you can use 1/2 inch channel nuts and bolts through the vertical face.
3) What are the dimensions and weight of the B-Line B194ZN bracket?
It measures 6.37 inches in height, 3.75 inches in length/depth, and 1.62 inches in width, and weighs 2.1 lb. The 1.62 inch width is the figure to check first, since it has to sit inside or against the channel face without fouling adjacent fittings.
4) Is the electro-plated finish on the B194ZN bracket suitable for outdoor or wet locations?
The B194ZN is steel with an electro-plated (zinc) finish. That is an indoor, dry-location finish. For exterior runs, wash-down areas, or corrosive environments, specify a hot-dip galvanized or stainless fitting instead.
5) What part number do I quote for this B-Line strut bracket?
Order it as Eaton B-Line B194ZN. The ZN suffix is the electro-plated zinc version, which is the finish this part carries.
