B-Line Eaton series strut fitt...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$54,337.30
$54,287.30

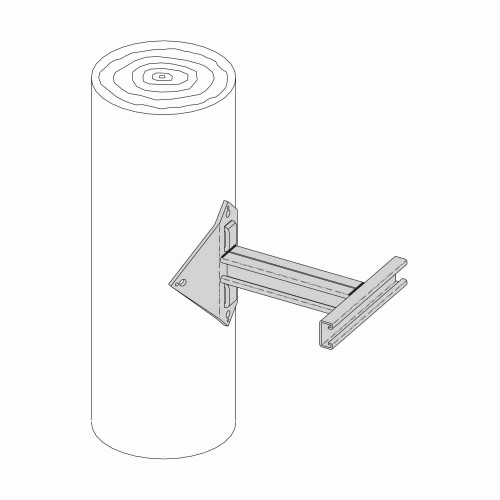

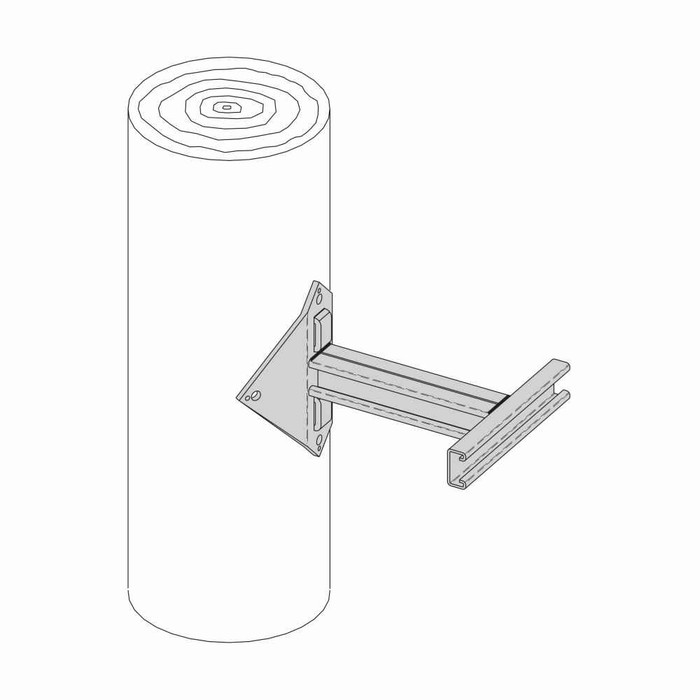

B-Line Eaton series strut fittings and accessories, 7.78" Height, 10" Length, 12" Width, 3.56lbs, Steel, Bracket, Electro-plated zinc

B-Line Eaton series strut fittings and accessories, 7.78" Height, 10" Length, 12" Width, 3.56lbs, Steel, Bracket, Electro-plated zinc

(No reviews yet) Write a Review

Model: B852S-12-10ZN
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$54,337.30
$54,287.30
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut fittings and accessories, 7.78" Height, 10" Length, 12" Width, 3.56lbs, Steel, Bracket, Electro-plated zinc

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Product Height:
7.78 in
Product Length Depth:
10 in
Product Weight:
3.56 lb
Product Width:
12 in
Department:
Electrical
Product Group:
Mounting Hardware
Product Subgroup:
Brackets
Product Type:
Bracket
Product Finish:
Electro-plated
Product Details:
Bracket
Product Material:
Steel

B-LINE B852S-12-10ZN – Frequently Asked Questions

1) What are the dimensions of the Eaton B-Line B852S-12-10ZN strut bracket?
The B852S-12-10ZN bracket measures 7.78 inches in height, 10 inches in length/depth, and 12 inches in width, and it weighs 3.56 lb. Those three figures are what you need to check clearance before you commit the bracket to a wall or overhead run, since a 12 inch width plus a 10 inch projection takes up real space in a ceiling cavity.
2) Is the B-Line B852S-12-10ZN bracket suitable for damp or outdoor use?
It is steel with an electro-plated zinc finish. Electro-plated zinc is a thin sacrificial coating intended for dry indoor service; for exterior, wash-down, or corrosive environments you want a hot-dip galvanized or stainless strut fitting instead. Drilling or cutting the part also breaks the plating, so touch up any exposed steel.
3) What is the exact part number to order for this B-Line strut bracket?
Order it as Eaton B-Line B852S-12-10ZN. That single model covers the steel, electro-plated zinc version at 12 inch width by 10 inch length; there are no finish or size options to pick on top of it, so the part number is the whole spec.
4) Does the B852S-12-10ZN come with mounting bolts, nuts, or strut channel?
No. It is the bracket only. Channel nuts, bolts, washers, and the strut channel itself are separate items, so add the channel hardware for each connection point when you build out the order.
5) Does the B-Line B852S-12-10ZN bracket carry a UL listing or other certification?
No certification is claimed for this bracket; the record shows certifications as not applicable. Treat it as a mechanical support fitting rather than a listed electrical component, and where a job spec calls for a listed support assembly, size and document the support from the channel system's own listing.
