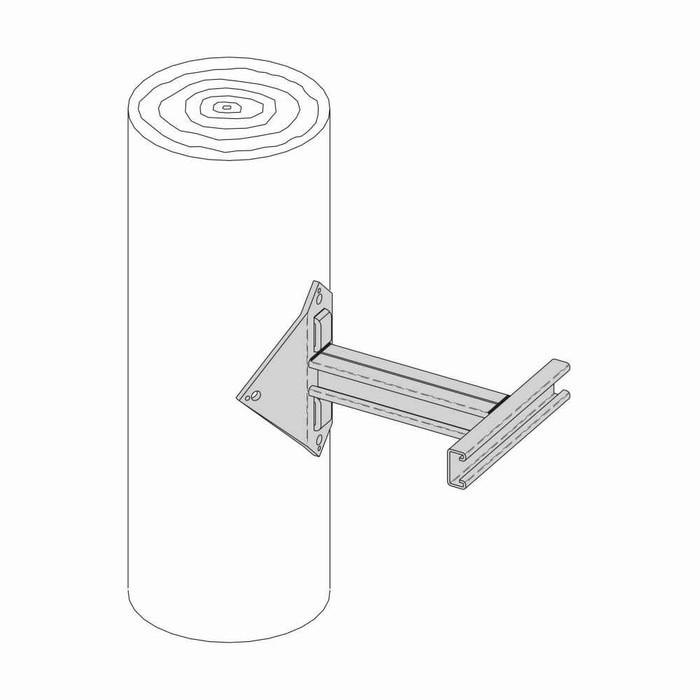

Eaton B-Line series strut fittings and accessories, 7.78" Height, 24" Length, 12" Width, 7.775lbs, Steel, Bracket, Electro-plated zinc
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Product Height:
- 7.78 in
- Product Length Depth:
- 24 in
- Product Weight:
- 7.775 lb
- Product Width:
- 12 in
- Department:
- Electrical
- Product Group:
- Mounting Hardware
- Product Subgroup:
- Brackets
- Product Type:
- Bracket
- Product Finish:
- Electro-plated
- Product Details:
- Bracket
- Product Material:
- Steel
B-LINE B852S-12-24ZN – Frequently Asked Questions
1) What are the dimensions of the B-Line B852S-12-24ZN strut bracket?
The B852S-12-24ZN bracket measures 7.78 in height, 24 in length/depth, and 12 in width. Those three figures are what you need to check against your strut run and the clearance behind the mounting surface before you commit, since a 24 in leg needs real room to swing into place.
2) Is the B-Line B852S-12-24ZN bracket suitable for outdoor or wet locations?
Electro-plated zinc over steel is a dry indoor finish. It handles normal interior mechanical rooms, ceilings and equipment platforms, but for exterior, rooftop, parking structure or washdown work you want hot dip galvanized or stainless strut hardware instead. Ordering the zinc plated version for an outdoor run is the usual mistake on this part.
3) How much does the B852S-12-24ZN weigh, and does that matter for my hanger calculation?
It weighs 7.775 lb. That is dead load you add to whatever the bracket is carrying when you size the anchors and the supporting structure, and it is enough that a long run of these adds up. For overhead work it is also a two-hand lift per piece at that weight combined with the 24 in reach.
4) Does the B-Line B852S strut bracket come with the bolts and channel nuts to mount it?
No. It is supplied as the bracket alone, so you order your strut nuts, bolts and washers separately, plus the anchors for the building side. Match the channel nut to the strut profile you are attaching to, and match the fastener plating to the bracket's zinc finish so you are not mixing dissimilar coatings in the same joint.
5) What is the exact part number to order this B-Line bracket by?
Order it as Eaton B-Line part number B852S-12-24ZN. The ZN suffix is the electro-plated zinc finish; if a submittal calls for a different finish on the same bracket, the suffix is what changes, not the base number.
6) Does the B852S-12-24ZN bracket carry a UL listing or seismic certification?
No certification is carried on this bracket as supplied. It is a plain electro-plated steel strut bracket, so on a project where the submittal requires listed or seismically qualified supports, verify with the engineer of record which support components have to be certified before you spec it into the assembly.
7) Is this B-Line bracket steel or aluminum?
Steel, with an electro-plated zinc coating. If your spec calls for aluminum strut hardware (for weight, or to avoid mixing metals in an aluminum channel system), this is not the part for that job.
