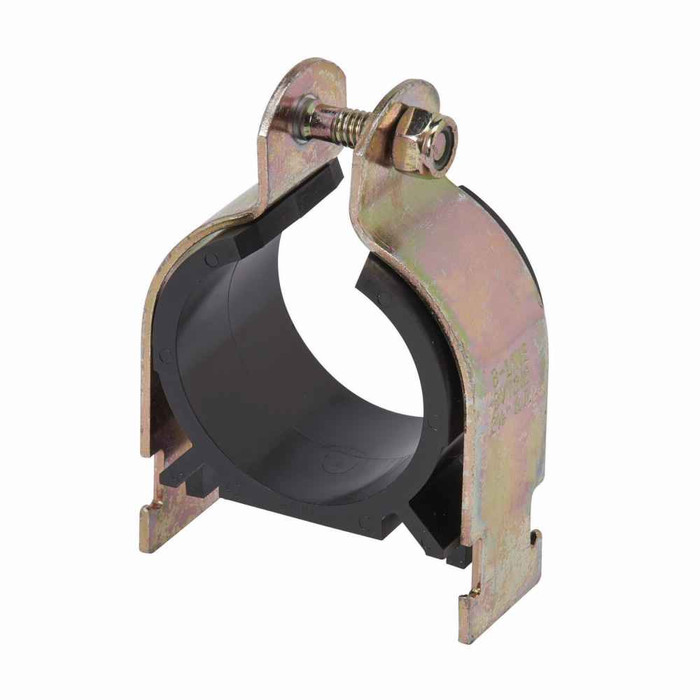

B-Line Eaton series strut pipe clamps and accessories, 2.25" height, 1.52" length, 600 lbs, Steel, Dampens vibration and noise, Vibra-clamp, Yellow zi

A standard strut clamp grips metal to metal, so pump and compressor vibration transmits straight into the strut and telegraphs through the building as noise. The Vibra-clamp is built to dampen vibration and noise at the pipe, which is why it gets specified on mechanical room piping, chilled water lines and equipment drops. For a static conduit run with no vibrating source, an ordinary strut clamp does the same holding job.

Yes. It is a strut pipe clamp from the Eaton B-Line series, so it seats into the channel and is secured with strut nut and hardware in the usual way. Overall height of the clamp is 2.25 inches, which is the clearance you need to allow above the channel face when you are stacking runs or working tight to a deck.

Yellow zinc chromate over steel is a mild corrosion coating meant for dry indoor service, mechanical rooms and covered areas. For rooftops, exterior runs, wash-down areas or coastal exposure, go to a hot dip galvanized or stainless clamp instead, since the chromate plating on this one will not hold up long term in constant wet.

Certifications are marked Not Applicable for the BVP075YZN, so treat it as a standard commercial support component. If your drawing calls out a listed seismic or specific-standard support assembly, specify a clamp that carries that listing rather than substituting this one.
