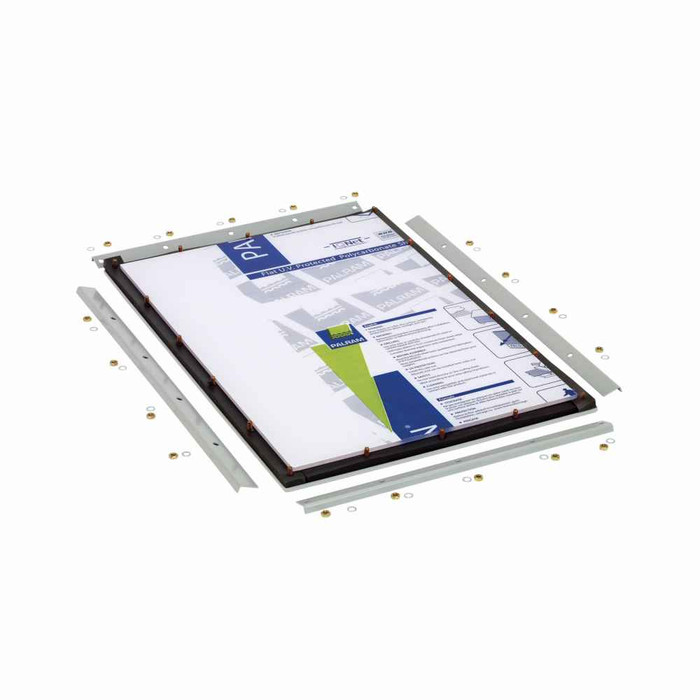

B-Line Eaton series window and door kit, ANSI 61 gray polyester powder coated, Stainless steel, Fixed window, Plexiglas window kit, Enclosure cut-out

The PWK133SS Plexiglas window kit mounts into a 14.62 x 4.62 inch enclosure cut-out. That is the opening you cut or order pre-cut in the door; cut it undersized and the kit won't seat, cut it oversized and the frame won't cover the edge. Overall kit depth/length is listed at 5.53 inches.

Fixed. The PWK133SS is a non-opening Plexiglas viewing window, so it's for reading meters, indicator lights, or HMI displays through a closed enclosure door. If you need to reach the equipment behind the glazing, you want a hinged window door kit instead, not this one.

The frame is finished in ANSI 61 gray polyester powder coat, which is the standard gray used on most industrial control enclosures, so it blends with a typical ANSI 61 panel lineup. Check that your existing cabinets are ANSI 61 and not a house-specific gray before you standardize on it across a plant.

The kit body is stainless steel with an ANSI 61 gray polyester powder coat over it. That combination is what you want where a painted carbon steel frame would rust out at the cut edge, such as food plants, wastewater, or coastal outdoor gear. Note the glazing itself is Plexiglas, so chemical exposure should be checked against acrylic, not against the metal.

Order Eaton B-Line model PWK133SS. It is a single-model kit, no finish or size options to specify, so the part number alone defines the 14.62 x 4.62 inch cut-out, the stainless frame, and the ANSI 61 gray finish.

The kit is listed at 14.62 inches height and 4.62 inches width, so it is a tall, narrow viewing slot rather than a square window. That shape suits a vertical run of pilot lights, breaker handles, or a stacked meter column. If you need to see a wide horizontal HMI face, a different aspect kit is the better fit.
