Spec Sheet
Product Specs
- Environmental Rating:
- IP66, IP67
- Operating Temperature:
- -13° to 158°F (-25° to 70°C)
- Department:
- Electrical
- Product Length:
- .94 IN
- Switch Classification:
- Adj. Side Rotary, Operator Only
- Product Height:
- 4.21 IN
- Product Weight:
- .0687 LB
- Product Width:
- .98 IN
B-LINE LS-XRLA30 – Frequently Asked Questions
1) Does the B-Line LS-XRLA30 come with a switch body, or is it just the operator head?
Operator head only. The LS-XRLA30 is classified as "Adj. Side Rotary, Operator Only," so it is the actuating head that mounts onto an LS-Titan miniature DIN limit switch body. You order the switch body and contact block separately. If you are replacing a damaged actuator on an existing LS-Titan unit, this is the right part; if you are building a switch from nothing, the head alone will not do the job.
2) Can the LS-Titan LS-XRLA30 limit switch head be used in a washdown or outdoor location?
It carries IP66 and IP67 environmental ratings, so it is sealed against powerful water jets and against temporary immersion. That covers food and beverage washdown areas, exterior conveyor work, and dusty plant environments. It is not rated for continuous submersion.
3) What temperature range can this B-Line limit switch operator head handle?
Rated from -13 to 158 degrees F (-25 to 70 degrees C). That puts unheated warehouses, cold-storage docks, and hot process areas inside the range, but a walk-in freezer running below -13 F or a furnace-adjacent mounting point is outside it.

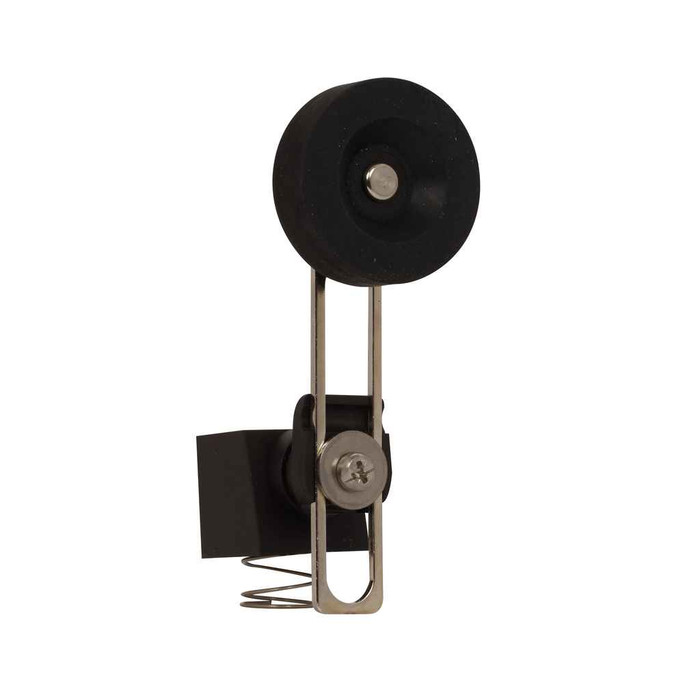

4) What does "adjustable side rotary" mean on the LS-XRLA30, and when would I use it instead of a plunger head?
Side rotary means the actuator shaft comes out the side of the head and rotates when the machine part strikes the lever, rather than being pushed straight in like a plunger. Adjustable means the lever arm position can be set to suit the approach angle of whatever is tripping it. Use a rotary head where a cam, gate, or conveyor flight sweeps past the switch from the side; use a plunger head where the moving part comes straight at the switch face.
5) Will this operator head fit a standard DIN limit switch body from another series?
The LS-XRLA30 is built to the LS-Titan miniature DIN format and mates with LS-Titan miniature bodies. Heads and bodies in that line are designed to interchange within the series. For a body from a different manufacturer's line, match the spec sheet mounting pattern before committing, since heads are not universally cross-brand.
6) What part number do I give my distributor for this B-Line limit switch head?
Order it as LS-XRLA30, the B-Line LS-Titan miniature DIN limit switch operator head. There is one configuration, so there are no finish, lever, or voltage options to specify on the order.
