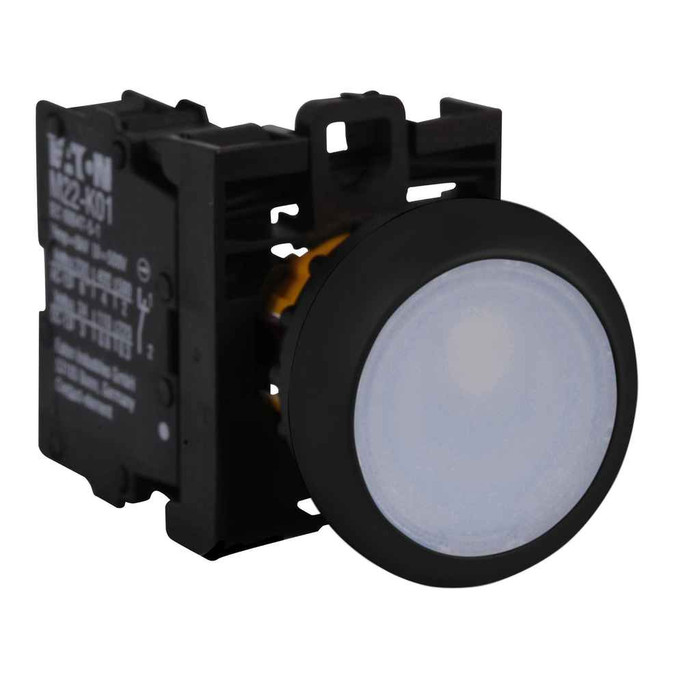

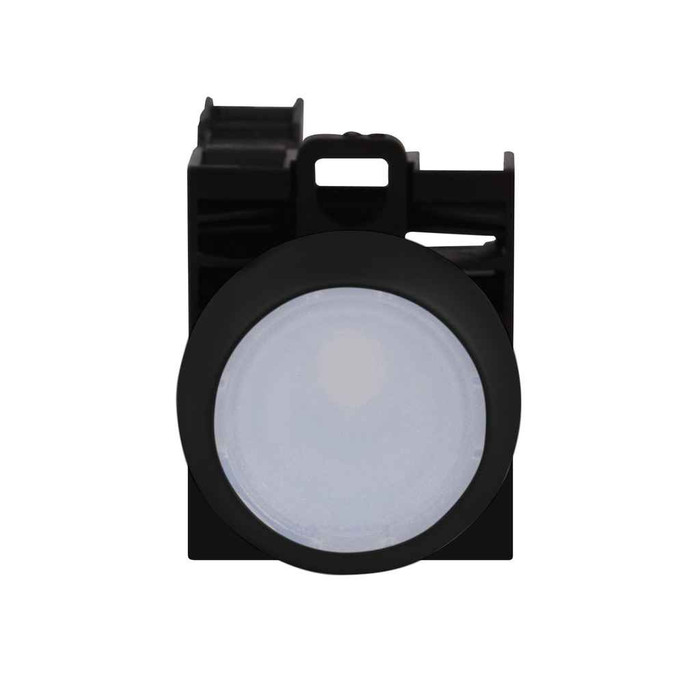

Spec Sheet
Product Specs
- Action:
- Maintained
- Actuator:
- Button, Flush
- Bezel:
- Black
- Button Color:
- White
- Contact Configuration:
- 1NO-1NC
- Environmental Rating:
- IP66, NEMA 4X, 13
- Illumination:
- Illuminated
- Notes:
- Positively driven contact blocks.
- Series:
- M22
- Voltage Rating:
- 12-30 Vac/dc
- Department:
- Electrical
- Product Type:
- Pushbutton
- Product Size:
- 22.5 mm
- Product Length:
- 1.46 IN
- Product Details:
- Pushbutton
- Product Height:
- 3.19 IN
- Product Weight:
- .094 LB
- Product Width:
- 1.18 IN
B-LINE M22S-DRL-W-K11-W – Frequently Asked Questions
1) What panel hole size does the B-Line M22S-DRL-W-K11-W pushbutton need?
It mounts in a standard 22.5 mm panel cutout, which is the M22 series mounting size. If your enclosure is already drilled for 22.5 mm operators, this drops straight in.
2) Is the M22 white illuminated pushbutton maintained or momentary?
Maintained. Press it and it stays in until pressed again, so it holds a circuit state without a latching relay. If you need spring return for jog or reset duty, this is the wrong actuator.
3) What voltage does the illuminated M22S-DRL-W-K11-W run on?
The lamp is rated 12-30 Vac/dc, so it suits 24V control circuits. It is not a 120V pilot device, and wiring the LED to line voltage will destroy it.
4) Can this M22 pushbutton switch both a start and a stop circuit at once?
It ships with a 1NO-1NC contact arrangement, so one press makes one circuit and breaks another at the same time. The contact blocks are positively driven, which means the NC contact is forced open mechanically rather than relying on spring action, the arrangement safety circuits are typically built around.
5) Should I pick a flush button or an extended/mushroom head for an operator station?
The flush white button on the M22S-DRL-W-K11-W sits within the bezel, which makes accidental actuation by a sleeve or elbow much less likely, the right choice for a maintained function you do not want bumped. Extended and mushroom heads are for functions you need to hit fast without looking, such as e-stop or emergency shutdown.
6) What does the white button and black bezel signify on a control panel?
White is the neutral color used for functions with no specific assigned meaning, typically auxiliary or general-purpose commands rather than start (green) or stop (red). The black bezel is the standard M22 trim, so it matches other operators in the same series on a shared station.
