Spec Sheet
Product Specs
- Amperage Rating:
- 15A
- Interrupt Rating:
- 22 kAIC
- Main Circuit Breaker:
- BRH
- Notes:
- 10-150A. single-, two- and three-pole, selected amperageavailable in switching duty, HACR, shunt trip and High-Magnetic setting
- Number Of Poles:
- Two-pole
- Special Features:
- High-Magnetic
- Trip Type:
- Common
- Used With:
- Type BR Loadcenters
- Voltage Rating:
- 120/240V
- Wire Size:
- #14-4 AWG Cu/Al
- Department:
- Electrical
- Product Group:
- Electrical Components
- Product Subgroup:
- Circuit Breakers
- Product Type:

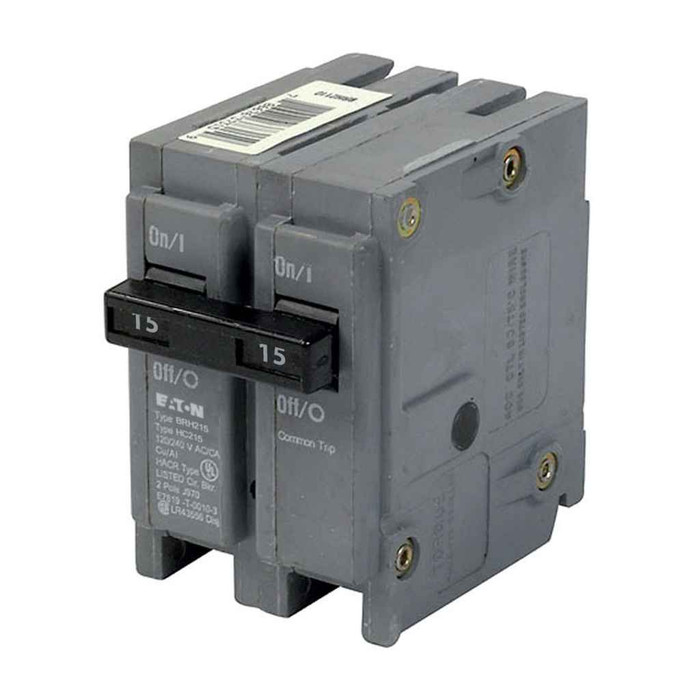

- Type BR 1-inch Plug-On High-Magnetic Circuit Breaker
- Product Length:
- 3 IN
- Product Details:
- Type BR 1-inch Plug-On High-Magnetic Circuit Breaker
- Mounting Method:
- Plug-on
- Item Quantity:
- Q28
- Product Height:
- 3 IN
- Product Weight:
- .6 LB
- Product Width:
- 2 IN
B-LINE BRH215 – Frequently Asked Questions
1) Will the B-Line BRH215 breaker fit a Type BR loadcenter panel?
Yes. The BRH215 is a plug-on Type BR breaker made for Type BR loadcenters. It is a two-pole device in a 1-inch-per-pole frame, so it takes two adjacent 1-inch spaces on the bus. If your panel is Type CH or another manufacturer's bus, this is the wrong breaker.
2) Does the BRH215 trip both poles together?
Yes, it's a common trip two-pole breaker, so a fault or overload on either leg opens both poles at once. That's what a 240V load needs, and it's required for multiwire branch circuits sharing a neutral. It is not two independent single-pole breakers on one handle.
3) What wire size can I land under the BRH215 lugs?
The terminals accept #14 through #4 AWG, copper or aluminum. At a 15A rating you'll typically be landing #14 or #12 copper, but the lug range gives you room if the run is long and the conductor was upsized for voltage drop.
4) Can I use the BRH215 on a 120V circuit only?
It's rated 120/240V, so the breaker itself is fine at either voltage, but a two-pole 15A device is intended for a 240V or 120/240V load across both legs. For a straight 120V branch circuit you want a single-pole 15A BR breaker instead, which occupies one 1-inch space rather than two.
5) What other amperages and pole counts come in this BRH breaker family?
The BRH line runs 10A to 150A in single-, two- and three-pole configurations, with selected amperages offered in switching duty, HACR, shunt trip and High-Magnetic versions. The BRH215 is the two-pole, 15A, High-Magnetic build. If you need a different trip rating on the same Type BR bus, stay in the same family and change the amperage in the catalog number.
