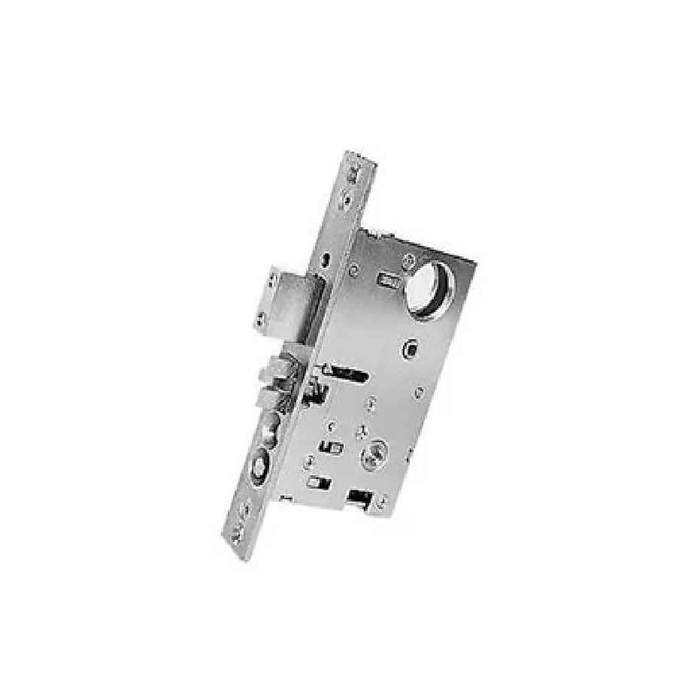

No. The Estate 6320 lock body is built to a 2-1/2 inch backset, which is Baldwin's residential mortise standard and is not interchangeable with the 2-3/4 inch backset used on most commercial mortise locks. If the existing pocket was cut for 2-3/4 inches, the spindle and cylinder holes through the door face will not line up. For a 2-3/4 inch backset replacement, look at something like the Hager 3850E or the Sargent 4874 mortise deadbolt instead.

Handing matters here. This 6320 lock body is left hand only. Stand outside the door: if the hinges are on your left and the door swings away from you, that's left hand. A right hand opening needs the right hand body, not this one. Some commercial mortise bodies, like the BEST 45H, are field reversible; this Baldwin residential body is not ordered that way.

It takes an ASA strike, the standard bent-lip mortise strike prep found in most commercial and prepped residential frames. The latch faceplate is 1-1/4 by 8 inches, so the door edge mortise has to accept that face. If your frame is already cut for an ASA strike and the door edge takes an 8 inch face, the prep matches.

The Baldwin Estate 6320 mortise lock body is a residential entry lock with a 2-1/2 inch backset. For a commercial opening, the Cal-Royal NM8050 is a heavy duty Grade 1 mortise lockset with an Entrance/Office function and an auxiliary deadlatch, listed for 1-3/4 inch doors. The Corbin Russwin ML2003 of the ML2000 Series is another Grade 1 mortise lockset, with a classroom function, also for 1-3/4 inch doors. Those carry ANSI/BHMA Grade 1 where the 6320 is built for residential entry duty.

They are not interchangeable. The Baldwin Estate 6320 is a working entry mortise lock body with a 1 inch throw deadbolt and an ASA strike. The Emtek 3104 Hamilton mortise entrance lockset is a dummy function, as are the Emtek 3102 Memphis, 3106 Manhattan, and 3019 Brisbane. A dummy set is surface-applied trim with no latch or bolt, so it suits an inactive leaf rather than a locking entry door.

The Baldwin Estate 6320 is a residential entry mortise lock body. Where the opening carries a fire label, the Falcon MA101 Grade 1 heavy duty mortise passage lock is fire rated, and the Schlage Electronics LEMD-GRW ENGAGE Series wireless mortise lock carries a 3 hour fire rating at Grade 1, as does the Schlage LEBMB-ADD mobile-enabled mortise lock at Grade 2.

It is a keyed residential entry function: latch retracted by the lever or handleset from either side when unlocked, with a separate deadbolt for security. The deadbolt throws 1 inch and carries saw-proof inserts, so a hacksaw attack on the bolt through the gap is defeated.

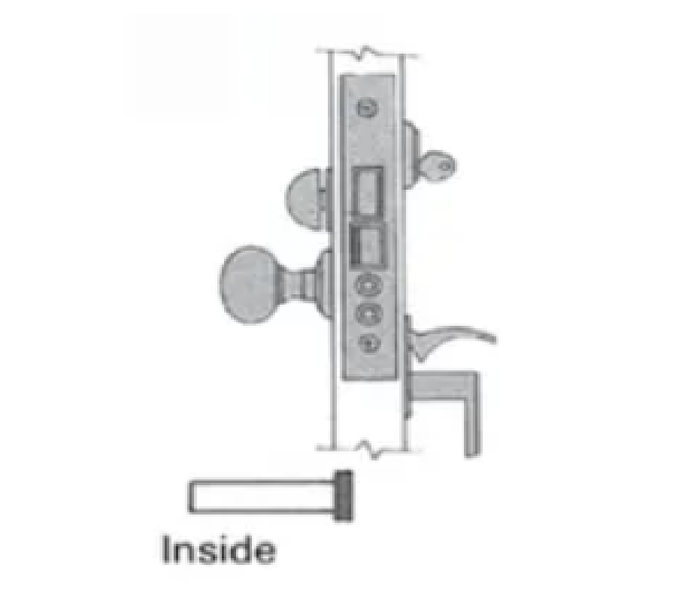

This is the mortise lock body only, the 6320 configured for handleset outside by lever inside. The exterior handleset, the interior lever trim, and the cylinder are separate items you order to match your Estate trim style and finish.

Not likely. The 6320 is sized for doors 1-3/8 inches and over, typical of wood residential entries. Narrow ornamental iron stiles run much thinner. Marks USA 21AC and 22AC are ornamental iron mortise entrance locks built for 1 inch doors, which is the range that suits iron work.

The Baldwin Estate 6320 is an entry-function mortise lock body with a 1 inch throw deadbolt, so it is not a privacy set. For bed and bath openings, the Cal-Royal NM8440 is a heavy duty Grade 1 privacy mortise lockset with a deadbolt for 1-3/4 inch doors, and the Hager 3840S of the 3800 Series is a privacy mortise lock with a 2-3/4 inch backset for doors 1-3/4 inch to 2 inch.

The Baldwin Estate 6320 is a mechanical entry mortise lock body operated by key and handleset. For keyless entry, the Alarm Lock DL3500CR Trilogy is a Grade 1 electronic mortise lock with 300 user codes in a classroom function for 1-5/8 inch to 1-7/8 inch doors, and the Alarm Lock DL4500 is a Grade 1 electronic mortise deadbolt with 2,000 user codes and a privacy keypad over the same thickness range. For credential-based access, the TownSteel FME-2000 is a Grade 1 heavy duty mortise lockset with RFID for 1-3/4 inch doors, and the Dormakaba LX-I-M002 Saffire is an RFID mortise lockset with BLE mobile access at BHMA Grade 2.

The Baldwin Estate 6320 combines a latch and a 1 inch throw deadbolt in one entry mortise body with a 1-1/4 inch by 8 inch faceplate. If the opening only needs a bolt, the Sargent 4874 is a double cylinder mortise deadbolt with a 2-3/4 inch backset in the 4870 Series, and the Kaba Ilco 185 Series mortise lock is a deadbolt function supplied with no handing.

The Baldwin Estate 6320 mortise lock body is supplied left hand across its Lifetime Brass, Lifetime PVD Satin Nickel, and Oil Rubbed Bronze finishes, so handing is fixed at order. If you need to set handing on site, the BEST 45H Series heavy duty mortise lock body in a public entrance function is field reversible, as is the Falcon MA101 Grade 1 heavy duty mortise passage lock. The Kaba Ilco 185 Series mortise lock is supplied with no handing at all.

The Baldwin Estate 6320 is an entry function, so the outside trim unlocks with the key or from inside. For a true storeroom opening, the Accentra 8805FL of the 8800 Series is a Grade 1 storeroom mortise lock with an Arcadia lever, and the Cal-Royal NM8080 is a heavy duty Grade 1 storeroom mortise lockset with an interchangeable core option for 1-3/4 inch doors.

Three: 003 Lifetime Brass, 056 Lifetime PVD Satin Nickel, and 102 Oil Rubbed Bronze. If you are matching other Estate hardware in a house, pick the body finish to match the handleset and lever trim you are running on the rest of the doors, since the exposed faceplate will show on the door edge.
